B. Port
Select the communication port type for the PTZ camera controller (RS232/485). This is the external port used to connect
to the camera.
C. Baud Rate
Select the baud rate to match the baud rate of the PTZ camera. (150 – 115200 bps)
D. Address
Set the numerical address ID to match the ID of PTZ camera (0~254)
E. Pan speed:
Set the desired pan speed of PTZ camera (0~63)
F. Tilt speed:
Set the desired tilt speed of PTZ camera (0~63)
G. Set position
Set and save preset position number (1~128),
H. Call position
Call the previously saved preset position number (1~128)
For all settings, once set click "OK" to save,
TIP: You can call up the OSD menu on most SecurityTronix PTZ cameras' with Call Position 95.
Double check the protocol, address, interface and baud rate. All must be consistent with the PTZ camera or it will not
properly communicate.
Using the touch screen to control PTZ camera movement:
Tap left, right, upward or downward on the video image to move the PTZ camera in a desired direction. Stretch two
fingers outward or inward on the touch screen to zoom the image in or out.

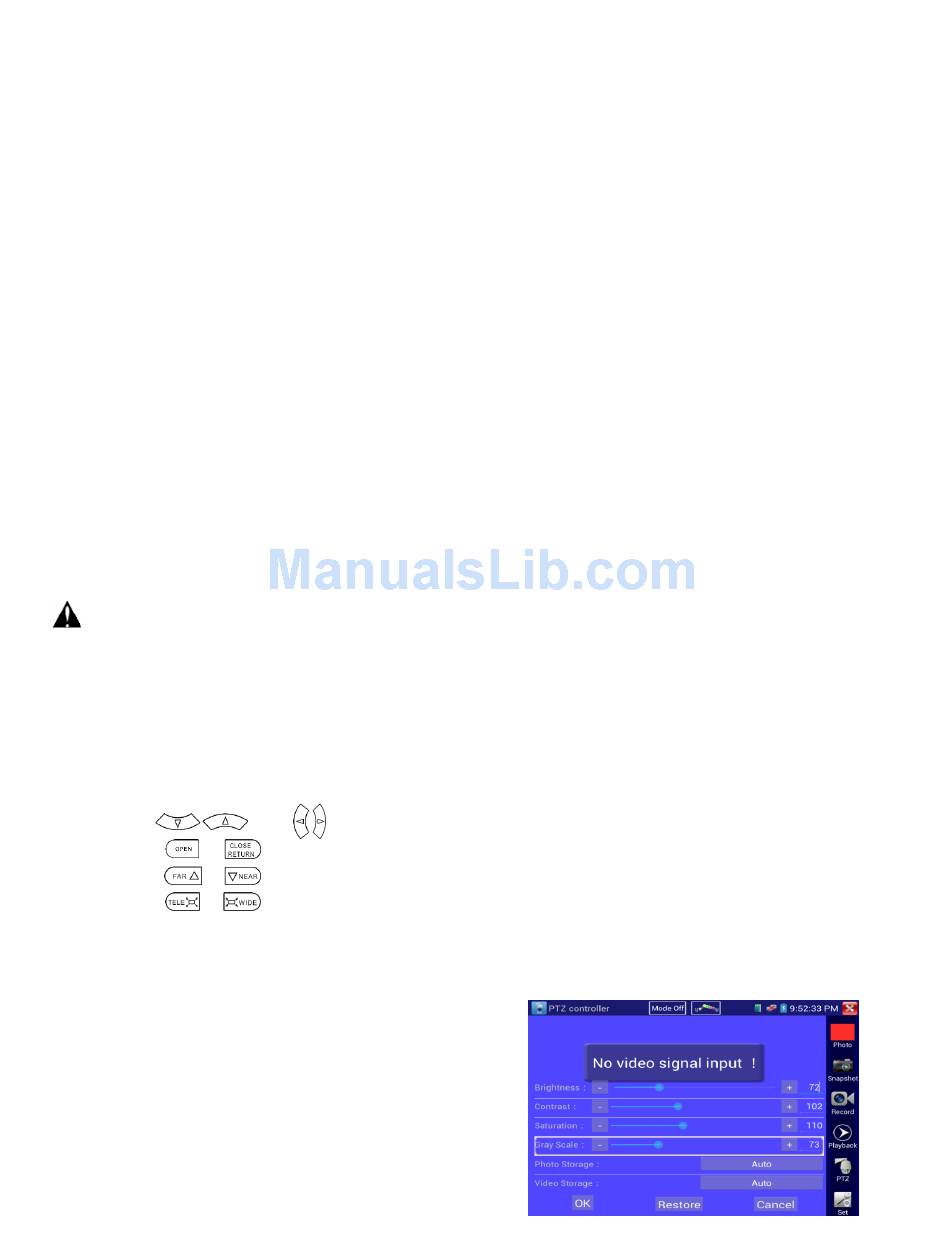

PTZ Control：
The keys or
The keys or
The keys or
The keys or
(2) Video and storage settings
Click the "Set" icon to enter the mode for setting analog video image brightness, contrast and color saturation. You can
also set a file storage location after taking a snapshot or making a
Recording.
When selecting to store a file you can manually name the file.
control the pan and tilt direction
controls opening and closing the iris manually
adjusts the focus manually
manual zoom control
