2.3 HIPOT (Dielectric Strength) Testing

HIPOT (Dielectric Strength) Testing

Disconnect Braided Cable (1) and Braided Cable (2) during

Braided Cable

Power Supply

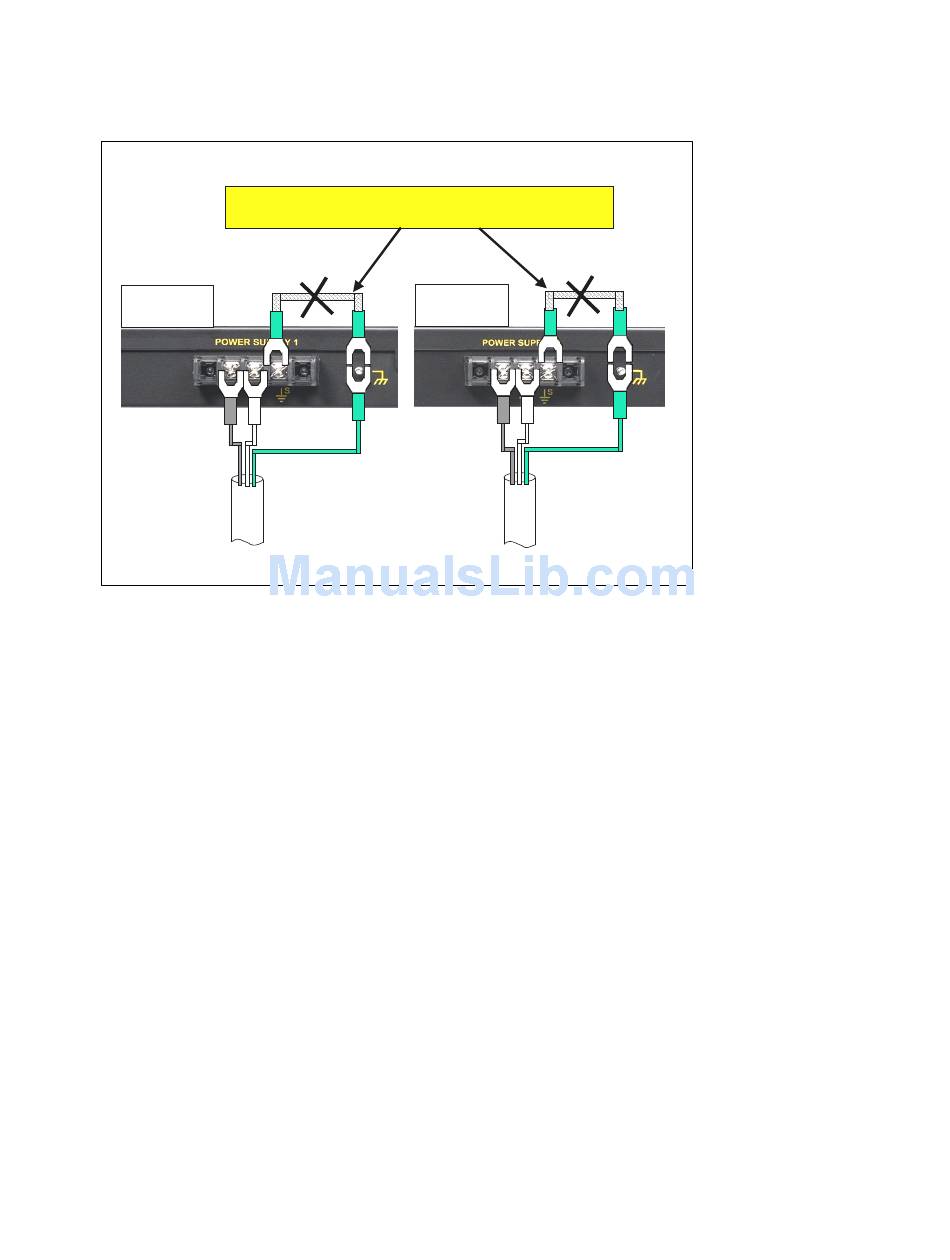

Fig. 2.3.1 HIPOT (Dielectric Strength) Testing

NOTE: Units which are to be "HIPOT" tested in the field must have the braided ground cable(s)

disconnected (see Fig. 2.3.1) during the HIPOT test. This is required in order to prevent the

transient/surge suppression circuitry, which is connected to Surge Ground (see Fig. 2.2.1), from

being activated during the HIPOT test.

HIPOT (dielectric strength) testing!

(1)

Power Supply

(2)

Braided Cable

Rev104
