1.5 RS1600F Front Panel Description

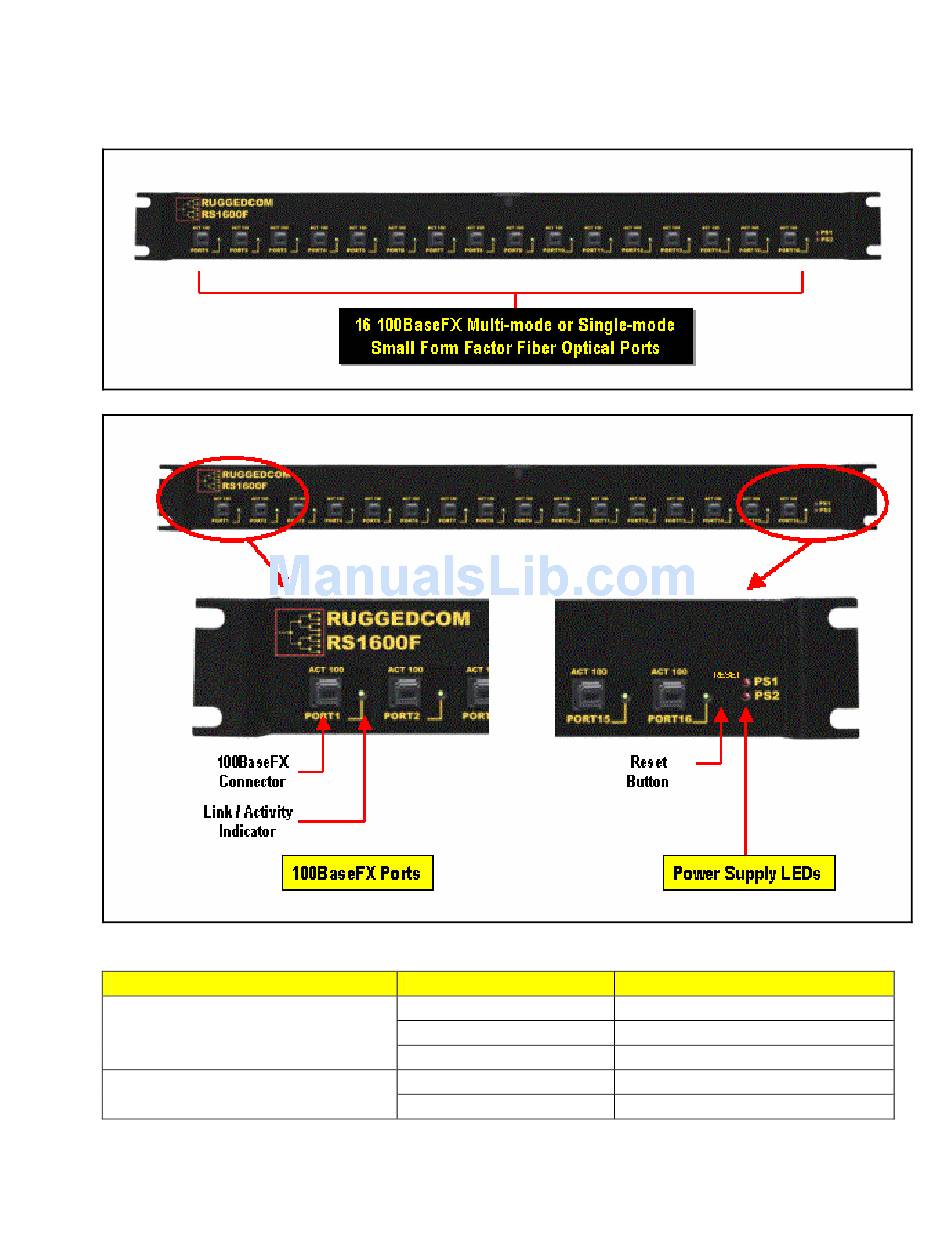

Fig 1.5.1 RS1600F Front Panel Detail
ITEM
Ports 1 – 16
Link/Activity LEDs
PS1 – PS2 LED
©
2008 RuggedCom Inc. All rights reserved
ACTIVITY
On
Blinking
Off
On
Off
8
COMMENTS
Link Established
Activity
No Link Established
Power Supply ON
Power Supply OFF
Rev104
