2.2.3 Single Power Supply – DC Input

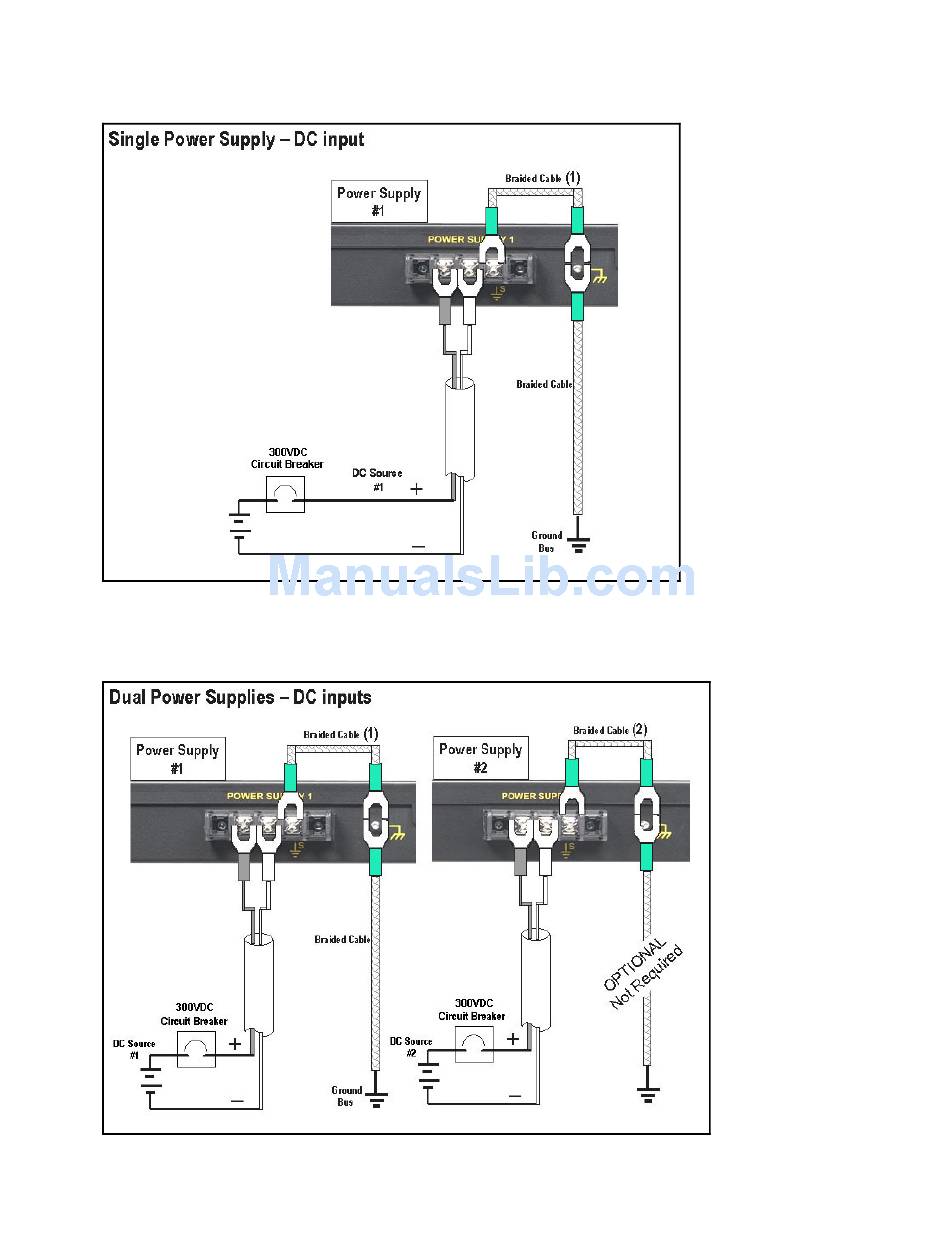

Fig. 2.2.4 Single Power Supply – DC Input
2.2.4 Dual Power Supplies – DC Inputs
Fig. 2.2.5 Dual Power Supplies – DC Inputs
