1.3 RS1600 Front Panel Description

Rx = Receive Port
Tx = Transmit Port
Link/Activity LED
10BaseFL Ports

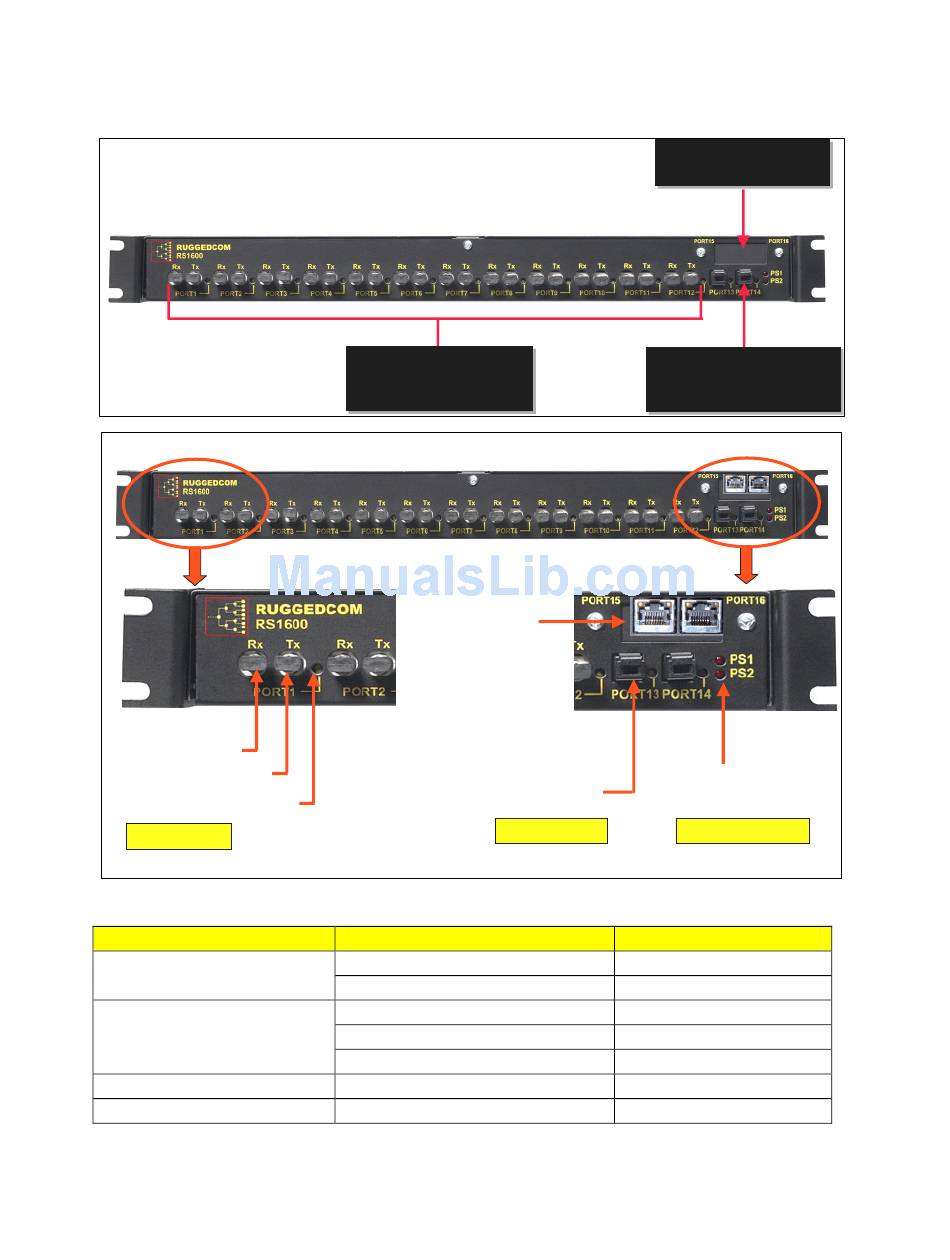

Fig. 1.3.1 RS1600 Front Panel Detail
ITEM
Port(1-14)
Link/Activity LED
Optional RJ45 Ports (15-16)
Link/Activity LEDs
PS1 LED
PS2 LED
©
2008 RuggedCom Inc. All rights reserved
12 - 10BaseFL Ports
12 - 10BaseFL Ports
820nm, 2km, Multimode,
820nm, 2km, Multimode,
ST Connectors
ST Connectors
10/100BaseTX
RJ45 Ports
Option
100BaseFX Port
MTRJ Connector
100BaseFX Ports
Activity
Solid
Blinking – Once per second
Active Right LED
Active Left LED
Inactive Left LED
Solid
Solid
5
2 – 10/100BaseTX Ports
2 – 10/100BaseTX Ports
RJ45 Connectors
RJ45 Connectors
2 - 100BaseFX Ports
2 - 100BaseFX Ports
1300nm, 2km, Multimode,
1300nm, 2km, Multimode,
MTRJ Connector
MTRJ Connector
PS1 = Power Supply #1
PS2 = Power Supply #2
Power Supply LEDs
Comments
Link Established
Tx, Rx Activity
Link Established
100BaseT Link
10BaseT Link
Power Supply 1 ON
Power Supply 2 ON
Rev104
