2.4 Failsafe Output Wiring and Specifications

The "Failsafe" output relay is provided to signal critical error conditions that may occur on the

RS1600 series switches. The contacts are energized upon power up of the unit and remain

energized until a critical error occurs. One common application for this output, regardless of

whether the switch is managed or unmanaged, is to signal an alarm if a power failure or removal of

control power occurs.

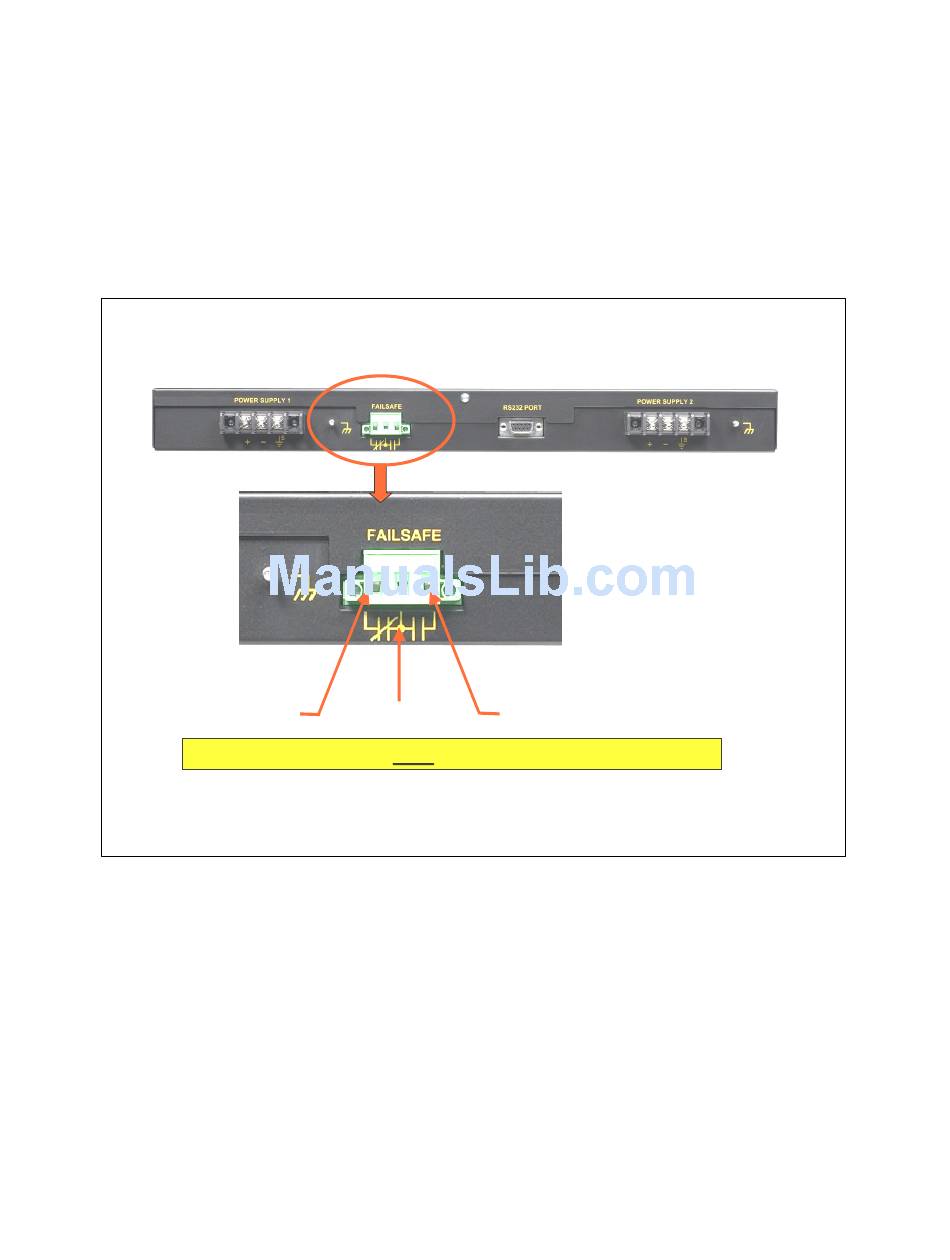

RS1600 Failsafe Relay Outputs

Normally Closed

*** Normal contact state prior to power being applied to unit. ***

Fig. 2.4.1 Failsafe Output Relay

Common

Normally Open

Rev104
