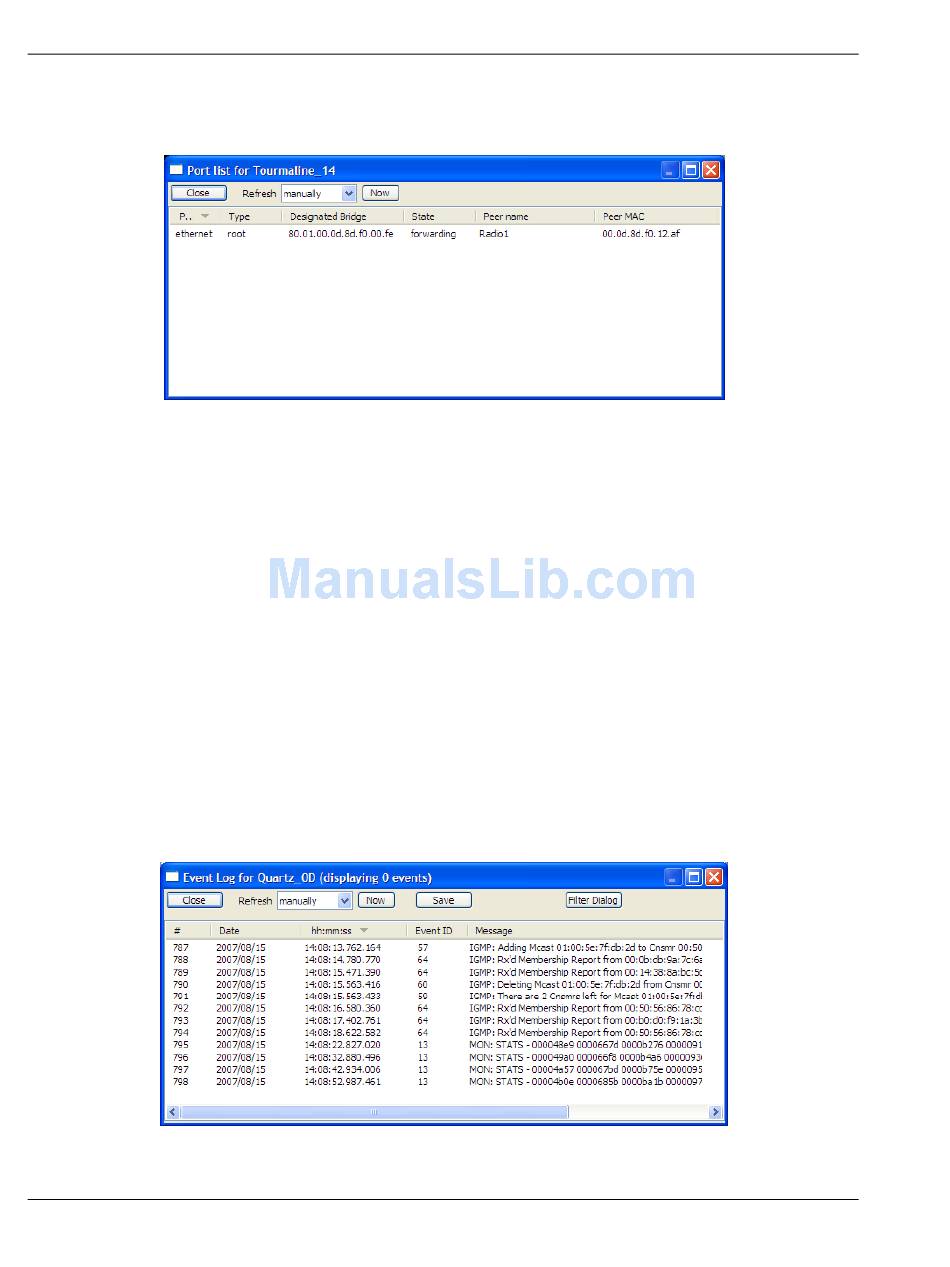

7.4.4 Port Table

This dialog box opens when Port Table is selected from the AP Dialogs menu.
The port table is a list of all the active ports on the radio. This list shows the same
information as the Port status (page 58) list in the Radio Configuration /
Diagnostic Utility. Each radio can have up to 34 active ports—one Ethernet
cable, one parent RF link, and up to 32 child RF links.

7.4.5 All 4 Dialogs

This menu entry simply opens all four "list" dialogs (Scan, Port, Ethernet node,
and Client.) The dialogs open on top of each other. Drag the windows to view
them completely.

7.4.6 Close All

This entry closes all "list" dialogs that are currently open.

7.4.7 Event Log

The event log allows the extraction of a log from the selected radio. The log
shows a history of the radio. The event log can be saved to a file for
troubleshooting purposes.
