1.2.3 Antenna Ports

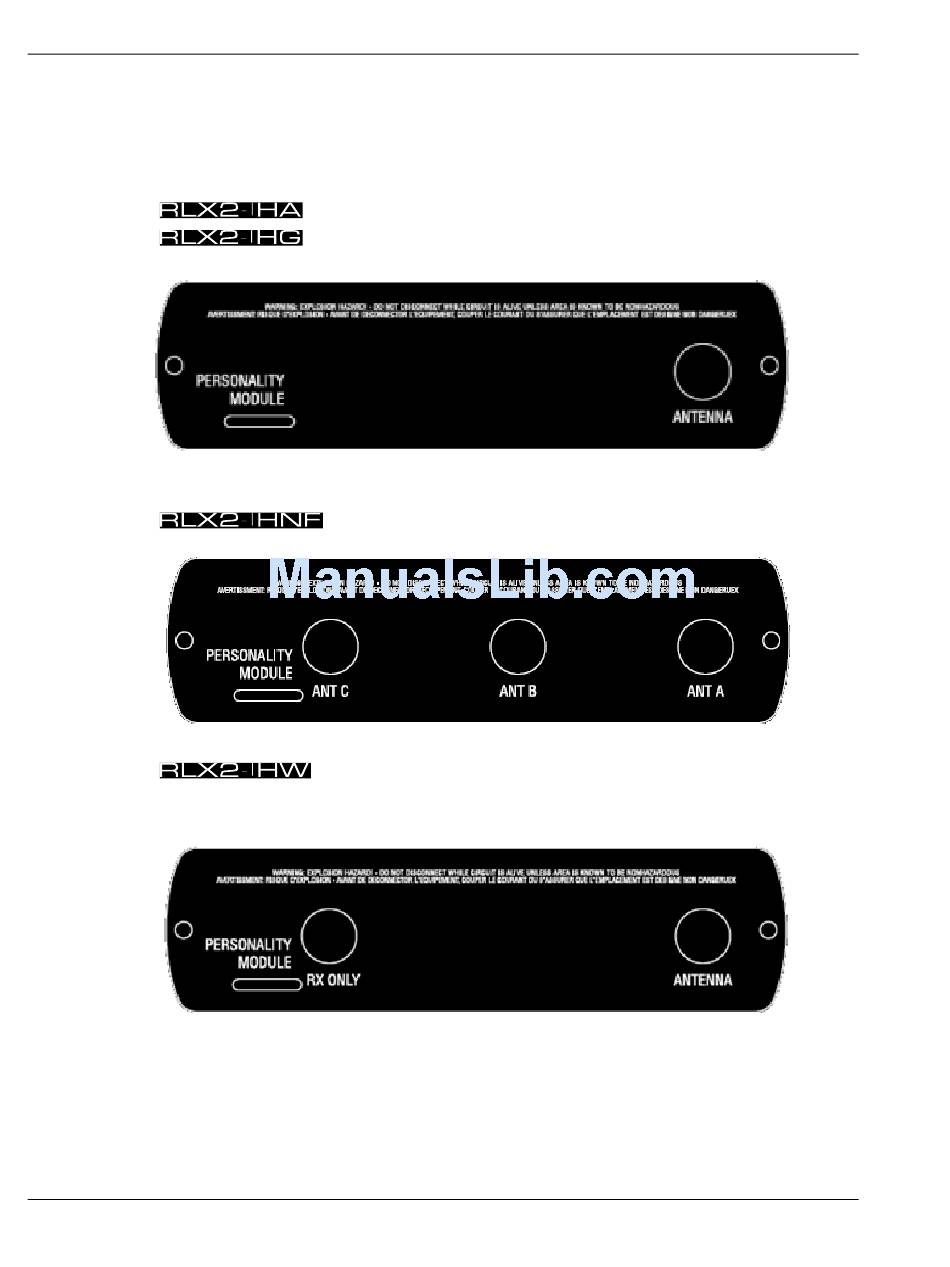

Each RLX2 series radio has active antenna connectors on the top as shown
below:
These radios have a single active antenna port:
This radio has three active antenna ports:
This radio uses the right-side antenna port for transmit and receive. An
optional receive-only antenna can be attached to the left-side antenna
port to improve performance in some applications.
Page 14 of 161
RLX2 Series ♦ 802.11a, b, g, n
Industrial Hotspot
ProSoft Technology, Inc.
May 8, 2013
