Reference
User Manual

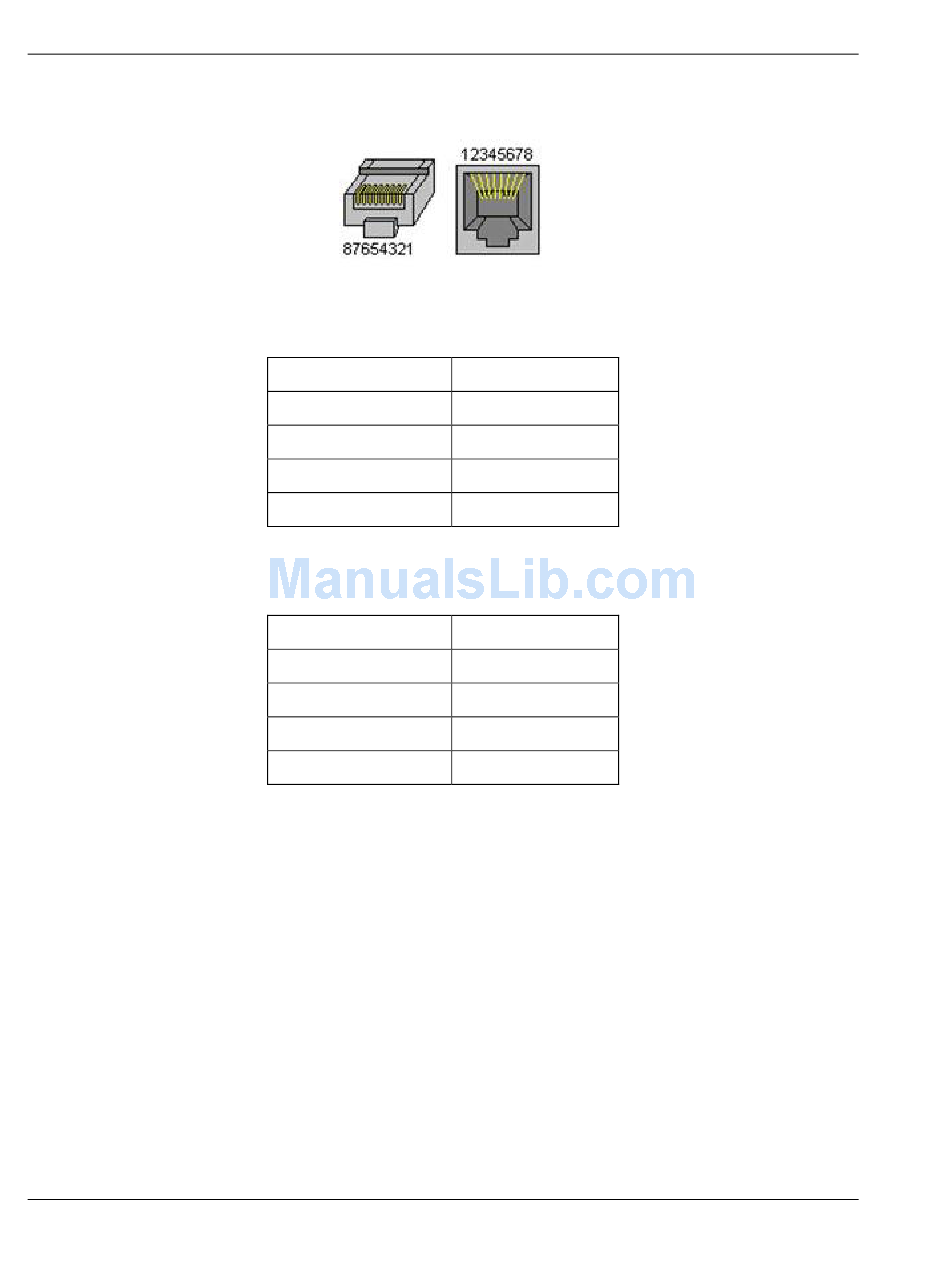

8.5.3 Ethernet Cable Configuration
Page 126 of 161
Straight-Though Cable
RJ-45 Pin
1 Rx+
2 Rx-
3 Tx+
6 Tx-
Crossover Cable
RJ-45 Pin
1 Rx+
2 Rx-
3 Tx+
6 Tx-
RLX2 Series ♦ 802.11a, b, g, n
RJ-45 Pin
1 Tx+
2 Tx-
3 Rx+
6 Rx-
RJ-45 Pin
3 Tx+
6 Tx-
1 Rx+
2 Rx-
ProSoft Technology, Inc.
Industrial Hotspot
May 8, 2013
