6.2.6 Serial Port Settings

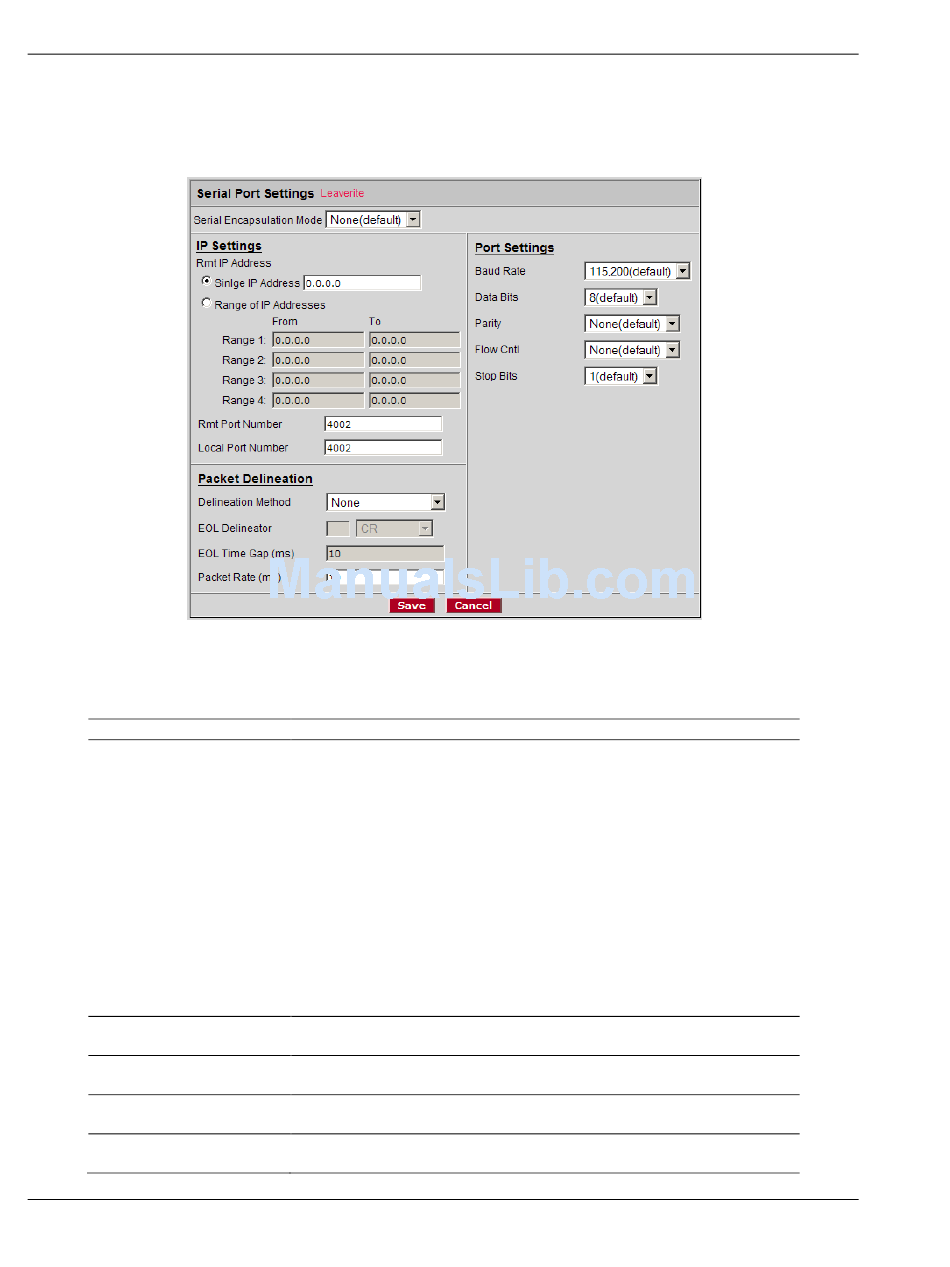

This configuration page opens when the Serial Port Settings button is clicked on
the Radio Configuration form.
Use this page to configure the way serial data packets are encapsulated and
transmitted over an Ethernet network.
Field
Serial Encapsulation
Mode
Single IP Address
Range of IP Addresses
Remote Port Number
Local Port Number
Page 78 of 161
Description
None: No serial data encapsulation.
UDP: In UDP mode, programs on networked computers can be used
to send short messages or Datagrams. Once enabled, the serial port
will be used to transmit and receive packets.
NOTE: In UDP mode if a multicast group address is entered in this
field then packets are sent to that address.
TCP Server: In TCP Server mode, only connections from this address
will be accepted. Once the session is established, the serial port is
enabled to transmit and receive packets.
NOTE: To accept connections from any IP address the field should be
set to 0.0.0.0.
TCP Client: In TCP Client mode, a TCP connection will be established
with this address.
When the session is established, the serial port is enabled to transmit
and receive packets.
IP Address or URL of the radio that should receive encapsulated serial
protocol packets.
Up to 4 IP Address ranges for radios that should receive encapsulated
serial protocol packets.
Remote UDP port number to use for encapsulated serial data
transmission.
Local UDP port number to use for encapsulated serial data
transmission.
