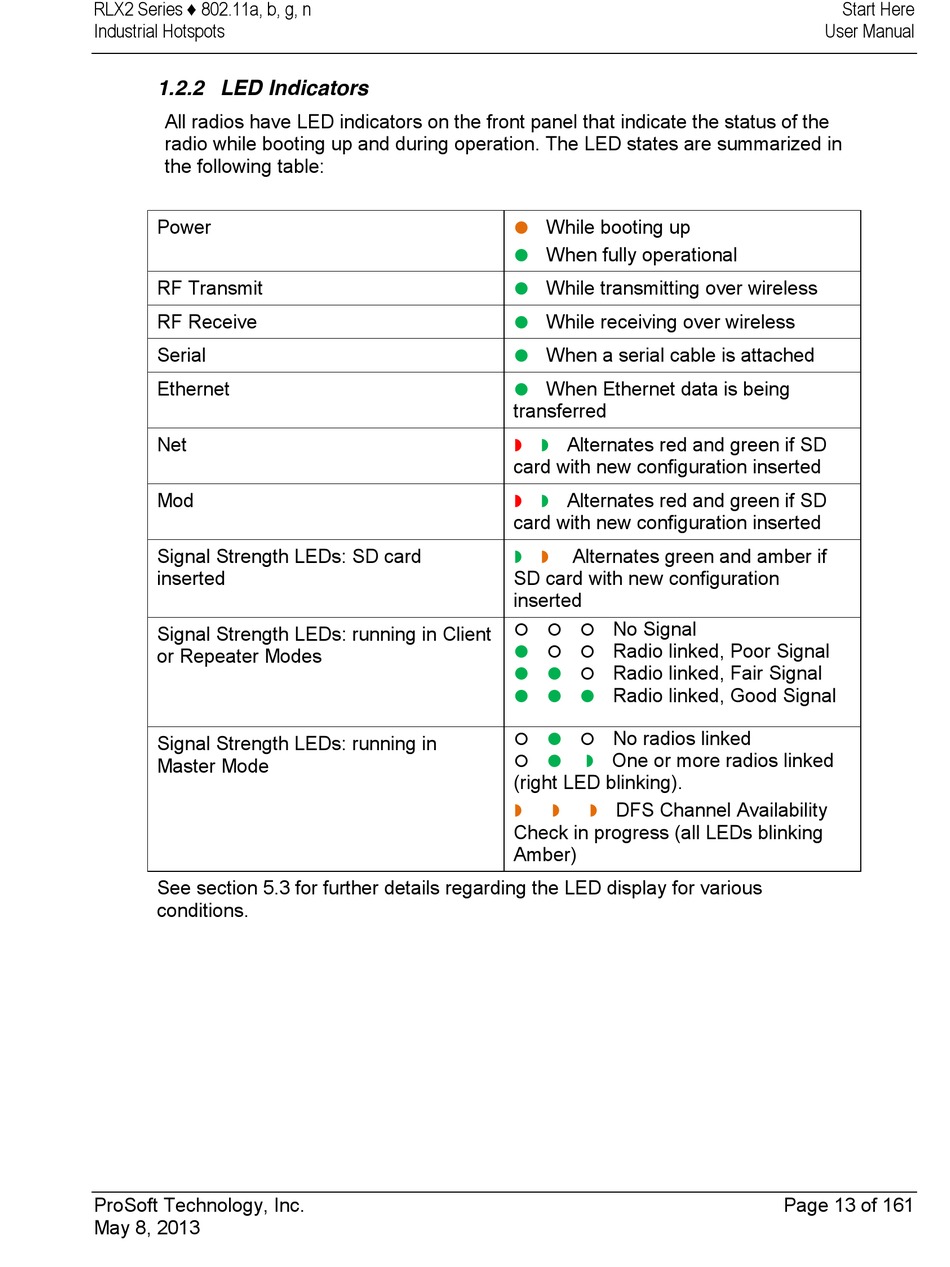

1.2.2 LED Indicators

All radios have LED indicators on the front panel that indicate the status of the
radio while booting up and during operation. The LED states are summarized in
the following table:
Power
RF Transmit
RF Receive
Serial
Ethernet
Net
Mod
Signal Strength LEDs: SD card
inserted
Signal Strength LEDs: running in Client
or Repeater Modes
Signal Strength LEDs: running in
Master Mode
See section 5.3 for further details regarding the LED display for various
conditions.
ProSoft Technology, Inc.
May 8, 2013
While booting up

When fully operational

While transmitting over wireless

While receiving over wireless

When a serial cable is attached

When Ethernet data is being

transferred
Alternates red and green if SD

card with new configuration inserted
Alternates red and green if SD

card with new configuration inserted
Alternates green and amber if

SD card with new configuration
inserted

No Signal

Radio linked, Poor Signal

Radio linked, Fair Signal

Radio linked, Good Signal

No radios linked

One or more radios linked
 
(right LED blinking).
DFS Channel Availability
  
Check in progress (all LEDs blinking
Amber)
