RLX2 Quick Setup
User Manual

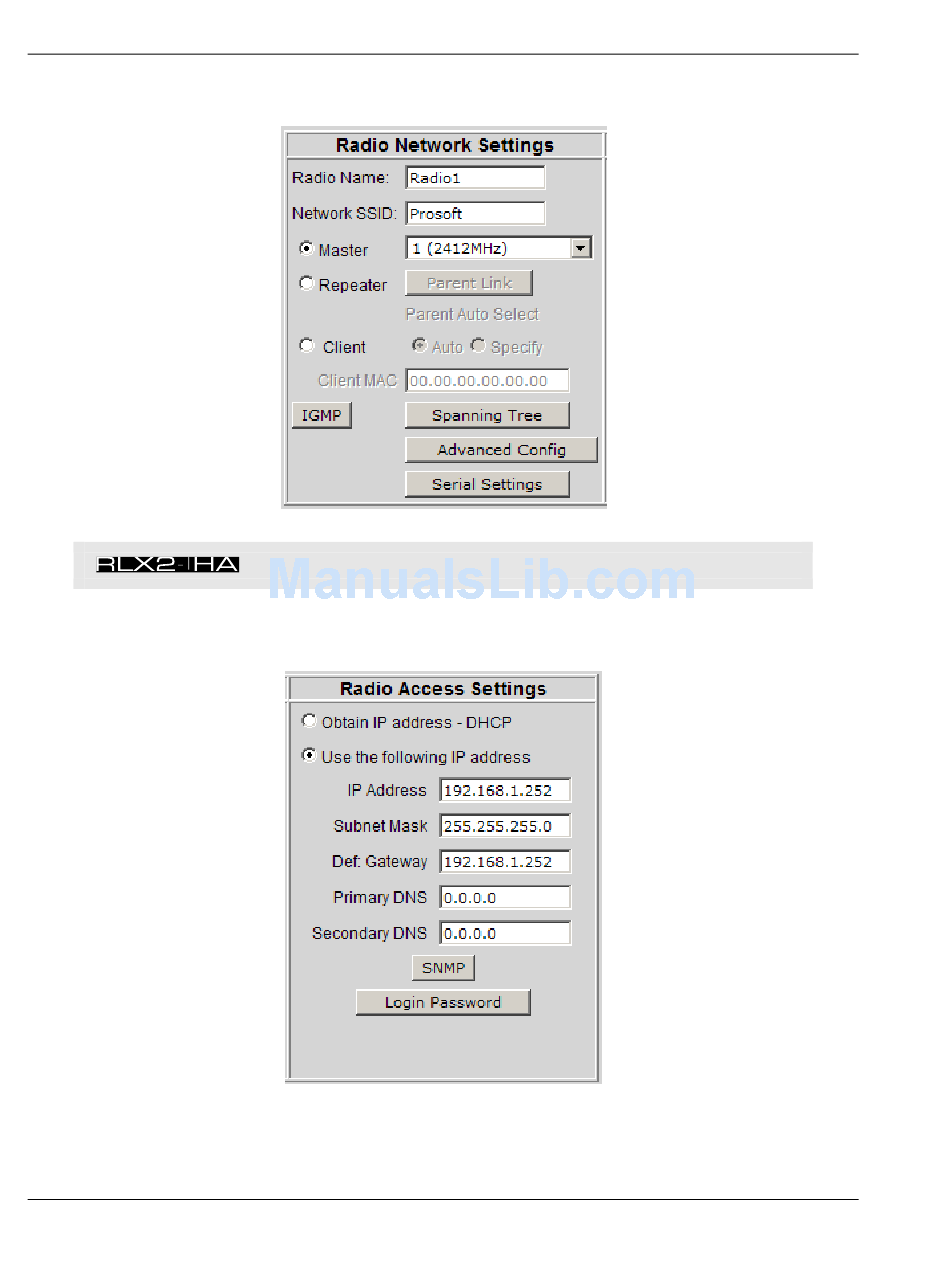

11. Select the Master radio button and select Channel 1 (2412 MHz) as shown
below.
12. If the IP address is manually set in steps five and six above, permanently set the
IP address by selecting the Use the following IP address radio button:
Page 26 of 161
Note: If the Master radio is an RLX2-IHA, select Channel 36 (5180 MHz).
RLX2 Series ♦ 802.11a, b, g, n
Industrial Hotspot
ProSoft Technology, Inc.
May 8, 2013
