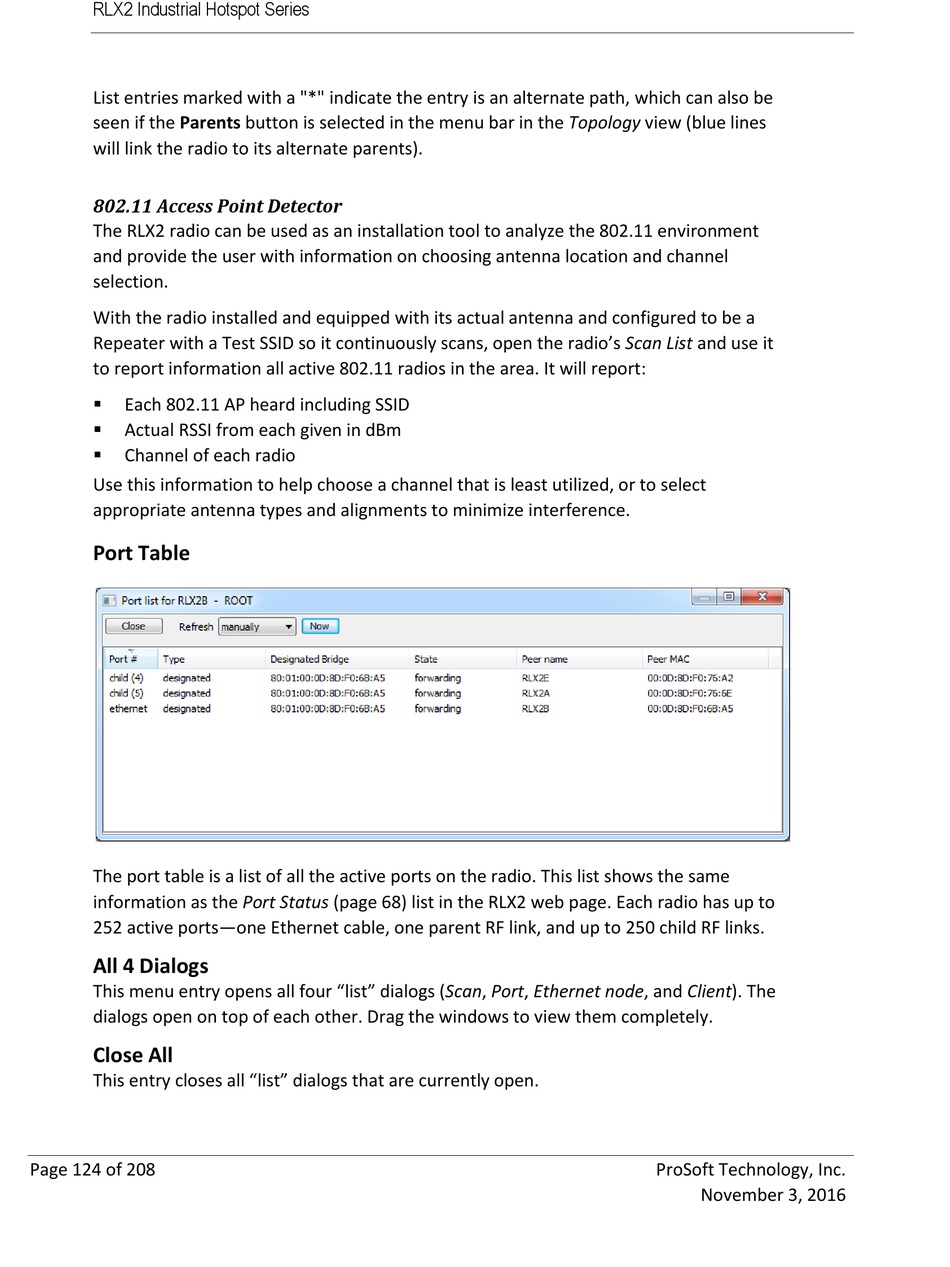

802.11 Access Point Detector; Port Table; All 4 Dialogs; Close All - ProSoft Technology RLX2-IHW User Manual

RLX2 Industrial Hotspot Series
List entries marked with a "*" indicate the entry is an alternate path, which can also be
seen if the Parents button is selected in the menu bar in the Topology view (blue lines
will link the radio to its alternate parents).

802.11 Access Point Detector

The RLX2 radio can be used as an installation tool to analyze the 802.11 environment
and provide the user with information on choosing antenna location and channel
selection.
With the radio installed and equipped with its actual antenna and configured to be a
Repeater with a Test SSID so it continuously scans, open the radio's Scan List and use it
to report information all active 802.11 radios in the area. It will report:

Each 802.11 AP heard including SSID

Actual RSSI from each given in dBm

Channel of each radio
Use this information to help choose a channel that is least utilized, or to select
appropriate antenna types and alignments to minimize interference.

Port Table

The port table is a list of all the active ports on the radio. This list shows the same
information as the Port Status (page 68) list in the RLX2 web page. Each radio has up to
252 active ports—one Ethernet cable, one parent RF link, and up to 250 child RF links.

All 4 Dialogs

This menu entry opens all four "list" dialogs (Scan, Port, Ethernet node, and Client). The
dialogs open on top of each other. Drag the windows to view them completely.

Close All

This entry closes all "list" dialogs that are currently open.
