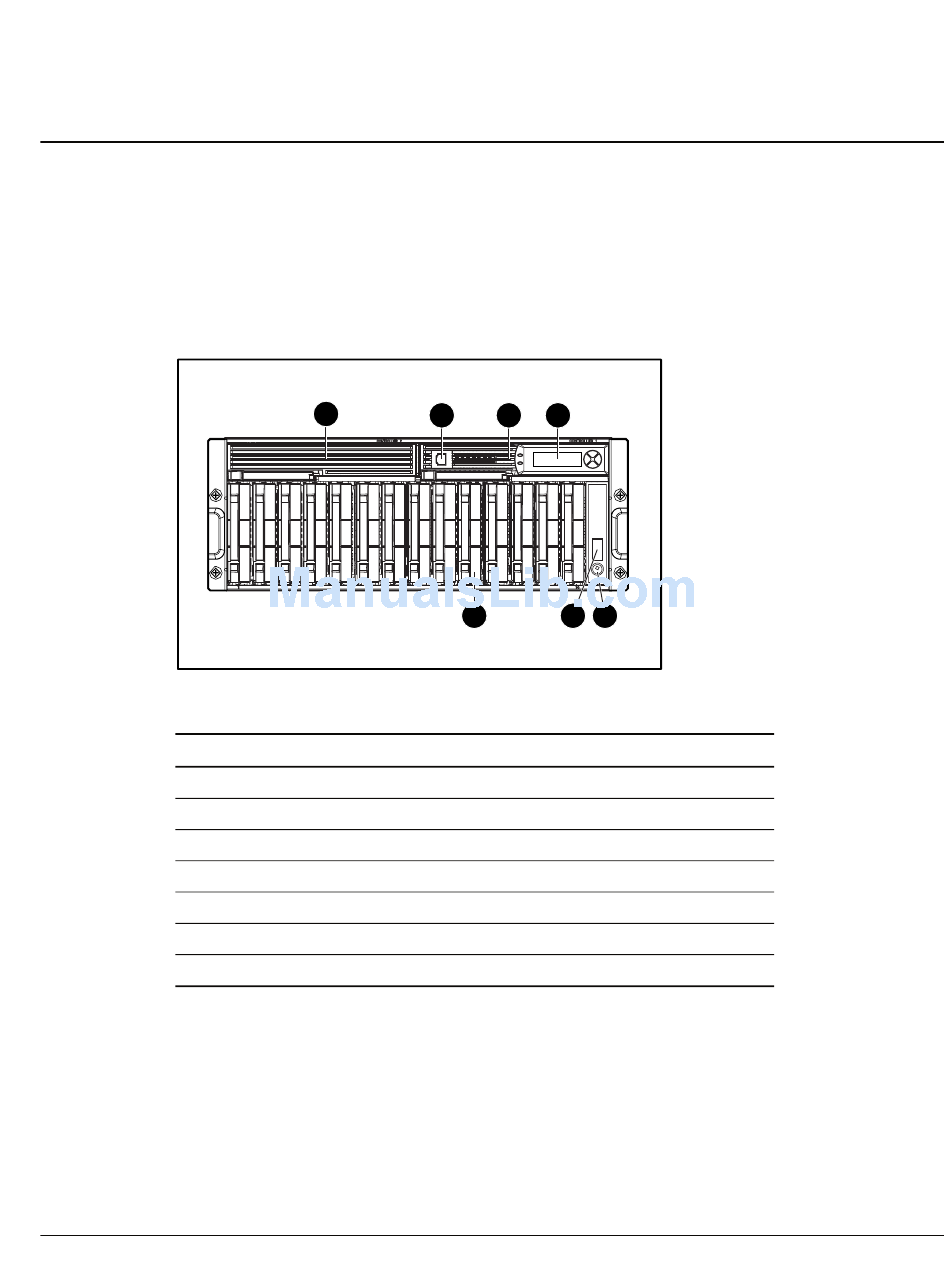

Front Panel Components

Table 4-1: Front Panel Components
Item
1
2
3
4
5
6
7
HP StorageWorks Modular Smart Array 500 System Maintenance and Service Guide
HP CONFIDENTIAL Codename: Aurora Part Number: 251850-004 Last Saved On: 9/19/03 11:00 AM
1
2
Description
Bezel blank (bay for optional redundant controller)
Service port (for HP service technicians only)
Hot-plug MSA500 controller
Controller display
Power On/Standby button
Enclosure LEDs (refer to Table 4-2)
Hot-plug SCSI hard drive bays with blanks

Component Identification

3 4
7 6 5
4
4-1
