Removal and Replacement Procedures

System Power Down

IMPORTANT: If installing a hot-plug device, it is not necessary to power down the system.
To power down the system:
1. Power down any attached servers. Refer to the server documentation.
2. Press the Power On/Standby button. Wait for the system power LED to go from green to
off.
3. Disconnect the power cords.

Hard Drive Blank

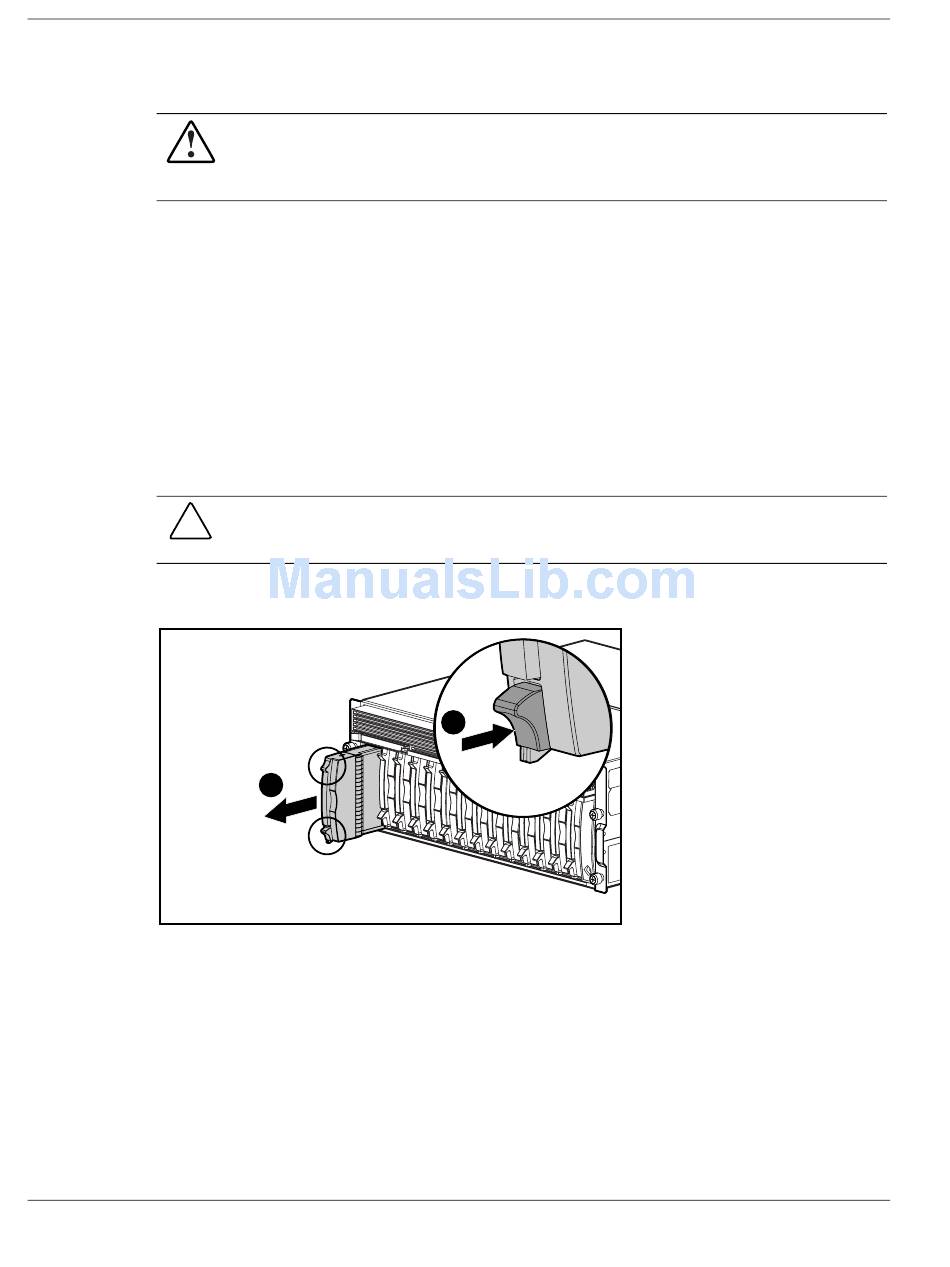

To remove the component:
To replace a blank, slide the blank into the bay until it locks into place.
2-4
HP CONFIDENTIAL Codename: Aurora Part Number: 251850-004 Last Saved On: 9/19/03 10:57 AM
WARNING: To reduce the risk of personal injury, electric shock, or damage to the
equipment, remove the power cord to remove power from the system. The front panel
Power On/Standby button does not completely shut off system power. Portions of the
power supply and some internal circuitry remain active until AC power is removed.
CAUTION: Always populate drive bays with either a hard drive or blank. Proper airflow can
only be maintained when the bays are populated. Operating the system with unpopulated
drive bays can lead to improper cooling and thermal damage.
2
HP StorageWorks Modular Smart Array 500 System Maintenance and Service Guide
1
