Removal and Replacement Procedures
2-Port and 4-Port Shared Storage Modules
To remove the component:
1. Power down the system. Refer to "System Power Down" in this chapter.
2. Disconnect the SCSI cabling connected to the 2-Port Ultra3 SCSI I/O module.

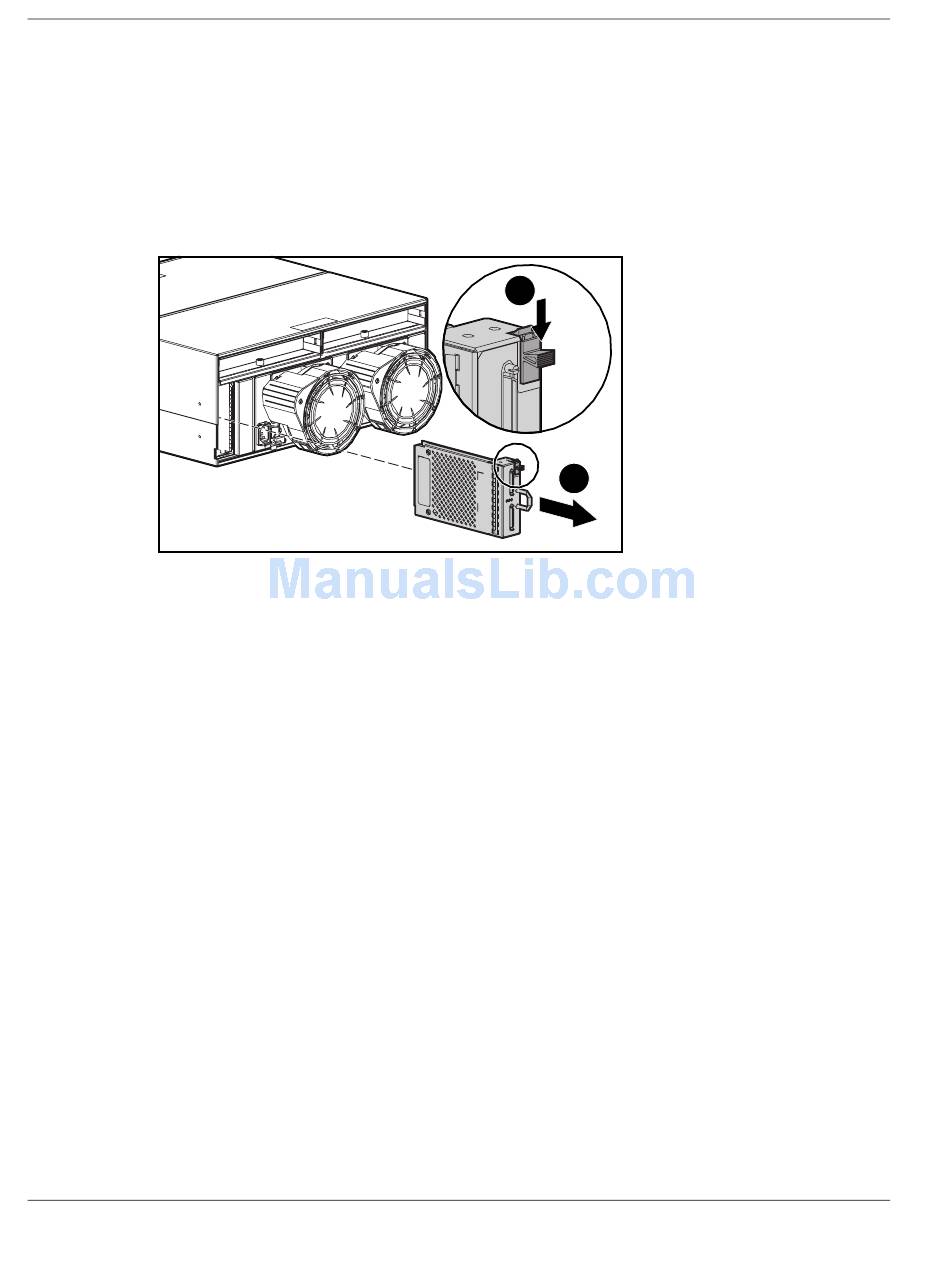

3. Remove the module.
To replace the component, reverse the removal procedure.
If you are replacing a failed 2-Port Shared Storage Module with a 4-Port Shared Storage
Module, refer to the 4-Port Shared Storage Module Installation Instructions that ship with
the option.
2-14
HP CONFIDENTIAL Codename: Aurora Part Number: 251850-004 Last Saved On: 9/19/03 10:57 AM
HP StorageWorks Modular Smart Array 500 System Maintenance and Service Guide
