1 Installing the Router
Warning
The electric current in power cables, telephone lines and communication cables is dangerous. To pre-
vent electric shocks, before installing, handling or opening the equipment covers, connect and discon-
nect the cables following the steps set forth in the following section.
To Connect
Make sure that the device power switch is in the OFF po-
sition.
Check that the power supply is not connected to the
mains or to the device.
Connect all data cables.
Connect the power supply to the device.
Connect the power supply to the mains.
Turn the power switch ON.

1.2.1 Power Source Connection

The Teldat Connect-104 is powered with an external AC/DC source.
To avoid electric shocks, residual current circulation and any other unwanted effects that may disrupt communica-
tion, the following is recommended:
Warning
All interconnected communication devices should be plugged to THE SAME GROUNDED POWER
OUTLET, which should, at the same time, be of good quality (lower than 10 ohms).
Whether the workplace is provided with an uninterrupted power supply system (UPS), regulated
supply, or it is independent from the rest (such as lighting, etc.), it is highly recommended that
all data devices should be connected to the same power source. This will avoid operating and
premature aging problems of drivers and other components. .

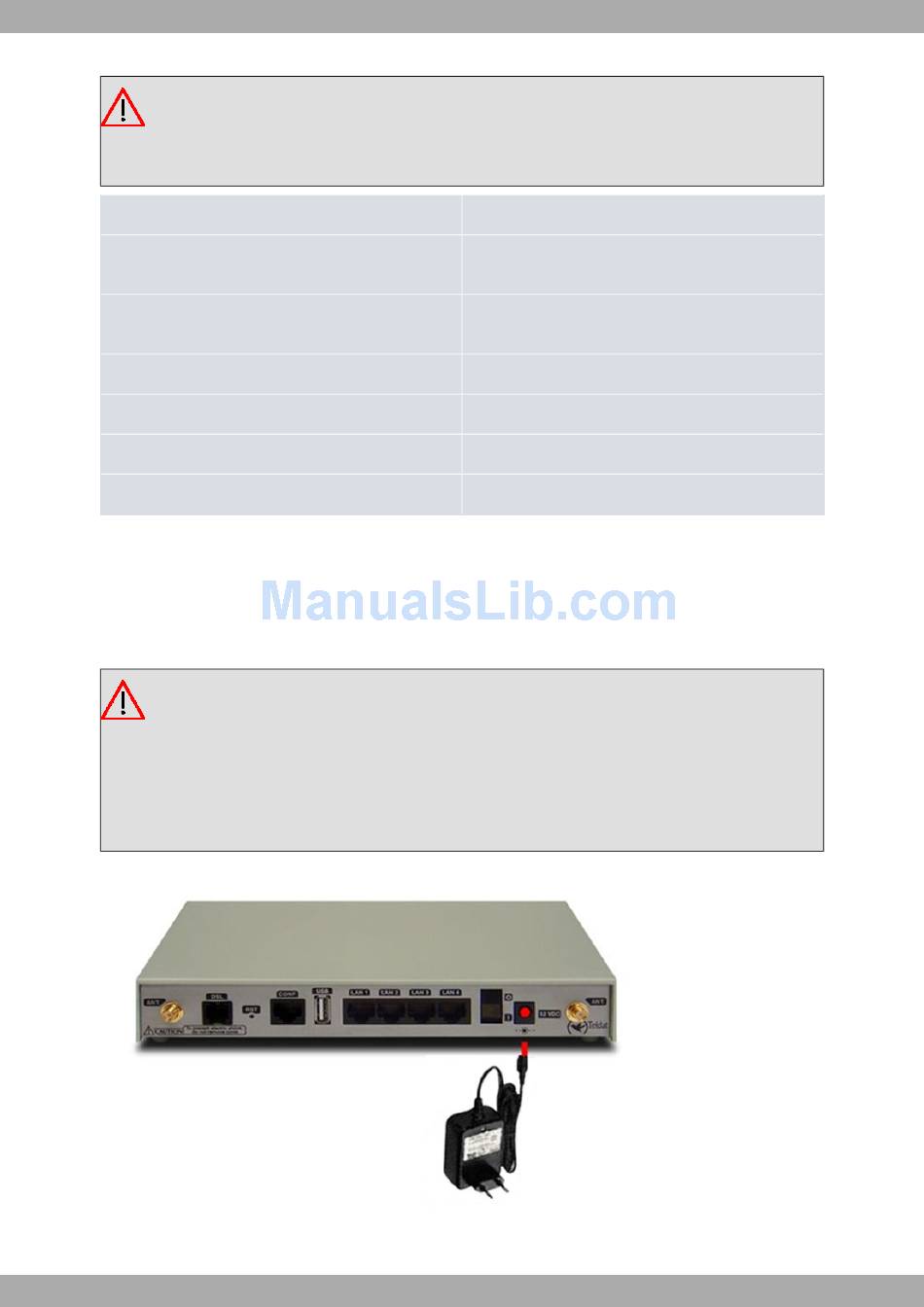

Fig. 4: Connecting the power with an external source
4
To Disconnect
Turn the power switch OFF.
Disconnect the power supply from the mains.
Disconnect the power supply from the device.
Disconnect the data cables.
