Specifications
HPT135 VHF Modem Specifications

Environmental Specifications

Communication Mode
Maximum Distance Range
Serial port
USB

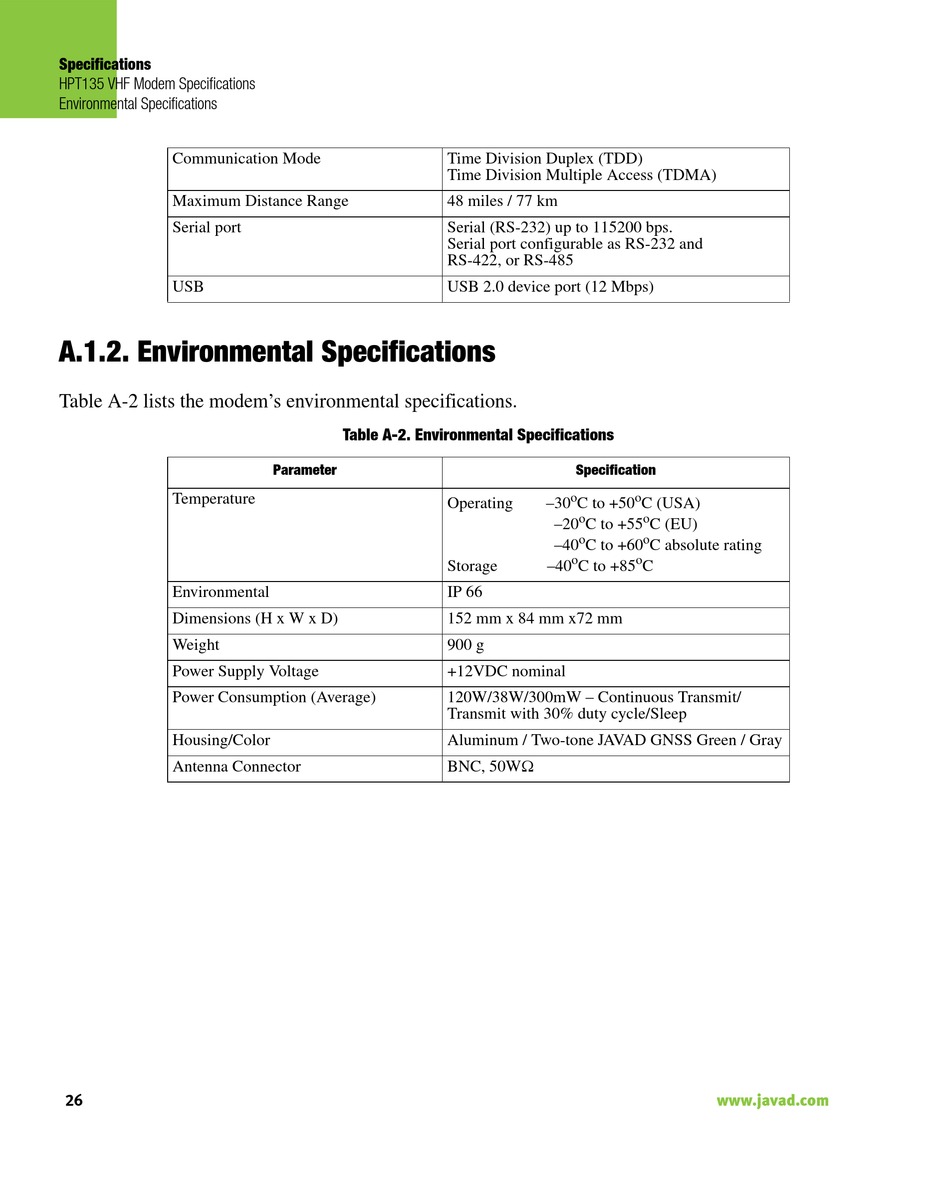

A.1.2. Environmental Specifications
Table A-2 lists the modem's environmental specifications.
Temperature
Environmental
Dimensions (H x W x D)
Weight
Power Supply Voltage
Power Consumption (Average)
Housing/Color
Antenna Connector
26
Time Division Duplex (TDD)
Time Division Multiple Access (TDMA)
48 miles / 77 km
Serial (RS-232) up to 115200 bps.
Serial port configurable as RS-232 and
RS-422, or RS-485
USB 2.0 device port (12 Mbps)
Table A-2. Environmental Specifications
Parameter
Operating
Storage
IP 66
152 mm x 84 mm x72 mm
900 g
+12VDC nominal
120W/38W/300mW – Continuous Transmit/
Transmit with 30% duty cycle/Sleep
Aluminum / Two-tone JAVAD GNSS Green / Gray
BNC, 50W
Specification
o o
–30 C to +50 C (USA)
o o
–20 C to +55 C (EU)
o o
–40 C to +60 C absolute rating
o o
–40 C to +85 C
