Operating Manual
OPTIMOD-PC
1101

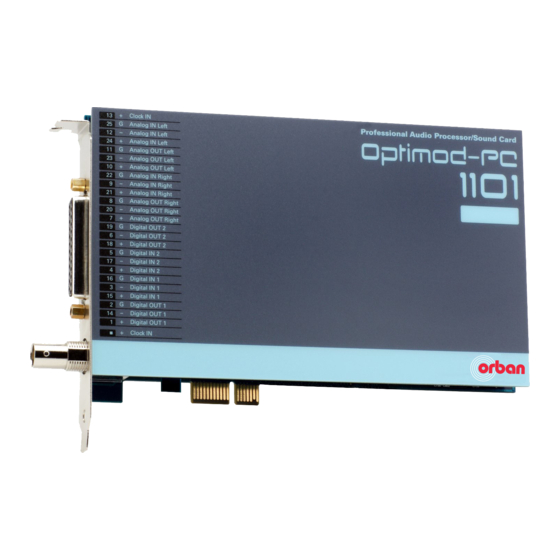

Digital Audio Processor PCI Sound Card
Manual for Software Version 3.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPTIMOD-PC 1101 and is the answer not in the manual?

Questions and answers

Related Manuals for Orban OPTIMOD-PC 1101

Summary of Contents for Orban OPTIMOD-PC 1101

  • Page 1 Operating Manual OPTIMOD-PC 1101 Digital Audio Processor PCI Sound Card Manual for Software Version 3.4...
  • Page 2 European Parliament, this product must not be discarded into the municipal waste stream in any of the Member States. This product may be sent back to your Orban dealer at end of life where it will be reused or recy- cled at no cost to you.

  • Page 3: Please Read Before Proceeding

    (2) Check the other sections of the Manual (consult the Table of Contents) and search the text to see if there might be some suggestions regarding your problem. (3) After reading the section on Factory Assistance, you may call Orban Customer Service for advice during normal Ari- zona business hours. The number is +1 480.403.8300.
  • Page 5 Operating Manual OPTIMOD-PC 1101 Digital Audio Processor PCI Sound Card Manual for Software Version 3.4...
  • Page 6 All trademarks are property of their respective companies. This manual for v 3.4.2 software was published October 2017. © Copyright Orban. This document may be freely printed and distributed by Orban’s customers, but its text may not be incorporated into derivative works.

  • Page 7: Table Of Contents

    NPUT UTPUT ONFIGURATION Figure 1-4: OPTIMOD-PC Signal Flow and I/O----------------------------------------------------- 1-19 Digital AES3 Left/Right Input/Output ------------------------------------------------------1-20 Analog Left/Right Input/Output -------------------------------------------------------------1-20 The Orban I/O Mixer -----------------------------------------------------------------------------1-21 OPTIMOD-PC I ----------------------------------------------------1-22 VERVIEW OF AN NSTALLATION Figure 1-5: Typical I/O mixer---------------------------------------------------------------------------- 1-24 Simple Operation in One Host Computer -------------------------------------------------1-25...
  • Page 8 Figure 2-2: Wiring Diagram for the 1101 OPTIMOD-PC XLR Cable Assembly------------- 2-5 Plan your installation. ---------------------------------------------------------------------------- 2-6 Figure 2-3: The Orban Control Application---------------------------------------------------------- 2-6 Connect hardware inputs and outputs. (optional) -------------------------------------- 2-6 Set up passwords and card names for cards in your computer. (optional) ------ 2-7 Figure 2-4: Card &...
  • Page 9 --------------------------------------------------------------------------------- 2-49 I can’t connect to a given OPTIMOD-PC card from my network. --------------------------- 2-49 Shortly after powering-up your computer and opening the Optimod-PC 1101 application, a message appears saying that the OptimodPC Service has stopped. --- 2-49 I get clicks when I source my WAVE material from a CD.
  • Page 10 Loudness incorrect compared to other Dolby Digital Transmissions ---------------------- 2-55 Loudness Controller reduces transient punch of programming ---------------------------- 2-55 Transient loudness events (like esses in speech) sound obtrusively loud----------------- 2-56 Commercials too loud in sound for picture applications -------------------------------------- 2-56 ------------------------------------------------------------------------------------ 2-56 ECHNICAL UPPORT...
  • Page 11 Table 3-3: Factory Programming Presets (Sound-for-picture)-------------------------------- 3-33 ----------------------------------------------------------------------------------3-35 QUALIZER ONTROLS Table 3-4: Equalizer Controls-------------------------------------------------------------------------- 3-37 -------------------------------------------------------------------------3-40 TEREO NHANCER ONTROLS Table 3-5: Stereo Enhancer Controls----------------------------------------------------------------- 3-40 AGC C -----------------------------------------------------------------------------------------3-41 ONTROLS Table 3-6: AGC Controls --------------------------------------------------------------------------------- 3-42 ----------------------------------------------------------------------------------3-46 ISTORTION ONTROL Figure 3-4: Bass Clipper Input/Output Transfer Curves as Bass Clip Shape Control is Varied from 0.0 (Hard) to 10.0 (Soft) ---------------------------------------------------------------- 3-47 Table 3-7: Distortion Control Adjustments -------------------------------------------------------- 3-48 ---------------------------------------------------------------------------3-49...
  • Page 12 Driver Files ----------------------------------------------------------------------------------------------------- 4-1 Driver ------------------------------------------------------------------------------------------------------------ 4-2 Service ----------------------------------------------------------------------------------------------------------- 4-2 Agent (Tray Icon) -------------------------------------------------------------------------------------------- 4-2 Control Application ----------------------------------------------------------------------------------------- 4-3 Registry --------------------------------------------------------------------------------------------------------- 4-3 Firmware ------------------------------------------------------------------------------------------------------- 4-3 Hardware I/O and PCI Expansion Chassis ------------------------------------------------------------- 4-3 OPTIMOD-PC D ----------------------------------------------------4-4 BOUT THE RIVER AND ERVICE ------------------------------------------------------------ SECTION 5 UNINSTALLATION...
  • Page 13 REGULATORY ------------------------------------------------------------------------------------------------- 7-6 ENVIRONMENTAL-------------------------------------------------------------------------------------------- 7-6 -------------------------------------------------------------------- SECTION 8 RESOURCES ------------------------------------------------------------------------------------------------------- 8-1 --------------------------------------------------------------------------------------------- 8-1 NFORMATION ------------------------------------------------------------------------------ 8-1 OOKS AND UBLICATIONS ----------------------------------------------------------------------------- 8-4 OFTWARE AND ESOURCES --------------------------------------------------------------------------- SECTION 9 INDEX ------------------------------------------------------------------------------------------------------- 9-1...

  • Page 15: Section 1 Introduction

    Audio Processing for Consistency Audio Processing: Making Broadcasts/Netcasts Sound Professional From the ground up, OPTIMOD-PC 1101 was designed for professionals. It has broadcast-quality digital signal processing on-board that is suitable for both live streaming and on-demand programming. OPTIMOD-PC’s three on-board Freescale...
  • Page 16 INTRODUCTION ORBAN MODEL 1101 programming while ensuring that this texture is maintained throughout your pro- gramming. OPTIMOD-PC audio processing is appropriate for all digital transmission media and channels. It tailors your audio signal to help you compete in audio netcasting, HD Radio®...
  • Page 17 OPTIMOD-PC INTRODUCTION tightened; weak, thin bass is brought up; highs are always present and consistent in level. OPTIMOD-PC is also an excellent mastering processor, offering soft knee multiband compression with knee and ratio controls available separately for each band. This is followed by a low-IM look-ahead limiter that can typically achieve 12 dB of gain re- duction before it produces objectionable artifacts—this limiter is exceptionally loud and clean.

  • Page 18: Audio Processing For Netcasts

    INTRODUCTION ORBAN MODEL 1101 sound card combined with a bunch of external hardware. For applications like commercial insertion, an API provides complete remote admini- stration over TCP/IP. The OPTIMOD-PC Service application hosts a TCP/IP terminal server to allow external control of the OPTIMOD-PC cards from either a Telnet/SSH client or a custom third party application.

  • Page 19: Controlling Program Levels In A Playout System Before Optimod-Pc

    OPTIMOD-PC uses look-ahead limiting to protect the follow- ing channel from peak overload. Orban’s PreCode™ technology manipulates several aspects of the audio to minimize artifacts caused by low bitrate codecs, ensuring consistent loudness and texture from one source to the next.

  • Page 20: Measuring Studio And Transmission Levels

    All of OPTIMOD-PC’s level meters are ab- solute peak sensing. Orban offers a free Loudness Meter application for Windows that incor- porates a true peak-sensing meter, a VU meter, a PPM, and two types of...

  • Page 21: Level And Subjective Loudness Metering In The 1101

    OPTIMOD-PC INTRODUCTION clip the audio. For line-up, the studio engineer uses a calibration tone at a studio standard level, commonly called line-up level, reference level, or operating level. Metering at the studio is by a VU meter or PPM. As discussed above, the VU or PPM indication under- indicates the true peak level.
  • Page 22 The CBS meter is a “short-term” Loudness Level meter that displays the details of moment-to-moment loudness with dynamics similar to a VU meter. Created using Orban-developed modeling software, the DSP im- plementation typically matches the original CBS analog meter within 0.5 dB on sinewaves, tone bursts and noise.
  • Page 23 OPTIMOD-PC INTRODUCTION tests whose goal was to model the loudness integration time constants of human hearing. These studies concentrated on the moderate sound lev- els typically preferred by people listening to broadcasts (60 to 80 phons and did not attempt to characterize loudness perception at very low and high levels.

  • Page 24: The Optimod-Pc Digital Audio Processor

    It is equally suitable for netcasts and digi- tal radio or television broadcasting. With its supplied WAVE drivers, it looks like a standard sound card to your native applications, like the Orban’s Opticodec-PC® MPEG-4 AAC/HE-AACv2 Streaming Encoder. However, unlike a sound card,...

  • Page 25: General Features

    In digital radio applications, if you wish to place level protection prior to your stu- dio/transmitter link (STL), use an Orban studio AGC like the Orban 8200ST. The 8200ST can be adjusted so that it substitutes for the broadband AGC function in OPTIMOD-PC, which is then defeated.
  • Page 26 FM radio. Because its processing topology is most effective with “flat media,” OPTIMOD-PC cannot provide extreme loudness for preemphasized radio channels. Use one of Orban’s Optimod-FM processors for this application. For analog television with FM aural carrier(s), use Optimod-TV 8382. •...
  • Page 27 OPTIMOD-PC’s inputs and outputs, and to and from the host computer’s WAVE audio. • MS Windows Mixer API support in parallel to the existing Orban Mixer allows standard Microsoft Windows audio applications to control Optimod PC’s inputs and outputs.

  • Page 28: Adaptability Through Multiple Audio Processing Structures

    An easy-to-use graphic control application runs on your PC and can act as a client to control any number of OPTIMOD-PC cards, either locally or in other PCs on your network via TCP/IP addressing. Other Orban software offers a server function, allowing other computers on your network to address cards located in your PC.
  • Page 29 • The 8500 provides two different stereo enhancement algorithms. The first is based on Orban’s patented analog 222 Stereo Enhancer, which increases the en- ergy in the stereo difference signal (L–R) whenever a transient is detected in the stereo sum signal (L+R). The second stereo enhancement algorithm passes the L–...

  • Page 30: Presets In Optimod

    The Loudness Controller uses the 1981 Jones & Torick algorithm developed at CBS Technology Center and further refined by Orban. • CBS Loudness Meter™ measures the subjective loudness of the 1101’s output and is displayed in the 1101’s control application meter window.

  • Page 31: User Processing Presets

    ORB11USER . The Factory preset remains unchanged. OPTIMOD-PC 1101 v1.0 is compatible with presets created by OPTIMOD- PC 1100 v2.0 or later. Because of the major structural changes in the DSP processing between OPTIMOD-PC 1100 version 1.x and version 2.x, user presets created under version 1.x cannot be loaded into OPTIMOD-PC...

  • Page 32: Input/Output Configuration

    The AES3 inputs and outputs and the analog input and output appear on a female DB-25 connector on the rear of the card (see Figure 2-2 on page 2-5). Orban offers three variations of an “umbilical” cable that plugs into the connector—one variation is terminated with XLR connectors, one is...
  • Page 33 1-19 OPTIMOD-PC INTRODUCTION OUTPUT LEVELS DIRECT MIXER 2 Direct Wave Out 1 Direct Wave Out 2 Analog IN 1 Direct Mixer Out 1 Direct Mixer Out 2 Process AGC Out Digital IN 1 Process Pre-Limit Out Process Post -Limit Out Analog Analog 1 Digital IN 2...

  • Page 34: Digital Aes3 Left/Right Input/Output

    1-20 INTRODUCTION ORBAN MODEL 1101 • Inputs and outputs passing through the computer’s PCI bus, using operating sys- tem multimedia sound drivers, such as Microsoft Windows DirectSound WDM WAVE drivers. The 1101 contains two logical sound cards, so there are two WAVE inputs and two WAVE outputs.

  • Page 35: The Orban I/O Mixer

    The I/O Mixer mixes and routes audio to and from the OPTIMOD-PC card. (See Figure 1-4 on page 1-19 and Figure 1-5: Typical I/O mixer on page 1-24.) You can open the Optimod PC Mixer from the Tools menu in the Orban Control applica- tion.

  • Page 36: Overview Of An Optimod-Pc Installation

    WAVE Out #2 going to the PC Overview of an OPTIMOD-PC Installation An OPTIMOD-PC 1101 card installs in a half-length (or larger) PCI slot in an IBM- compatible host computer or PCI expansion chassis. The computer’s PCI bus must be Plug &...
  • Page 37 OPTIMOD-PC is supported on Windows XP (SP2 or higher), Windows Vista (SP1 or higher), or Windows 7 computers. It is compatible with Windows 2000 (SP4 or higher) with limited features, but Orban does not support this platform. No other operating systems (such as Linux or Mac OS) will work.
  • Page 38 IRQs, so availability of IRQs will not usually be a problem. Although OPTIMOD-PC contains on-board DSP, the host’s CPU must still perform some “housekeeping” chores. It must run Orban’s server software, and, more signifi- cantly, it must do sample rate conversion if OPTIMOD-PC is used as a WAVE device and the source or destination sample rates are different from 48 kHz.

  • Page 39: Simple Operation In One Host Computer

    Unless networking is activated, cards located in a given machine are visi- ble only to the Orban Control application running locally on that ma- chine. They are invisible to other machines on the network. Not running...
  • Page 40 Opticodec-PC encoder software that uses OPTIMOD-PC as a hardware dongle. The Orban software allows you to give a card an easily remembered name (e.g., “KORB”) so the software does not have to address the card by its serial number. This name is an alias that is local to the computer from which you named the card;...

  • Page 41: Networking Optimod-Pc Cards: Overview

    Each host computer has a TCP/IP address and port assigned to it and runs an instance of the Orban server ap- plication.

  • Page 42: Location Of Optimod-Pc For Netcasting

    It is usually best to locate OPTIMOD-PC cards in the same machine that runs the en- coding software, like Orban OPTICODEC-PC, Microsoft Windows Media Encoder or Real Networks HELIX Producer. This is because the output of the encoder is at a much lower data rate than the audio used to drive the OPTIMOD-PC input(s), so it is less expensive to transport encoded audio than unencoded audio.

  • Page 43: Genlocking Optimod-Pc Cards To A Reference Sample Frequency

    1-29 OPTIMOD-PC INTRODUCTION guarantee that equipment that can accept an AES3 signal can also accept a S/PDIF signal. (OPTIMOD-PC can accept both.) Moreover, the metadata carried in the AES3 bitstream is different from the metadata carried in the S/PDIF bitstream. The details are beyond the scope of this manual but can be easily searched on the Internet.

  • Page 44: Studio-Transmitter Link In Digital Broadcasting

    1-30 INTRODUCTION ORBAN MODEL 1101 mixer. This allows the sample frequency of the 1101’s Wave outputs to be locked to the chosen reference. Studio-Transmitter Link in Digital Broadcasting The following information is mainly relevant to digital radio broadcasters who have their transmitters and studios at different locations.
  • Page 45 1-31 OPTIMOD-PC INTRODUCTION higher the data rate, the less the peak levels will be corrupted by added noise, so use the highest data rate practical in your system. It is practical (though not ideal) to use lossy data reduction to pass unprocessed au- dio to OPTIMOD-PC’s input.

  • Page 46: Microwave Stls

    STL is good enough to pass unproc- essed audio. The signal-to-noise ratio of the STL can be used optimally if an Orban Studio AGC, another OPTIMOD-PC, or an Orban Transmission Limiter protects the link from overload.

  • Page 47: Analog Telephone/Landline (Ptt/Post Office Line)

    1-33 OPTIMOD-PC INTRODUCTION Analog Telephone/Landline (PTT/Post Office Line) Analog landline quality is extremely variable, ranging from excellent to poor. (For- tunately, they are largely obsolete, having been replaced by digital links.) Whether landlines should be used or not depends upon the quality of the lines locally avail- able, and upon the availability of other alternatives.

  • Page 48: Optimod-Pc At The Transmitter: Gain Control Before The Stl

    Further, many STLs require level control to prevent the STL from being overloaded. To apply such level control and compression, we recommend an Orban AGC/Limiter/HF Limiter (like another OPTIMOD-PC or an Orban 6300 stand-alone multipurpose processor or an OPTIMOD-PC) before the STL transmitter.

  • Page 49: Interfacing To The Transmitter

    1-35 OPTIMOD-PC INTRODUCTION All such algorithms operate by increasing the quantization noise in discrete fre- quency bands. If not psychoacoustically masked by the program material, this noise may be perceived as distortion, “gurgling,” phasiness, or other interference. Psycho- acoustic calculations are used to ensure that the added noise is masked by the de- sired program material and not heard.

  • Page 50: Subframe Delay

    1-36 INTRODUCTION ORBAN MODEL 1101 oscillator. In addition, OPTIMOD-PC’s output is equipped with a sample rate con- verter that can output at 32 kHz, 44.1 kHz, 48, 88.2, or 96 kHz. These rates can be synchronized to either AES3 digital input or to the sync input (see page 1-29).

  • Page 51: Monitoring On Loudspeakers And Headphones

    Dolby digital broadcasts and streams contain “Dial- norm” metadata to help achieve this goal. OPTIMOD-PC 1101 can be operated so that it is cognizant of Dialnorm, making it easy to ensure correct loudness.

  • Page 52: Streaming And Netcasting Applications

    OPTIMOD-PC’s processing has a second output after the multiband compressor but before the look-ahead peak limiter, which is where the majority of the delay occurs. This output feeds one of the inputs to the output routing switcher in the Orban I/O Mixer application.

  • Page 53: Using Optimod-Pc To Prepare Audio Files

    / coding chain with the highest audio quality possible for a given bitrate. These two components are also available from Orban as part of a turnkey system called OPTICODEC-PC Streaming Encoder, which includes a...

  • Page 54: Shipping Instructions

    1-40 INTRODUCTION ORBAN MODEL 1101 rack mount computer with both components pre-installed and pre-configured. More information can be found at http://www.orban.com Streams and files encoded with OPTICODEC-PC Stream and File Encoder can be played by almost all computers and mobile devices. The list keeps growing because...

  • Page 55: Warranty, User Feedback

    However, the limitation of any right or remedy shall not be effective where such is prohibited or restricted by law. Simply take or ship your Orban products prepaid to our service department. Be sure to include a copy of your sales slip as proof of purchase date. We will not repair transit damage under the no-charge terms of this warranty.

  • Page 56: Extended Warranty

    Warranty (yielding a total Warranty period of five years) by remitting to Orban ten percent of the gross purchase price of your Orban product. This offer applies only to new Orban products purchased from an authorized Orban Dealer.

  • Page 57: Section 2 Installation

    OPTIMOD-PC, and it should always be stored and shipped in the anti-static bag in which it was shipped from the factory. Your warranty does not cover damage from static discharge. C) Complete the Registration Card and return it to Orban. (please)
  • Page 58 INSTALLATION ORBAN MODEL 1101 LOCAL Stand Alone System Profile Name = Local Security Card Serial#, < Card Name > Security Card Serial#, < Card Name > REMOTE Security Card Serial#, < Card Name > Security Card Serial#, < Card Name >...

  • Page 59: Mount Optimod-Pc In A Free Pci Slot In Your Computer

    [HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\CI\Policy]"Upgraded System"=dword:00000001 As of October 4, 2017, Orban has not received any reports of problems caused by adding this key. NEVERTHELESS, THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE REGISTRY CHANGE IS WITH YOU. SHOULD THE REGISTRY CHANGE PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
  • Page 60 B) Click Cancel as many times as necessary to close the “New Hardware De- tected” wizard. When you run the Orban installer according to the instructions below, it will automatically install the correct driver. C) (Optional) If you have installed more than one card, Windows will continue to present “New Hardware Detected”...
  • Page 61 Please install latest driver and software. If you get this error message, repeat the installation process by running Setup from the Orban CD-R or as downloaded from ftp.orban.com/1101. Do not uninstall the old version of OPTIMOD-PC before running the up- grade application.

  • Page 62: Plan Your Installation

    Administration: allows you to rename cards and set both Administrator and User Mixers and save Exit hide the Toolbar, Status Bar, Passwords when you are connected to a card at a Local or Remote site. them in a selected and Tool Tips. Window's folder. Figure 2-3: The Orban Control Application...

  • Page 63: Set Up Passwords And Card Names For Cards In Your Computer. (Optional)

    Optimod.exe , by clicking its icon (“agent”) in your computer’s system tray, or from Start > Programs > Orban > OPTIMOD-PC. (See Figure 2-3 on page 2-6.) Newly installed cards have no passwords. You do not need to assign a password to a card unless you want that card to be accessible to a net- work connected to your computer.
  • Page 64 INSTALLATION ORBAN MODEL 1101 the OPTIMOD-PC cards from either a Telnet/SSH client or a custom third party applica- tion. See OPTIMOD-PC Sys- tem/Mixer Control API on page 6-1. If you do not assign a Ter- minal Password in this step,...
  • Page 65 OPTIMOD-PC INSTALLATION C) Set the “Application Control Setup” port through which the OPTIMOD-PC Control Application running on networked computers can access the OPTIMOD-PC Service running on your local computer. The OPTIMOD-PC Service allows you to access all cards on a given computer through the same port.
  • Page 66 2-10 INSTALLATION ORBAN MODEL 1101 123.45.67.8/24 Entire IP (subnet) Range 123.45.67.8/255.255.255.0 Entire IP (subnet) Range d) If you wish to add another computer, repeat steps (a) through (c). e) When you are finished adding computers, click OK. G) Set U as appropriate.

  • Page 67: Edit The Local Optimod-Pc Server's Network Accessibility, Port Numbers, And Service Security Password. (Optional)

    (3) the User or Administrator password of each card. To add cards, you must be able to connect to the Orban server software on the remote computer containing those cards. That is, the remote computer must be on-line and connected to the network, and the Orban server software on that computer must be running.
  • Page 68 2-12 INSTALLATION ORBAN MODEL 1101 Orban server software will be run- ning if the remote computer is turned you have in- stalled your card and driver on that com- puter, the OPTIMOD- PC Control software is installed on that computer, and the “Allow Network to...

  • Page 69: Connect To A Remote Card. (Optional)

    This can be particularly useful if you are in a large broadcast group that has one administrator for audio processing throughout the group’s stations. To administer a card, Orban server software must be running on the computer in which the card is installed and that computer must be connected to the network.

  • Page 70: Delete A Remote Computer's Profile. (Optional)

    2-14 INSTALLATION ORBAN MODEL 1101 14. Delete a remote computer’s profile. (optional) If you no longer wish to have a particular remote computer appear in the list of available computers, you can delete it from the list. A) Select C...

  • Page 71: Connect Inputs And Outputs. (Optional)

    OPTIMOD-PC control application’s menu. ONNECT The installer will also install the “Orban OPTIMOD-PC 1101” Windows Service application and set it to start automatically at boot-up. Please note that the network cannot see your OPTIMOD-PC card(s) unless you explicitly expose them to the network as described in step 8 on page 2-8.
  • Page 72 2-16 INSTALLATION ORBAN MODEL 1101 18. If appropriate, install the Microsoft Windows SRC Hotfix for Windows 7 and Server 2008. The Windows 7/Server 2008 Sample Rate Converter (SRC) Hotfix improves the performance of the Windows Core Audio Record Sample Rate Converter by greatly reducing aliasing distortion.

  • Page 73: Analog Input And Output Audio Connections

    See Figure 2-2: Wiring Diagram for the 1101 OPTIMOD-PC XLR on page 2-5. Analog Audio Input Using Orban’s mixer application (available from the T menu on the Orban Con- OOLS trol application or from your computer’s control panel in Multimedia), you can choose a nominal input level of either –10dBV (IHF consumer level) or +4dBu (pro-...

  • Page 74: Analog Audio Monitor Output

    2-18 INSTALLATION ORBAN MODEL 1101 • In low RF fields (like a studio site not co-located with an RF transmitter), connect the cable shield at OPTIMOD-PC input only—it should not be connected at the source end. In high RF fields (like a transmitter site), also connect the shield to pin 1 of the male XLR-type connector at the source driving OPTIMOD-PC.

  • Page 75: Grounding

    2-19 OPTIMOD-PC INSTALLATION meters or less), longer runs require use of 110Ω balanced cable like Belden 1800B, 1801B (plenum rated), multi-pair 180xF, 185xF, or 78xxA. Single-pair category 5, 5e, and 6 Ethernet cable will also work well if you do not require shielding. (In most cases, the tight balance of Category 5/5e/6 cable makes shielding unnecessary.) The AES3id standard is best for very long cable runs (up to 1000 meters).

  • Page 76: Power Ground

    Setup: The OPTIMOD-PC Control Application Once you have connected the Orban Control application to an OPTIMOD-PC card, the software allows you to control the card as if it were a dedicated hardware proc- essor like an Orban OPTIMOD. The Control application displays gain reduction me- ters, as well as controls that allow you to edit the sound of the factory presets to your liking.
  • Page 77 The current active setup file is a transient file. That is, the Orban Control application updates it whenever you change the setup manually. The Orban Control application also automatically updates the file when the application starts and reads the setup information from the Registry.

  • Page 78: Configure Global Audio Processing Parameters

    2-22 INSTALLATION ORBAN MODEL 1101 C) If you wish to edit an existing (or factory) setup, proceed to step 3 below. D) When you are finished setting up each card, close the I/O M window by IXER clicking D 3. Configure global audio processing parameters.

  • Page 79: Set Digital Output Properties. (Optional)

    “fight” each other and that they do not simultaneously increase gain (resulting in increased noise). If you are using an Orban 4000 Transmission Limiter, set the AGC to (so that the AGC function in OPTIMOD-PC continues to work). NABLED The Orban 4000 is a transmission system overload protection device;...
  • Page 80 2-24 INSTALLATION ORBAN MODEL 1101 There are several properties you can set to match OPTIMOD-PC’s AES3 digital outputs to your requirements. A) Set the AES3 Digital Output sample rate. [32], [44.1], [48 kHz], [88.2 kHz] or [96 kHz] 48 kHz or 96 kHz are preferred because their samples are synchronous with the peak-controlled samples in the processing.
  • Page 81 Instead, you must always use the transmitter’s built- in preemphasis filter. Because its processing is configured to be most effective with “flat me- dia,” OPTIMOD-PC cannot provide extreme loudness for preemphasized radio channels. Use one of Orban’s Optimod-FM processors for this appli- cation.
  • Page 82 2-26 INSTALLATION ORBAN MODEL 1101 OPTIMOD-PC can process audio for transmission on a preemphasized ana- log television aural carrier because this application requires lighter proc- essing than FM radio. OPTIMOD-PC’s TVAxxxx factory presets have been created for this application. See When operated with preemphasis, the look-ahead limiter should only be used for light protection limiting with a low duty cycle.
  • Page 83 2-27 OPTIMOD-PC INSTALLATION If you are not driving a Dolby Digital channel, set D to O IALNORM UTPUT This defeats Dialnorm processing, which can be confusing in applications other than driving Dolby Digital channels. • you have adjusted the 1101’s D to match the Dialnorm you IALNORM EFERENCE...
  • Page 84 2-28 INSTALLATION ORBAN MODEL 1101 c) D ITHER d) F = AES. ORMAT D) Click the O tab and set the Digital 1 S drop- UTPUT EVELS IGNAL OUTE down to P ROCESSOR IXER IMIT This applies stereo enhancement, equalization, AGC, 2-Band or 5-Band compression, loudness control, and look-ahead peak limiting.
  • Page 85 2-29 OPTIMOD-PC INSTALLATION Adjusting MB L changes the Loudness Level meter’s indication IMITER RIVE and the amount of gain reduction in the loudness controller and peak limiter. F) Set bypass gain (optional). EBU Recommendation R 128 requires online loudness controllers to be defeatable so that they do not change the dynamics of upstream material that is known to meet the R 128 requirement: the loudness of each pro- gram segment must be within a ±1 LU window centered on the active...
  • Page 86 2-30 INSTALLATION ORBAN MODEL 1101 control is set to 0.0 dBfs. In this case, the 1101’s D support is used EVEL IALNORM for convenience in setting the correct on-air loudness even though analog televi- sion transmissions do not use Dialnorm.
  • Page 87 2-31 OPTIMOD-PC INSTALLATION Achieving correct on-air loudness and proper operation of the 1101’s loudness meter requires you to align the transmission system following the 1101 so that 0.0 dBfs at the 1101’s output corresponds to 100% peak modulation of the transmitter. When the R EFERENCE OURCE IGITAL...

  • Page 88: Input Setup

    2-32 INSTALLATION ORBAN MODEL 1101 sor/limiter as a high-frequency limiter. If you hear audible pumping on material rich in high frequencies, turn down the B5 T control un- HRESHOLD til you find the most subjectively pleasing trade-off between high fre- quency loss and look-ahead limiter pumping.

  • Page 89: About The Interaction Between The Optimod-Pc Input Mixers And The Microsoft Windows Mixer

    2-33 OPTIMOD-PC INSTALLATION • Analog Left/Right • Digital 1 Input • Digital 2 Input • WAVE 1 Input (logical sound device 1) from PC. • WAVE 2 Input (logical sound device 2) from PC. • Processor Return Input The Processor Mixer has five outputs. It does not have the Processor Return Input because this would cause an unwanted feedback loop around the audio processing.
  • Page 90 2-34 INSTALLATION ORBAN MODEL 1101 Player controls. Your computer’s operating system sums the outputs of these con- trols; their sum is the WAVE signal applied to the WAVE inputs in the OPTIMOD-PC I/O Mixer. To ensure correct calibration of the OPTIMOD-PC I/O Mixer WAVE Input, set the Windows Mixer WAVE control to full-scale.

  • Page 91: Input Setup Procedure

    2-35 OPTIMOD-PC INSTALLATION mod-PC Input and Output mixers from such applications. These controls are avail- able to such applications regardless of whether their check-boxes are checked in the window. HOW THE OLLOWING OLUME ONTROLS Input Setup Procedure 1. Adjust the Analog Input Reference Level control. [If you will not be using OPTIMOD-PC’s analog input, continue with step 6 on page 2-38.] A) In the I/O Mixer, click the C...

  • Page 92: Select The Stereo/Mono Input Mode For The Analog Input

    2-36 INSTALLATION ORBAN MODEL 1101 sound card without audio processing. Additionally, because the P ROCESSOR input is available, a Direct Mixer can pass both processed and unproc- ETURN essed audio to a given output. The “unprocessed audio” is most commonly emergency alert tones or test tones.
  • Page 93 (typically 0 VU if your console uses VU meters). If you are using a studio level controller that performs an AGC function, such as another OPTIMOD-PC or an Orban 6300, adjust it for normal operation. b) In the I/O Mixer, click the C tab.

  • Page 94: Adjust The Analog L/R Input Balance Control. (Optional)

    NALOG NPUT EDUCTION the main meter screen in the Orban Control application) indicate an average of 10 dB gain reduction when normal levels are applied to the OPTIMOD-PC’s analog input. If necessary, scroll the Mixer window horizontally so that the AGC G meter is visible.

  • Page 95: Output And Routing Switcher Setup

    2-39 OPTIMOD-PC INSTALLATION To do this, check (by clicking) the B 1 box on either (or ACKUP NPUT IGITAL both) of the A L/R and D 2 inputs. If both are checked, then a failure NALOG IGITAL of the D will automatically unmute only the D .
  • Page 96 2-40 INSTALLATION ORBAN MODEL 1101 • The Processor Mixer AGC output taken after the equalizers • The output of the OPTIMOD-PC audio processing that follows all processing except final peak limiting • The output of the OPTIMOD-PC audio processing that follows all processing, including peak limiting.

  • Page 97: Setting Output Loudness In Dolby Digital Transmissions

    1101’s “radio-style” presets and to assess the effect of customizing those presets. D) If you wish to save the entire setup (that is, the settings of all controls in all on the File menu in the Orban Control appli- tabbed pages), click S ETUP cation.

  • Page 98: Setting Preset Loudness Correctly In Dolby Digital Transmissions

    2-42 INSTALLATION ORBAN MODEL 1101 • Adjusting MB Limiter Drive changes the Loudness Level meter’s indication and the amount of gain reduction in the loudness controller and peak limiter. Setting Preset Loudness Correctly in Dolby Digital Transmissions If you are processing for a Dolby Digital distribution channel and wish to customize a factory preset, be aware of two major philosophies, one presented in ATSC Rec- ommendation A/85 and the other in EBU Recommendation R 128.
  • Page 99 2-43 OPTIMOD-PC INSTALLATION The D is located in the C tab of the IALNORM EFERENCE CONTROL ONFIGURATION I/O mixer The controls to which the following procedure refers are described later in Section 3. A) Make sure that the processor mixer’s output is peaking around –15 dB for normal program (see Input Setup Procedure on page 2-35).

  • Page 100: The Direct Mixer

    2-44 INSTALLATION ORBAN MODEL 1101 band structure. When the loudness controller is on, both structures have comparable loudness control. If you chose an appropriate D value for your transmission, the IALNORM 1101’s limiting meters should rarely indicate any gain reduction.

  • Page 101: Applying Output From Wave Applications To Optimod

    2-45 OPTIMOD-PC INSTALLATION This caveat applies only when you are using OPTIMOD-PC’s WAVE inputs. If you are using only OPTIMOD-PC’s hardware inputs and have the WAVE inputs turned off in the OPTIMOD-PC I/O mixer, then the system WAVE sounds will not mix with your desired program material.

  • Page 102: Applying Optimod-Pc's Output To Wave Applications

    OPTIMOD-PC WAVE device. For example, if you were running two streams, one instance of HELIX Producer would be connected to “Orban OPTIMOD- 1101 (serial number of card #1)” and the other instance would be connected to “Orban OPTIMOD-1101 (serial number of card #2).”...
  • Page 103 2-47 OPTIMOD-PC INSTALLATION By default, some versions of Windows 2003 server have the Audio Service Disabled. To use audio Wave I/O with OPTIMOD-PC, you must enable the Windows 2003 Serv- er Audio Service. This service is unnecessary if you are only using OPTIMOD-PC with its hardware audio I/O.

  • Page 104: Problems And Possible Causes

    2-48 INSTALLATION ORBAN MODEL 1101 Problems and Possible Causes Always verify that the problem is not the source material being fed to OPTIMOD-PC, or in other parts of the system. When I first turn on my computer, the sound seems wrong.

  • Page 105: When I Launch The Optimod-Pc Control Application, The Meters Do Not Move And I Cannot Control My Card

    OptimodPcService , is not running in the computer housing the target card. • The Orban Windows service routine has malfunctioned. If all else fails, try end- ing and then restarting OptimodPcService in the Windows Task Manager: A) On the computer, navigate to >...

  • Page 106: I Get Clicks When I Source My Wave Material From My Computer's Hard Drive

    2-50 INSTALLATION ORBAN MODEL 1101 A) Open the System control panel. B) Select the Hardware tab. C) Select Device Manager... D) Expand the node labeled Ide Ata/Atapi Controllers. E) Right-click the first device labeled Secondary Ide Channel and choose Proper- ties.

  • Page 107: Poor Peak Level Control

    2-51 OPTIMOD-PC INSTALLATION and/or to reposition OPTIMOD-PC’s input and output cables to reduce RF pickup on their shields. • The AES3 inputs and output are transformer-coupled and have good resistance to RFI. If you have RFI problems and are using analog connections on either the input or output, using digital connections will probably eliminate the RFI.

  • Page 108: Audible Noise In Processed Audio

    2-52 INSTALLATION ORBAN MODEL 1101 • Be sure that the output meters for the processor mixer and Direct Mixer never go into the red. If they do, turn down the input attenuator(s) connected to the sig- nal causing the overload.

  • Page 109: Shrill, Harsh Sound; Excessive Sibilance

    STL may only be 70-75dB. In this case, it is wise to use an Orban Studio Level Controller (like an Orban 6300 or another OPTIMOD-PC) to perform the AGC function prior to the STL transmitter and to control the STL's peak modulation.

  • Page 110: Dialog Is Muffled

    2-54 INSTALLATION ORBAN MODEL 1101 • Alternatively, you can bypass OPTIMOD-PC’s processing of the tones by exploit- ing the P on either Direct Mixer. This scenario dedicates one ETURN NPUT hardware input and one Direct Mixer to the tone generator.

  • Page 111: Problems Specific To Dolby Digital Transmissions

    2-55 OPTIMOD-PC INSTALLATION Problems Specific to Dolby Digital Transmissions Loudness incorrect compared to other Dolby Digital Transmissions • Review Setting Preset Loudness Correctly in Dolby Digital Transmission on page 2-42. • Be sure that the active D setting in the 1101 is the same as the D IALNORM IALNORM setting you are transmitting to consumers.

  • Page 112: Transient Loudness Events (Like Esses In Speech) Sound Obtrusively Loud

    2-56 INSTALLATION ORBAN MODEL 1101 lieve that the range from 50% to 70% offers the most useful tradeoffs between reducing punch and allowing irritating short-term loudness bursts to pass through uncontrolled. Transient loudness events (like esses in speech) sound obtrusively loud •...

  • Page 113: Adding A Custom Logo

    Returned units will be returned C.O.D. if the unit is not under warranty. Orban will pay return shipping if the unit is still under warranty. In all cases, the cus- tomer pays transportation charges to the factory (which are usually quite nominal).

  • Page 114: Using Windows Firewall With Optimod-Pc

    2-58 INSTALLATION ORBAN MODEL 1101 Using Windows Firewall with OPTIMOD-PC Depending upon your network security requirements, it may be necessary to config- ure a software firewall application like Windows Firewall, included with Windows XP SP2 and higher. 1. Enable Windows Firewall: A) Navigate to C >...
  • Page 115 2-59 OPTIMOD-PC INSTALLATION B) Click Add… C) Enter the Description of the service, the name or IP address, the External Port number, and the Internal Port number. D) Select TCP. The IP address will be that of the computer. To avoid any conflict, we recommend choosing a Port higher than 1024 that is not otherwise assigned according to IANA:...

  • Page 116: Nat (Network Address Translation) Firewalls

    2-60 INSTALLATION ORBAN MODEL 1101 E) Select OK. A dialog box appears, indicating that the Orban Optimod 1101 Service is accessible through Windows Fire- wall. F) If any changes are required (like IP ad- dress or port): a) Click Edit.

  • Page 117: Snmp Support

    2-61 OPTIMOD-PC INSTALLATION The OPTIMOD-PC Control application uses TCP only. Refer to your router/firewall documentation for the exact configuration procedure, paying close attention to the network security risks inherent in configuration changes. SNMP Support The SNMP (Simple Network Management Protocol) features allow you to monitor your Optimod’s status and to send Alarm notifications to your network via the Ethernet connection of your Optimod’s host computer.

  • Page 118: Snmp Network Setup

    Secondary Manger Address: sets the address of a Secondary SNMP Manager. • Secondary Manger Port: sets the address of a Secondary SNMP Port. SNMP mib File Location The default 1101 install location is: \Program Files\Orban\Optimod-PC 1101\orban1101.mib C\Program Files(x86)\Orban\Optimod-PC 1101\orban1101.mib SNMP Default Settings • SNMP Agent: Disabled •...
  • Page 119 2-63 OPTIMOD-PC INSTALLATION • Primary and Secondary Manager IP • Primary and Secondary Manager Port • aesInput1Error • aesInput2Error • syncInputError • analogInputSilence • aesInput1Silence • aesInput2Silence • waveInput1Silence • waveInput2Silence • processMixerOutputSilence • directMixer1OutputSilence • directMixer2OutputSilence • waveOutput1Silence • waveOutput2Silence Traps/Alert: •...
  • Page 120 2-64 INSTALLATION ORBAN MODEL 1101 SNMP Community String: The “SNMP Community string” is like a user id or password that allows access to a router's or other device's statistics. Set it in S to im- >SNMP S ERVICE ETTINGS ETTINGS plement SNMP security.

  • Page 121: Section 3 Operation

    OPTIMOD-PC OPERATION Section 3 Operation Figure 3-1: The OPTIMOD-PC Control Application...

  • Page 122: The Optimod-Pc Control Application

    AGC meter shows the gain reduction of the slow AGC processing that precedes the multiband compressor. Full-scale is 24dB gain reduction. Because the AGC is a two-band unit with Orban’s patented bass coupling system, this meter actually reads the gain reduction of the AGC Master band.
  • Page 123 OPTIMOD-PC OPERATION • Loudness Gain Reduction shows the amount of gain reduction that the 1101’s CBS Loudness Controller is producing. • Control Pane shows editing controls that allow you to customize the factory presets. There are two levels of control: Basic Control and Advanced Control. The control pane is organized in tabs.

  • Page 124: Introduction To Processing

    OPERATION ORBAN MODEL 1101 • View Menu allows you to display or hide the Toolbar, which contains icon- based shortcuts for common tasks. It also allows you to hide or display the status bar and control help. • Tools Menu allows you to access the OPTIMOD-PC Mixer and the Cards and Se- curity Administration Screen.

  • Page 125: Distortion In Processing

    In processing, there is a direct trade-off between loudness and distortion. You can improve one only at the expense of the other. Thanks to Orban’s psychoacoustically optimized designs, this is less true of Orban processors than of any others. Neverthe- less, all intelligent processor designers must acknowledge and work within the laws of physics as they apply to this trade-off.

  • Page 126: Speech/Music Detector

    “music” because the detector always identifies stereo material as “music.” Processing for Audio Codecs V2 software employs Orban’s PreCode™ technology to minimize codec artifacts, particularly when the codec bitrate is lower than 128 kbps. To exploit PreCode tech- nology fully, do not set up OPTIMOD-PC for very bright sound (with large amounts of high frequency energy) because this is likely to exacerbate codec artifacts.

  • Page 127: Optimod-Pc In Radio-Oriented Applications: From Bach To Rock

    Professional netcasters committed to providing their audiences with the best audio possible at a given bitrate should consider the use of a higher performance codec like Orban’s Opticodec-PC, which uses standards- based MPEG-4 AAC/HE-AAC/aacPlus™. HE-AAC is the most efficient codec available at the time of this writing.

  • Page 128: Sound For Picture Applications: Controlling Dynamic Range

    OPERATION ORBAN MODEL 1101 In professional broadcasting environments, you will achieve best results if Engineer- ing, Programming, and Management go out of their way to communicate and co- operate with each other. It is important that Engineering understand the sound that...

  • Page 129: Protection Limiting

    OPTIMOD-PC’s AGC uses the same dual-band, window-gated, matrix technology as the AGCs in Orban’s 2300, 5300, 8300, 8382, 8400, 8500, 9300, and 9400 Optimods. Therefore, it can accurately substitute for the AGCs in these devices and can help maintain an all-digital signal path throughout the facility.

  • Page 130: S Signal Processing Features

    3-10 OPERATION ORBAN MODEL 1101 B) Edit AGC parameters of the OPTIMOD-PC preset so they are the same as the AGC parameters on-air at the transmitter-side Optimod. Then save your work as an OPTIMOD-PC User Preset. If you use more than one preset in the transmitter-side Optimod, make one OPTIMOD-PC User preset for each transmitter-side Optimod preset.
  • Page 131 Figure 3-2: Simplified OPTIMOD-PC Digital Signal Processing Diagram Stereo Enhancement: OPTIMOD-PC provides two different stereo enhancement algorithms. The first is based on Orban’s patented analog 222 Stereo Enhancer, which increases the energy in the stereo difference signal (L–R) whenever a transient is detected in the stereo sum signal (L+R).
  • Page 132 OPTIMOD-PC’s bass, midrange, and high frequency parametric equalizers have curves that were modeled on the curves of Orban’s classic analog parametrics (like the 622B), using a sophisticated, proprietary optimization program. The curves are...
  • Page 133 3-13 OPTIMOD-PC OPERATION sound of an Orban analog parametric. They also use very high quality filter algo- rithms to ensure low noise and distortion. OPTIMOD-PC HF Enhancer is a program-controlled HF shelving equalizer that intelli- gently and continuously analyzes the ratio between broadband and HF energy in the input program material.

  • Page 134: Loudness Control

    3-14 OPERATION ORBAN MODEL 1101 transmission is identical to that of other properly set up Dolby Digital transmis- sions. If you are not driving a Dolby Digital channel, we recommend turning the 1101’s D to O This control is located in the...
  • Page 135 3-15 OPTIMOD-PC OPERATION iter so that it effectively monitors the loudness at the limiter’s output, not the loud- ness at the multiband compressor’s output. It does so by scaling its sidechain drive by two gain factors: (1) the MB L control and (2) the 1101’s active D IMIT RIVE...
  • Page 136 OUDNESS TTACK and/or use of an external loudness level meter like the free Orban Loud- ness Meter for Windows, which uses the same algorithm as the 1101’s built-in loudness level meter (www.orban.com/meter). V2 of this meter was released in March 2012.

  • Page 137: Bs.1770 Safety Limiter

    3-17 OPTIMOD-PC OPERATION While this is an easy solution that does not require your automation system to tell the 1101 when to recall presets, it is not ideal because there are some short-term loudness events, like sibilance, applause, and whistles, that can be annoying to audi- ences.

  • Page 138: Two-Band Purist Processing

    3-18 OPERATION ORBAN MODEL 1101 We included this safety limiter for customers whose policies require the BS.1770 loudness meter reading to be constrained below specified threshold regardless of how loud human listeners perceive the program to be. Our experience suggests that the BS.1770-2 meter will often over- read material with unusually low peak-to-average ratios, like highly pro- duced commercials and promos.

  • Page 139: Basic Control

    Orban’s audio processing experts on the basis of years of experience designing audio processing, and upon hundred of hours of lis- tening tests.

  • Page 140: Gain Reduction Metering

    3-20 OPERATION ORBAN MODEL 1101 coupled from L . You can therefore change EQ or stereo enhancement and not lose the ability to use L . When you create a user preset, OPTIMOD-PC will automatically save your EQ and stereo enhancement settings along with your setting.

  • Page 141: Fundamental Requirements: High-Quality Source Material And Accurate Monitoring

    3-21 OPTIMOD-PC OPERATION Further, be aware of the different peak factors on voice and music—if voice and mu- sic are peaked identically on a VU meter, voice may cause up to 10 dB more peak gain reduction than does music! (A PPM will indicate relative peak levels much more accurately.) The AGC meter can be switched (within the Full Control screens) so that it either reads the gain reduction of the Master (above-200 Hz) band, or the difference be-...
  • Page 142 3-22 OPERATION ORBAN MODEL 1101 and, if you wish, edit it to create a user preset. To put a given structure on the air, recall a factory or user preset associated with that structure. Five-Band: The Five-Band structure is very flexible, enabling you to fine-tune your sound.

  • Page 143: Factory Programming Presets

    3-23 OPTIMOD-PC OPERATION The Two-Band structure preserves the frequency balance between midrange and high frequency elements in the programming while permitting gentle automatic re- equalization of the balance between these elements (in the “Master” band, which is above 200 Hz) and elements in the “Bass” band (below 200 Hz). The AGC and two-band crossovers can be configured to be either phase-linear (i.e., constant-delay) or “allpass.”...

  • Page 144: Protection And Agc Presets

    3-24 OPERATION ORBAN MODEL 1101 artifacts and side effects. Once you have used L , save your ed- ited preset as a User Preset. Do not be afraid to choose a preset other than the one named for your program- ming if you believe this other preset has a more appropriate sound.
  • Page 145 3-25 OPTIMOD-PC OPERATION the processor that performs this multiband compression. All AGC presets use the look-ahead limiter to prevent overloading the STL on peaks. , the 50 μ and 75 μ Compared to F presets progressively reduce the drive level to the look-ahead limiter to prevent strong high frequency energy from triggering au- dible gain pumping or ducking.

  • Page 146: Radio-Style Presets

    Radio-Style Presets The presets (Table 3-2 on page 3-27) have been named similarly to their radio coun- terparts in Orban’s OPTIMOD-FM 8400 and 8500. The basic audio texture of corre- sponding OPTIMOD-PC and 8500 presets (heard through the 8500’s digital radio output) is similar, although the 1101 will tend to have 1-2 dB more bass.
  • Page 147 3-27 OPTIMOD-PC OPERATION RADIO-STYLE PRESETS Preset Names Source Preset Normal Less-More CLASSICAL-2 BAND CLASSICAL-2 BAND CLASSICAL-2B+AGC CLASSICAL-2B+AGC CLASSICAL-2B SFTKN CLASSICAL-2B+AGC CLASSICAL-5 BAND CLASSICAL-5 BAND CLASSICAL-5B+AGC CLASSICAL-5B+AGC COUNTRY-MEDIUM ROCK-SMOOTH COUNTRY-LIGHT ROCK-LIGHT CRISP CRISP DANCE ENERGY DANCE ENERGY EDGE EDGE 10.0 FOLK-TRADITIONAL ROCK-SOFT GOLD GOLD...
  • Page 148 OPERATION ORBAN MODEL 1101 Unlike the presets in Orban’s FM processors, no OPTIMOD-PC preset uses phase rotation. Therefore, if you use OPTIMOD-PC to process the main digital channel in HD Radio, some care must be applied in cross fading to avoid momentary audible comb filtering because of the different phase responses of the analog and digital channels.
  • Page 149 GREGG: GREGG and GREGG OPEN all use a 200 Hz band1/band2 crossover fre- quency to achieve a bass sound similar to the classic five-band Gregg Labs FM proc- essors designed by Orban’s Vice President of New Product Development, Greg Ogonowski. Dynamically, these presets produce a slight increase in bass energy be- low 100 Hz and a decrease of bass energy centered at 160 Hz.
  • Page 150 3-30 OPERATION ORBAN MODEL 1101 listening. This is a loud, bright, “major-market” preset that has a great deal of pres- ence energy to cut through on lower-quality speakers. Its sound changes substantially as the L control is turned down—fast peak limiting decreases while bass punch and transparency improve.
  • Page 151 3-31 OPTIMOD-PC OPERATION SPORTS: Similar to NEWS-TALK except the AGC Release (AGC Release Time) is slow- er and the Gate Thresh (Gate Threshold) is higher. This recognizes that most sports programming has very low signal-to-noise ratio due to crowd noise and other on- field sounds, so the preset does not pump this up as the NEWS-TALK preset would tend to do.

  • Page 152: Sound For Picture Presets

    (particularly older material), providing gentle gain con- trol that limits dynamic range to a level that provides the general audience with consistently intelligible dialog. It sounds very similar to Orban’s analog OPTIMOD-TV (Model 8182A) when that unit is adjusted for “General” programming according to the instructions in its operating manual.
  • Page 153 3-33 OPTIMOD-PC OPERATION sports, or films with optical soundtracks. The Five-Band presets (see below) can au- tomatically equalize such program material when its spectral balance is inappropri- ate and can also apply single-ended dynamic noise reduction. These presets defeat the AGC and do all gain riding with the two-band compressor, which is set for reverse exponential release.
  • Page 154 3-34 OPERATION ORBAN MODEL 1101 TV 5B-GEN PUR W/NR (TV Five-Band General Purpose with Noise Reduction): pro- vides effective dynamic range control and “automatic re-equalization” of most dra- matic material. It uses the Loudness Controller to control loudness tightly. It applies single-ended noise reduction to the material, which will reduce unwanted noise like hiss, hum, or stage rumble.

  • Page 155: Equalizer Controls

    3-35 OPTIMOD-PC OPERATION Like its two-band counterpart, this preset is sensitive to input levels because its com- pression ratio is finite. It also fully exploits the Loudness Controller, which usually shows slight gain reduction with dialog at normal levels. TV 5B-DRAMA COUPLD (TV Five-Band Drama Coupled): is similar to TV 5B D RAMA but uses more interband band coupling in the five-band compressor and a slower multiband compressor release time so it performs less automatic re-equalization of...
  • Page 156 Low Frequency Parametric Equalizer is a specially designed equalizer whose boost and cut curves closely emulate those of a classic Orban analog parametric equalizer with conventional bell-shaped curves (within ±0.15 dB worst-case). This provides warm, smooth, “analog-sounding” equalization.
  • Page 157 “warmth” and “mellowness” to the sound when boosting. When cutting, it can remove a “woody” or “boxy” sound. The equalizer, like the classic Orban model 622B, has constant “Q” curves. This means that the cut curves are narrower than the boost curves.
  • Page 158 3-38 OPERATION ORBAN MODEL 1101 Midrange Parametric Equalizer is a parametric equalizer whose boost and cut curves closely emulate those of an analog parametric equalizer with conventional bell-shaped curves. Mid Freq determines the center frequency of the equalization, in Hertz.
  • Page 159 The difference will never exceed the difference that would have other- wise occurred if the lowest frequency band were gated independently. If you are familiar with older Orban processors like OPTIMOD-FM 8200, this is the maximum amount of boost that would have occurred if you had set...

  • Page 160: Stereo Enhancer Controls

    You can operate the stereo enhancer in one of two modes or “styles.” The first emu- lates the Orban 222 analog stereo enhancer, while the second mode, called Delay, emulates a popular enhancer from another manufacturer that adds a delayed ver-...

  • Page 161: Agc Controls

    3-41 OPTIMOD-PC OPERATION sion of the L–R signal to the original L–R to create stereo enhancement. (See Stereo Enhancement on page 3-11 for more information.) It is unwise to use stereo enhancement with low bitrate codecs. At low bitrates, these codecs use various parametric techniques for encoding the spatial attributes of the sound field.
  • Page 162 3-42 OPERATION ORBAN MODEL 1101 dynamics processing controls to optimize the trade-offs between unwanted side ef- fects. If you wish, you may adjust the Advanced Modify parameters to your own taste. Al- ways start with L to get as close to your desired sound as possible. Then edit the Advanced Modify parameters using the Advanced Modify screen, and save those edits to a User Preset.
  • Page 163 3-43 OPTIMOD-PC OPERATION AGC Release (“AGC Master Release”) control provides an adjustable range from 0.5 dB/second (slow) to 20 dB/second (fast). The increase in density caused by setting the control to fast settings sounds different from the increase in density AGC R ELEASE caused by setting the Five-band’s M...
  • Page 164 3-44 OPERATION ORBAN MODEL 1101 The multiband gate also independently freezes the gain of the two highest fre- quency bands (forcing the gain of the highest frequency band to be identical to its lower neighbor), and independently sets the gain of the lowest frequency band ac- cording to the setting of the DJ B boost control (in the Equalization screen).
  • Page 165 3-45 OPTIMOD-PC OPERATION The normal setting for the W is 3 dB. INDOW Window Release (see W above.) INDOW AGC Ratio determines the compression ratio of the AGC. The compression ratio is the ratio between the change in input level and the resulting change in output lev- el, both measured in units of dB.

  • Page 166: Distortion Control

    3-46 OPERATION ORBAN MODEL 1101 peaks or dips around the crossover frequency. The two bands are down 3 dB at the crossover frequency. However, this mode adds group delay distortion and is there- fore subtly less transparent-sounding than the L mode.

  • Page 167: Varied From 0.0 (Hard) To 10.0 (Soft)

    3-47 OPTIMOD-PC OPERATION Bass Clip Threshold controls Orban’s patented embedded bass clipper. The control overrides the B control PEECH HRESHOLD HRESHOLD when OPTIMOD-PC automatically detects speech (page 3-6). The bass clipper is embedded in the multiband crossover so that harmonics created by clipping are rolled off by part of the crossover filters.
  • Page 168 3-48 OPERATION ORBAN MODEL 1101 In the Five-Band structure, the sum of band 1 and 2 drives the clipper. In the Two- Band structure, the Bass band drives the clipper. Bass Clip Shape allows you to change the knee of the input/output gain curve of the bass clipper.

  • Page 169: The Two-Band Structure

    3-49 OPTIMOD-PC OPERATION transients exceeding the look-ahead limiter’s threshold. For any material, there will be an optimum setting for the T control that provides the most RANSIENT NHANCE punch without triggering look-ahead limiter artifacts. The Two-Band Structure The Two-Band structure consists of a stereo enhancer, a slow two-band gated AGC for gain riding, an equalization section, a gated two-band compressor, and a low-IM look-ahead limiter.
  • Page 170 3-50 OPERATION ORBAN MODEL 1101 AGC, Equalizer, Stereo Enhancer, and Clipper controls are common to both Two- Band and Five-Band structures and are described in the pages above. Some of the Two-Band controls are common to the Full Modify and Advanced Mod- ify screens, with additional Two-Band controls available in the Advanced Modify screen.
  • Page 171 3-51 OPTIMOD-PC OPERATION and to permit the two-band compressor to perform all of the gain riding. This will prevent excessive reduction of dynamic range, and will produce the most natural sound achievable from the Two-Band structures. With faster 2B R control settings (above 8 dB/second), the sound will change sub- stantially with the amount of gain reduction in the two-band compressor.
  • Page 172 3-52 OPERATION ORBAN MODEL 1101 second, while E causes the release to commence slowly and then speed XPONENTIAL up as it progresses. The Exponential shape allows you to create the open sound of a slow release time with program material that is well controlled in level, while per- mitting the processing to quickly correct excessively low input levels.
  • Page 173 3-53 OPTIMOD-PC OPERATION imum loudness and density on small radios achievable by the Two-Band structure. However, such processing may fatigue listeners with high-quality receivers, and re- quires you to activate the AGC to control the average drive level into the two-band compressor, preventing uncontrolled build-up of program density.

  • Page 174: Nee Atio

    3-54 OPERATION ORBAN MODEL 1101 pression ratio to level off to ∞:1. The maximum setting produces the softest knee. to 0 dB produces a classic hard knee curve with ∞:1 compression Setting the K ratio regardless of the setting of the 2B M control.
  • Page 175 3-55 OPTIMOD-PC OPERATION gain reduction. Do not confuse this with the reverse exponential characteristic trig- gered by setting the 2B R control to E . In this case, release ELEASE HAPE XPONENTIAL commences slowly and then speeds up as it progresses. The 2B B control is only active when the 2B R control is set to...

  • Page 176: The Five-Band Structure

    3-56 OPERATION ORBAN MODEL 1101 The Five-Band Structure The Five-Band structure consists of a stereo enhancer, a slow gain-riding two-band AGC, an equalization section, a five-band compressor, a dynamic single-ended noise reduction system, an output mixer (for the five bands), and a low-IM look-ahead lim- iter.

  • Page 177: Customizing The Settings

    3-57 OPTIMOD-PC OPERATION oriented preset is on the air, the L control adjusts the average amount of gain reduction by adjusting the drive level to the Five-Band structure's input. This also adjusts the idle gain—the amount of gain reduction in the AGC section when the structure is gated.
  • Page 178 3-58 OPERATION ORBAN MODEL 1101 The M interacts with the M . With slower release time ULTIBAND RIVE ULTIBAND ELEASE settings, increasing the M control scarcely affects density. Instead, the ULTIBAND RIVE primary danger is that the excessive drive will cause noise to be increased excessively when the program material becomes quiet.
  • Page 179 3-59 OPTIMOD-PC OPERATION slower on music (to prevent excessive build-up of density). Compression Threshold; Speech Compression Threshold controls set the com- pression threshold for music and speech in each band (following OPTIMOD-PC’s au- tomatic speech/music discriminator), in units of dB. We recommend making small changes around the factory settings to preserve the internal headroom built into the processing chain.
  • Page 180 3-60 OPERATION ORBAN MODEL 1101 setting of the DJ B boost control (in the Equalization screen). Thus, without in- troducing obvious coloration, the gating smoothly preserves the average overall frequency response “tilt” of the five-band compressor, broadly maintaining the “au- tomatic equalization”...
  • Page 181 3-61 OPTIMOD-PC OPERATION Band 5 is particularly critical for noise reduction because much of the Downward Expander’s utility lies in hiss reduction. Hiss has most of its energy in band 5, while program material typically has less energy in this band, so the B5 D XPANDER control’s setting is critical to removing hiss while minimizing removal of desired pro- gram energy.
  • Page 182 3-62 OPERATION ORBAN MODEL 1101 Their range has been purposely limited because the only gain control element after these controls is the look-ahead limiter, which can produce pumping or distortion if overdriven. The thresholds of the individual compressors have been tuned to pre- vent audible distortion with almost any program material.
  • Page 183 3-63 OPTIMOD-PC OPERATION band. For example, if you set the M control to medium-fast and the ULTIBAND ELEASE GR control to –2, then the band 3 release time will be the same as if ELTA you had set the M control to medium and set the B ULTIBAND ELEASE...

  • Page 184: If The Host Computer Restarts Or Crashes

    3-64 OPERATION ORBAN MODEL 1101 If the Host Computer Restarts or Crashes… When you are using OPTIMOD-PC’s hardware inputs and outputs (that is, when OPTIMOD-PC is emulating a stand-alone audio processor), OPTIMOD-PC is designed to gracefully handle problems that occur in the host computer: •...
  • Page 185 3-65 OPTIMOD-PC OPERATION for each band. These compressor/limiters also offer user-adjustable interband coupling, allowing the user to operate them anywhere from quasi-wideband to fully independent. • A look-ahead peak limiter with advanced, proprietary distortion reduction algo- rithms. You cannot create a user preset “from scratch”; you must create it by modifying an existing preset, factory or user.
  • Page 186 3-66 OPERATION ORBAN MODEL 1101 C) If you have started with one of the S presets, the AGC will already be . If you need a very large amount of compression for an application like processing material intended for in-flight entertainment systems, you can ei-...
  • Page 187 3-67 OPTIMOD-PC OPERATION These controls allow you to set the limiter attack anywhere from 0% to 100% of normal in the Five-Band compressors, each of whose gain reduc- tion has a fast-release (limiter) and slow-release (compressor) component. Because the limiter and compressor characteristics interact, you will usu- ally get best audible results when you set these controls in the range of 70% to 100%.
  • Page 188 3-68 OPERATION ORBAN MODEL 1101 order of a few milliseconds and is not user adjustable. The purpose of the limiter is only to limit peaks that pass through the earlier compressors be- cause of their finite attack times. Functionally it is used like a peak clip- per, but it has vastly reduced modulation distortion by comparison to a clipper, whether “soft knee”...

  • Page 189: Creating Custom "Factory" Presets

    2. Create a folder for your presets. Create a folder named “My Preset” within the directory \Program Files\Orban\OPTIMOD-PC2\presets You should see all of the subdirectories for Orban’s factory presets in this director 3. Choose the default L value for your preset.
  • Page 190 3-70 OPERATION ORBAN MODEL 1101 the L setting that corresponds to that preset. For example, for L = 1.0, = 010. 5. Copy the user presets you made. Copy these presets in the \Program Files\Orban\OPTIMOD-PC2\presets\My Pre- set\ folder that you made in step 2.
  • Page 191 3-71 OPTIMOD-PC OPERATION to your preset’s default L setting, placing the copied file in \Program Files\Orban\OPTIMOD-PC2\presets B) Edit the file name of the file you copied to remove LMxxx, including the space before the “L.” The example file name is MY PRESET.orbf11...
  • Page 192 3-72 OPERATION ORBAN MODEL 1101...

  • Page 193: Appendix A: Using The Itu Bs.1770 And Cbs Loudness Meters To Measure Loudness Controller Performance

    CBS Loudness Meter For many years, Orban has used the Jones & Torick loudness controller and loudness in its products for loudness control of sound for picture. De- measuring technology The CALM Act applies only to U.S.

  • Page 194: Comparing The Meters

    Since first licensing the CBS algorithm and using it in its Optimod-TV 8182 in the ear- ly 1980s, Orban has continually refined and developed this technology. In the last 30+ years, audio processors from Orban and CRL using the CBS loudness controller have processed millions of hours of on-air television programming —...

  • Page 195: Meters In Each 10-Second Interval As A Function Of Time

    3-75 OPTIMOD-PC OPERATION H i s t o g r a m o f B S . 1 7 7 0 - 2 I n t e g r a t e d L o u d n e s s i n 1 0 - s e c o n d I n t e g r a t i o n I n t e r v a l s - 1 0 - 1 5 - 2 0...

  • Page 196: Figure 3-8: Loudness-Controlled Audio— Peak Output Of The Cbs And

    OPERATION ORBAN MODEL 1101 B S . 1 7 7 0 - 2 I n t e g r a t e d M e t e r ( G a t e d ; I n t e g r a t i o n T i m e = 1 0 s e c o n d s ) H i s t o g r a m o f B S .

  • Page 197: Test Setup

    TV 5B GEN PURPOSE preset. The digital output of the processor was applied to the digital input of an Orban 1101 soundcard, which was adjusted to pass the au- dio without further processing and to apply it to an Orban software-based loudness meter that simultaneously computes the BS.1770-2 Integrated loudness and CBS...

  • Page 198: Results

    Figure 3-8 and Figure 3-9 narrower than the scales in Figure 3-6 and Figure 3-7.) Both the loudness vs. time graphs and the histograms show the Orban 8685 controls loudness well, although the details of the meters’ indications are different. Both the Unfortunately, two terms for the same loudness units have been used in different standards documents.

  • Page 199: Problems With Low Peak-To-Rms Ratio Material

    3-79 OPTIMOD-PC OPERATION BS.1770 and CBS measurements indicate that most of the data points are in a ±1 dB/LK window. The peak CBS readings fit within a ±2 dB window. The BS.1770 readings also fit with- in a ±2 LK window except for four short intervals, which appear as low-probability outliers in the left side of the histogram.
  • Page 200 The author has used the Dolby LM100 to measure the output of the Orban 8685 with a wide variety of speech ma- terial, and has observed that this material is almost always controlled within a ±1 dB window as measured on the LM100.

  • Page 201: Studies Indicating That Bs.1770 Is Inaccurate At Very Low Frequencies

    Studies indicating that BS.1770 is inaccurate at very low frequencies Another weakness of BS.1770 is that, unlike the CBS loudness controller and meter as implemented in Orban products, the BS.1770 algorithm does not take into ac- count the loudness contributed by the LFE channel, for good reason. Nacross and Lavoie tried to extend the BS.1770 algorithm to include the LFE channel by sum-...

  • Page 202: Discussion And Conclusions

    (or worse from the broadcaster’s point of view, to mute a commercial). Whether measured via the CBS or BS.1770 algorithms, the CBS loudness controller algorithm in Orban’s current products effectively controls subjective loudness to much better than this +2, –5 dB window.
  • Page 203 CBS loudness meter locks onto dialog more effectively than does BS.1770, par- ticularly when the dialog is accompanied by underscoring and/or effects. Accord- ingly, the CBS Loudness Controller in Orban products, which uses the CBS loudness metering algorithm as its core loudness reference, produces consistent and naturally balanced dialog levels regardless of the program material and mixing style.

  • Page 205: Section 4 Software Summary

    OPTIMOD-PC SOFTWARE SUMMARY Section 4 Software Summary OPTIMOD-PC Software Summary The OPTIMOD-PC software version number is available through the Control Applica- tion Help > About menu. To get the firmware and DSP versions running on a given card, right-click that card in the Connection List.

  • Page 206: Driver

    SOFTWARE SUMMARY ORBAN MODEL1101 • Optimod2.inf – OPTIMOD-PC Driver Install Information Driver • Always required for operation of OPTIMOD-PC, except as noted in the section Hardware I/O and PCI Expansion Chassis on page 4-3. • Provides basic sound card operation for Windows WAVE I/O.

  • Page 207: Control Application

    OPTIMOD-PC software upgrade—refer to the software upgrade’s readme file. You can find this at ftp://ftp.orban.com/1101/Software/Documentation/. If you attempt to open a card in the Control Application and this card is running out-of-date firmware, the Control Application will issue an error message stating that you must upgrade the firmware to a version that is compatible with the soft- ware.

  • Page 208: About The Optimod-Pc Driver And Service

    The OPTIMOD-PC driver version number is available through Control Panel > System > Hardware > Device Manager > Sound, Video, and Game Controllers > Orban Optimod 1100 The OPTIMOD-PC driver is responsible for low-level communication between the OPTIMOD-PC card and your computer’s operating system. When the driver starts up, it checks a flag on each OPTIMOD-PC card to determine if it needs to reload DSP code into the card.
  • Page 209 OPTIMOD-PC SOFTWARE SUMMARY will load the same processing preset that was active on the OPTIMOD-PC card when the computer shut down. If the service does not start up for some reason, then this power-down processing preset will not be restored and the general-purpose preset (loaded by the driver) will run instead.

  • Page 211: Section 5 Uninstallation

    Section 5 Uninstallation Uninstalling the OPTIMOD-PC Software To remove the OPTIMOD-PC software, go to the START MENU, select All Programs, Orban, Optimod-PC 1101 folder , and then Uninstall Optimod-PC 1101 The Uninstaller will uninstall the OPTIMOD-PC Control Application, optimod2.exe, Service, Optimod2Service.exe...
  • Page 212 UNINSTALLATION ORBAN MODEL 1101...

  • Page 213: Section 6 Control Api

    OPTIMOD-PC CONTROL API Section 6 Control API OPTIMOD-PC System/Mixer Control API The OPTIMOD-PC Service application hosts a TCP/IP terminal server to allow external control of the OPTIMOD-PC cards from either a Telnet/SSH client or a custom third party application. All OPTIMOD-PC Mixer and System Controls are accessible and all commands are simple text strings.
  • Page 214 CONTROL API ORBAN MODEL 1101 connected from a Local card. The default port can be changed here too. Note that you only need to supply a password in the commands shown in Table 6-1 if you previously created a Terminal Password. See step (7.E) on page 2-7.) If there is no password assigned to the card, omit the brackets [] shown in the examples.
  • Page 215 OPTIMOD PC CONTROL API Command Values Function –Inf, –40.0dB to 0.0dB Digital 2 Process Mixer Input Level D2PIL (in 0.1dB steps) –Inf, –40.0dB to 0.0dB W1PIL Wave 1 Process Mixer Input Level (in 0.1dB steps) –Inf, –40.0dB to 0.0dB W2PIL Wave 2 Process Mixer Input Level (in 0.1dB steps) –Inf, –40.0dB to 0.0dB...
  • Page 216 CONTROL API ORBAN MODEL 1101 Command Values Function –6.0dB to 6.0dB (in 0.1dB steps) Analog 1 Direct Mixer 1 Input Balance A1D1IB –6.0dB to 6.0dB (in 0.1dB steps) Digital 1 Direct Mixer 1 Input Balance D1D1IB –6.0dB to 6.0dB (in 0.1dB steps)

  • Page 217: Using The Api And The 1101 Control Application Simultaneously

    OPTIMOD PC CONTROL API Command Values Function DirWave1 DirWave2 DirMixer1 DirMixer2 W1OR Wave 1 Output Router ProcMixerAGC ProcMixerLimit0 ProcMixerLimit1 DirWave1 DirWave2 DirMixer1 DirMixer2 W2OR Wave 2 Output Router ProcMixerAGC ProcMixerLimit0 ProcMixerLimit1 0dB +12dB A1IMG Analog 1 Input Max Gain (dB) 10kHz 11kHz 12kHz 13kHz 14kHz 15kHz MLPF1 Max Low Pass Frequency (kHz)

  • Page 218: Setting The Analog Output Level

    CONTROL API ORBAN MODEL 1101 Setting the Analog Output Level These two functions will adjust the Analog Output Level to 0dB and –20dB re- spectively. The file “analog_out_level_0.cmd” contains: plink -telnet -P 11101 127.0.0.1 < analog_out_level_0.txt The file “analog_out_level_0.txt” contains: 11111111 [password] A1OL 0.0dB...

  • Page 219: Microsoft Windows Mixer Control Api

    The 8-digit OPTIMOD-PC serial number is appended to the device names, which is especially useful in systems with multiple cards. Windows Driver Function Windows Audio Device Name Orban Optimod 1101 1 SERIAL Sound Playback Orban Optimod 1101 2 SERIAL Orban Optimod 1101 1 SERIAL...
  • Page 220 CONTROL API ORBAN MODEL 1101 Table 6-3: Windows Driver Enumeration The OPTIMOD-PC driver supports standard Microsoft Windows Mixer Controls under Windows 2000 and XP only. This allows third-party software applications to control the I/O of the OPTIMOD-PC DSP Mixer directly using the Windows Mixer API. It also...

  • Page 221: Administering The 1101 Through Serial Ports

    OPTIMOD PC CONTROL API Windows Mixer Component Name OPTIMOD-PC Application Control Dir 1 Wave 1 Direct Mixer 1/Wave 1 Input from PC Dir 1 Wave 2 Direct Mixer 1/Wave 2 Input from PC Dir 1 ProcRtn Direct Mixer 1/Proc Return Input Dir 2 Analog 1 Direct Mixer 2/Analog 1 Input Dir 2 Digital 1...

  • Page 222: Connecting Via Serial Port Using A Terminal Program On A Pc

    6-10 CONTROL API ORBAN MODEL 1101 • The character code supported is ASCII. Connecting via Serial Port Using a Terminal Program on a PC • The 1101 can be used with any computer or terminal that is compatible with the RS-232 standard interface.
  • Page 223 6-11 OPTIMOD PC CONTROL API The N dialog box appears. ONNECTION C) Give your new connection a name and choose OK. The C dialog box appears. ONNECT D) Set the Connect Using field to “COMx,” where “x” is the COM port you are us- ing on your PC.

  • Page 224: Administering The 1101 Through Ethernet Tcp/Ip

    6-12 CONTROL API ORBAN MODEL 1101 G) Navigate to File / Properties / Settings / ASCII Setup. Set the ASCII Setup prop- erties as follows: • Check: Echo typed characters locally • Wrap lines that exceed terminal width • Uncheck: Send line ends with line feeds •...

  • Page 225: Connecting Via Tcp/Ip Using A Terminal Program On A Pc

    6-13 OPTIMOD PC CONTROL API • The 1101 will not respond to unrecognized commands. • The character code supported is ASCII. Connecting via TCP/IP Using a Terminal Program on a PC • You can use the 1101 with any computer or terminal that is compatible with TCP/IP networking.
  • Page 226 E) Set the Host Address to that of the 1101 host computer. F) Set the Port Number to that of the 1101 host computer, (Default is 11101). G) Choose OK. Connection to the 1101 will be immediate and the 1101 connect banner will display: Orban OPTIMOD-PC 1101 Control vx.x.x.xx...
  • Page 227 A) Open a Command Box. B) Type: telnet <hostname> <hostport> e.g.: telnet 127.0.0.1 11101 Connection to the 1101 will be immediate, and the 1101 connect banner will display: Orban OPTIMOD-PC 1101 Control vx.x.x.xx Commands may now be sent and status received.
  • Page 228 6-16 CONTROL API ORBAN MODEL 1101 OPTIMOD-PC Command and Status Reference is in OPTIMOD-PC Sys- tem/Mixer Control API starting on page 6-1.

  • Page 229: Section 7 Specifications

    AGC (Automatic Gain Control): ±12dB/24dB gain range, Two-Band, Gate and Window enabled. Stereo Enhancer: Two styles available: (1) Orban-patented L–R dynamic expansion trig- gered by L+R transients; (2) L–R delay. Equalizers: Shelving Low Bass EQ, selectable 6 dB, 12dB or 18dB/octave. Three-band Pa-...

  • Page 230: Wave Audio Input

    1981 Jones & Torick CBS Technology Center algorithm, as further refined and de- veloped by Orban. The algorithm also drives a subjective loudness meter, which is dis- played on the 1101’s GUI. In dual-mono mode, there are two independent loudness con- trollers and meters.

  • Page 231: Analog Audio Input

    OPTIMOD PC SPECIFICATIONS Driver: Multiclient Driver allows 1101 to appear as two standard sound devices to the com- puter operating system. The output can therefore be routed to multiple software applica- tions simultaneously, such as audio encoders, recorders, and content insertion systems running on the host system, and/or the card physical outputs via the Mixer Application.

  • Page 232: Digital Audio Input

    SPECIFICATIONS ORBAN MODEL 1101 Output Level: +4dBu nominal; Clip level +18dBu unbalanced, +24dBu balanced. Software adjustable via OPTIMOD-PC Mixer Application and Windows Mixer API. Signal-to-Noise: 90dB unweighted signal-to-noise, 20Hz-20kHz (bypass mode). Distortion: <0.01% THD (bypass mode), 20Hz-20kHz. DA Conversion: 24-bit 128X oversampled D/A with linear phase anti-imaging filter.

  • Page 233: Audio Cable Assembly

    OPTIMOD PC SPECIFICATIONS Word Length: Selectable 24, 20, 18, or 16-bit. Optional dither can be added with level ad- justed appropriate to word length. This is first-order noise-shaped dither. (i.e., white TPDF dither of peak amplitude equal to the quantizer step size with noise shaping spec- tral density of 6dB/octave.) It sounds substantially quieter than white triangular PDF dither but, in contrast to more extreme noise-shaped dither, it adds only 3dB unweighted noise by comparison to white PDF dither.

  • Page 234: Software

    SPECIFICATIONS ORBAN MODEL 1101 Software: Mixer application: provides complete control of digital mixer and all hardware settings. Control application: provides subjective adjustment controls of the audio processing and remote administration. It also allows factory and user presets to be recalled from and save to a host storage device such as a hard disk drive.
  • Page 235 OPTIMOD PC SPECIFICATIONS Humidity: 0-95% RH, non-condensing. Size: (L x H x W): PCI Standard Short Length – 6.6"/168mm x 4.2"/107mm x 0.75"/19mm Shipping Weight: 4lbs./1.8kg with cable assembly. Shipping Weight: 2.0lbs./1.0kg 1101 OPTIMOD-PC Card. Shipping Weight: 2.0lbs./1.0kg 1101 Cable Assembly.
  • Page 237 OPTIMOD-PC RESOURCES Section 8 Resources Information The publications and links listed here provide more information on audio and streaming technologies. They will give you a thorough understanding of digital au- dio and the different streaming server technologies and topologies, as well as im- portant information regarding interfacing to other equipment and the Internet.
  • Page 238 RESOURCES ORBAN MODEL 1101 Adreas Spanias Audio Signal Processing and Coding Wiley Interscience, 2007 ISBN-10: 0471791474 ISBN-13: 978-0471791478 Bruce Fries and Marty Fries Digital Audio Essentials O’Reilly Media, First Edition, 2005 ISBN-10: 0596008562 ISBN-13: 978-0596008567 Eddy Bøgh Brixen Audio Metering Broadcasting Publishing &...
  • Page 239 OPTIMOD-PC RESOURCES Sams Publishing, First Edition, 2002 ISBN-10: 067232167X ISBN-13: 978-0672321672 Dick C. A. Bulterman, Lloyd Rutledge SMIL 2.0: Interactive Multimedia for Web and Mobile Devices X.media.publishing Springer-Verlag, First Edition, 2004 ISBN-10: 354020234X ISBN-13: 978-3540202349 Dick C. A. Bulterman, Lloyd Rutledge SMIL 3.0: Flexible Multimedia for Web, Mobile Devices and Daisy Talk- ing Books X.media.publishing Springer-Verlag, Second Edition, 2008...
  • Page 240 RESOURCES ORBAN MODEL 1101 Tricia Gill, Bill Birney Microsoft Windows Media Resource Kit Microsoft Press, 2003 ISBN-10: 0735618070 ISBN-13: 978-0735618077 Software and Resources Adobe Flash Main Page http://www.adobe.com/ Adobe Flash Media Server http://www.adobe.com/products/flashmediastreaming/ Adobe Flash Player http://www.adobe.com/products/flashplayer/ Adobe Flash Professional http://www.adobe.com/products/flash/...
  • Page 241 OPTIMOD-PC RESOURCES QuickTime Documentation http://developer.apple.com/documentation/QuickTime/ QuickTime for the Web http://developer.apple.com/documentation/QuickTime/QTBooks/QT4WebBook.htm Icecast Icecast2 Streaming Server http://www.icecast.org/ Downloads http://www.icecast.org/download.php Documents http://www.icecast.org/docs.php Streaming Audio Directory http://dir.xiph.org/index.php Open Source Media Framework (OSMF) Adobe Open Source Flash Player http://openvideoplayer.sourceforge.net Open Video Player (OVP) Open Source Flash Player http://openvideoplayer.sourceforge.net/ Microsoft Windows Media Windows Media Main...
  • Page 242 RESOURCES ORBAN MODEL 1101 Windows Expression Encoder http://www.microsoft.com/expression/products/EncoderStandard_Overview.aspx Windows Media Server/Services http://www.microsoft.com/windows/windowsmedia/forpros/server/server.aspx Microsoft Windows Knowledge Base Logoff and Shutdown Are Missing from the Start Menu When You Use Remote Desktop http://support.microsoft.com/kb/303070 Connect to Terminal Services with Color Resolution That Is Greater Than 256 Colors http://support.microsoft.com/kb/278502...
  • Page 243 OPTIMOD-PC RESOURCES Live Broadcasting with Silverlight and Windows Media http://www.streamingmedia.com/west/presentations/SMWest09-MSFT-Workshop.pdf RealNetworks Helix Mobile Server http://www.realnetworks.com/products-services/helix-mobile-server-gateway.aspx RealPlayer http://www.real.com/ SHOUTcast SHOUTcast DNAS (Distributed Network Audio System) SHOUTcast Streaming Server http://www.shoutcast.com/download SHOUTcast Support Documentation http://www.shoutcast.com/support/docs/ Winamp Client Player http://www.winamp.com/ Streaming Audio Directory http://www.shoutcast.com/ SMIL (Synchronized Multimedia Integration Language) SMIL 3.0 Interactive Multimedia for Web and Mobile Devices...
  • Page 244 RESOURCES ORBAN MODEL 1101 The CWI SMIL Page http://homepages.cwi.nl/~media/SMIL/ Ambulant Open SMIL Player http://www.ambulantplayer.org/ Streaming Audio Directories Icecast http://dir.xiph.org/index.php SHOUTcast http://www.shoutcast.com/ Tuner2 http://www.tuner2.com/ Software Utilities NetPerSec http://www.pcmag.com/article2/0,4149,1735,00.asp NetMeter http://www.metal-machine.de/readerror/ DU Meter http://www.dumeter.com/ Bandwidth Meter http://www.bandwidth-meter.net/ BWMeter http://www.desksoft.com/BWMeter.htm BitMeter OS http://codebox.org.uk/bitmeterOs BitMeter http://codebox.org.uk/controller?page=bitmeter2...
  • Page 245 OPTIMOD-PC RESOURCES TCPView http://technet.microsoft.com/en-us/sysinternals/bb897437.aspx Process Explorer http://technet.microsoft.com/en-us/sysinternals/bb896653.aspx Process Monitor http://technet.microsoft.com/en-us/sysinternals/bb896645.aspx BgInfo http://technet.microsoft.com/en-us/sysinternals/bb897557.aspx Pinguin Audio Metering http://www.masterpinguin.de/ Virtual Audio Cable http://www.ntonyx.com PAGEot - Embedded QuickTime Code Generator http://www.qtbridge.com/pageot/pageot.html XMLtoRefMovie http://www.hoddie.net/xmltorefmovie/ Server Log Analysis Analog http://www.analog.cx/ AWStats http://awstats.sourceforge.net/ Cacti http://www.cacti.net/ enScaler http://www.enscaler.com/index.html enScaler MediaReports http://www.enscaler.com/products/mediareports.html Funnel Web Analyzer...
  • Page 246 8-10 RESOURCES ORBAN MODEL 1101 MRTG – Multi Router Traffic Grapher http://mrtg.hdl.com/mrtg.htm NetTracker Web Analytics Solutions http://www.sane.com/ RRDtool http://people.ee.ethz.ch/~oetiker/webtools/rrdtool/ Sawmill Log Analysis http://www.sawmill.net/ Tech System Technology – Tracking/Metering Solutions http://www.techsystem.net Webalizer http://www.mrunix.net/webalizer/ Webalizer – Streaming Version http://webalizer.bzhtec.com/ Wowza Media Systems Main Page http://www.wowzamedia.com/...
  • Page 247 RESOURCES IANA (Internet Assigned Numbers Authority) http://www.iana.org/assignments/port-numbers Orban/Coding Technologies Windows Media Player AAC/HE-AAC Plugin FREE A Microsoft Windows DirectShow component to allow Windows Media Player to support AAC/HE-AAC files and streams in various formats and protocols. All ADTS, MPEG-4, and 3GPP file formats are supported. All ICY- SHOUTcast/Icecast2, RTSP/RTP MPEG-4/3GPP, and RTMP Flash streams are supported.
  • Page 248 8-12 RESOURCES ORBAN MODEL 1101 http://www.fabulatech.com/serial-port-splitter.html Fabulatech Serial Port Redirector http://www.fabulatech.com/serial-port-redirector.html HW Virtual Serial Port http://www.hw-group.com/products/hw_vsp/hw_vsp2_en.html...
  • Page 249 OPTIMOD-PC INDEX Section 9 Index AGC Router Output 2- · 23 agent 4- · 2 allpass crossover 3- · 45 0 dBfs+ 1- · 37 analog I/O setup 2- · 32 analog I/O 1- · 20 analog input calibration 2- · 36 analog input reference 2- ·...
  • Page 250 INDEX ORBAN MODEL 1101 Classical music 3- · 28 bandwidth 1- · 35 connections 2- · 17 clicks 2- · 50 digital I/O 2- · 18 clipper audio drivers control list 3- · 46 specification 7- · 5 clipper, bass 3- · 13 audio processing application 7- ·...
  • Page 251 OPTIMOD-PC INDEX knee 3- · 54 digital links 1- · 30 Knee 3- · 63 digital media Less-More 3- · 19 preprocessing for 1- · 1 LO PASS 3- · 40 digital output Loudness Threshold 3- · 55 not locking 2- · 53 MAX LPF 2- ·...
  • Page 252 INDEX ORBAN MODEL 1101 global processing parameters Bass Shelf Hinge Frequency 3- · 36 Bass Slope 3- · 36 configuring 2- · 22 equalizer 3- · 12 grounding Ethernet ground loop 2- · 19 and terminal program 6- · 12 grounding 2- ·...
  • Page 253 OPTIMOD-PC INDEX inspection 2- · 1 logo installation customizing 2- · 57 look-ahead limiter 3- · 13, 25 networked 1- · 27 overview 1- · 22 look-ahead limiting 3- · 5 simple 1- · 25 lossy data reduction 1- · 34 simple 2- ·...
  • Page 254 1- · 8 general description 1- · 10 loudness GR 3- · 3 Optimod-TV 8382 3- · 27 Loudness Level 3- · 2 Orban 4000 2- · 23 output 1- · 7 Orban 6300 2- · 23 meters output AGC 3- ·...
  • Page 255 OPTIMOD-PC INDEX peak normalization 1- · 5 five-band 3- · 22 folk 3- · 29 phase response 7- · 1 gold 3- · 29 phase rotation 3- · 28 oldies 3- · 29 phase rotator 3- · 12 radio 3- · 26 Phase Rotator 3- ·...

  • Page 256: Regulatory -------------------------------------------------------------------------------------------------

    INDEX ORBAN MODEL 1101 Security 1- · 25 serial API 7- · 6 serial port R 128 2- · 41 configuring 2 · 10 R128 · 26 Serial Port #2 6- · 9, 12 R128 2- · 28 Server ratio editing properties 2- ·...
  • Page 257 OPTIMOD-PC INDEX wave audio output 7- · 2 terminal server 6- · 1 spectral truncation Threshold overshoot caused by 1- · 31 Bass Delta 3- · 46 speech/music detector 3- · 6 Master Delta 3- · 46 Sports format 3- · 31 Multiband Compression 3- ·...
  • Page 258 9-10 INDEX ORBAN M Windows firewall 2- · 58 Windows Media Codec 3- · 7 Windows mixer video presets 3- · 32 input destination names 6- · 9 view menu 3- · 4 output destination names 6- · 8 VU meter 1- · 6 WIndows mixer peak meter data 6- ·...

Table of Contents

Save PDF
