AccessZone ® - GC500 Series – GC501-GC504 User Manual

6 LED Status

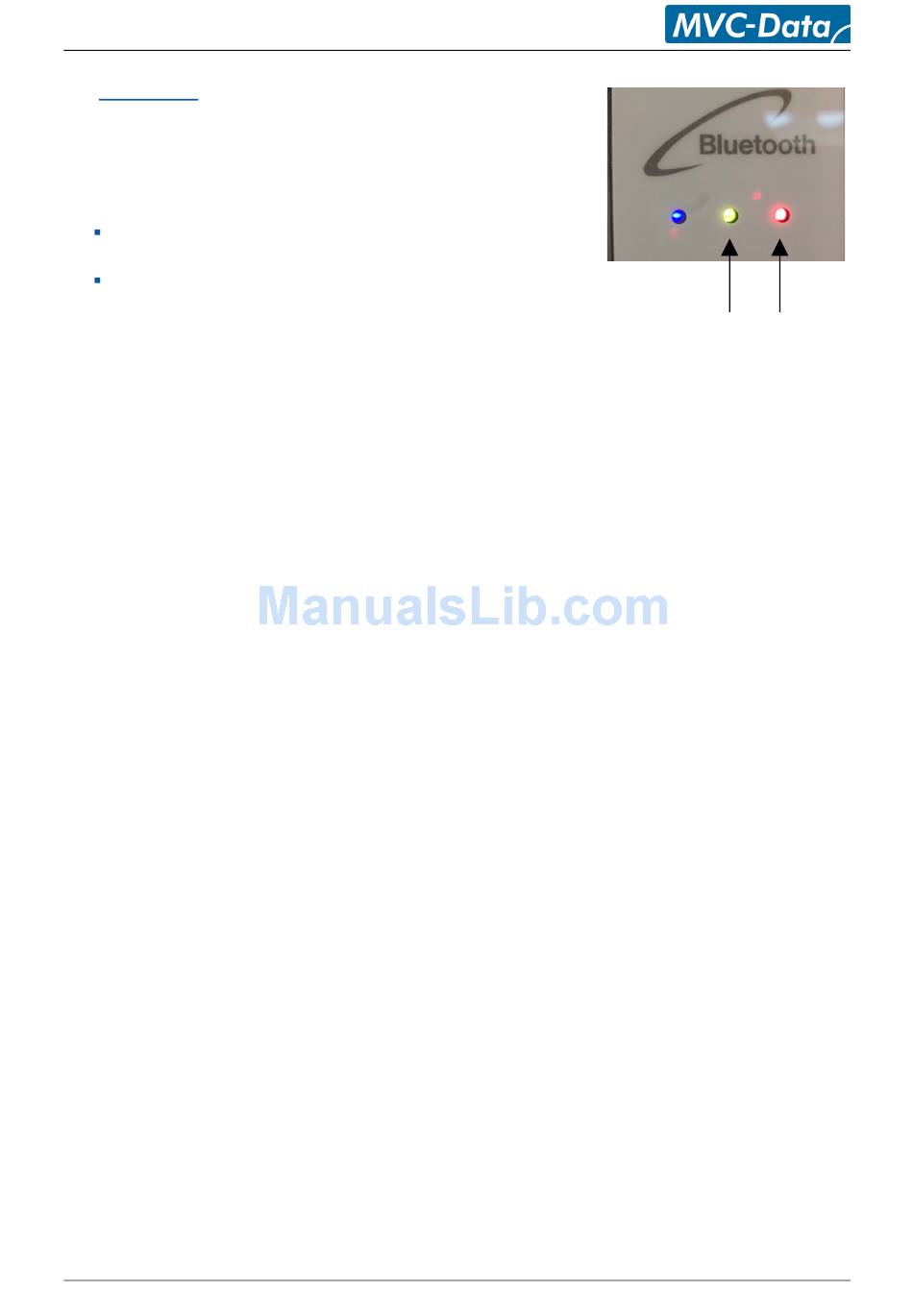

The GC500/GC600 series have 3 internally controlled LEDs (Blue,
Green and Red) and two externally controlled LEDs (Red and
Green) for system indications.
The Green LED (mid) is a dual LED with an additional Red
LED controlled though input 3 (Orange core)
The Red LED (right) is a dual LED with an additional Green
LED controlled though input 4 (Blue core)
6.1

Power Up

The Blue LED and Red LED will light for 2 seconds from power up. This is the bootloader waiting for
new firmware. Will call the application if new firmware is not received.
6.2

Blue LED

Normal Mode - the Blue LED is solid on. It flashes shortly when any Bluetooth device ID is read
from a nearby Bluetooth device (e.g. a mobile phone).
Configuration Mode - the Blue LED blinks 1 time/sec. The device can accept commands
6.3

Green LED / Ext. Red LED

The Green LED starts blinking when waiting for user to enter the PIN code.
The Green LED is solid on during door/gate activation else it is off.
The ext. Red LED is by default OFF (leave not connected). It can be controlled from external
controller through input 3 (Orange Core). The LED is set ON by pulling it down to GND.
6.4

Red LED / Ext. Green LED

The Red LED is showing the status of the alarm/light control output. If Red LED is on the alarm is
armed/light is off. It goes off when alarm is disarmed/light is on.
The ext. Green LED is by default OFF (leave not connected). It can be controlled from external
controller through input 4 (Blue Core). The LED can be set ON by pulling it down to GND
