AccessZone ® - GC500 Series – GC501-GC504 User Manual
8.5 Change System Configuration Command 2 – Advanced settings
This command can change some additional system settings and thereby customize the system to
your requirements.
Caution!
Caution must be taken when changing these system configuration parameters. Please refer to
section 14.1 Detection Range Command Examples.
Parameters
<power range>,
<TX power level>,
<Detection range>,
<Input1 active level >,
<Input2 active level >,
<Output1 active level >,
<Output2 active level >
Note!
Input 3 and input 4 are by default low active '0' (GND) and cannot be changed.
1)

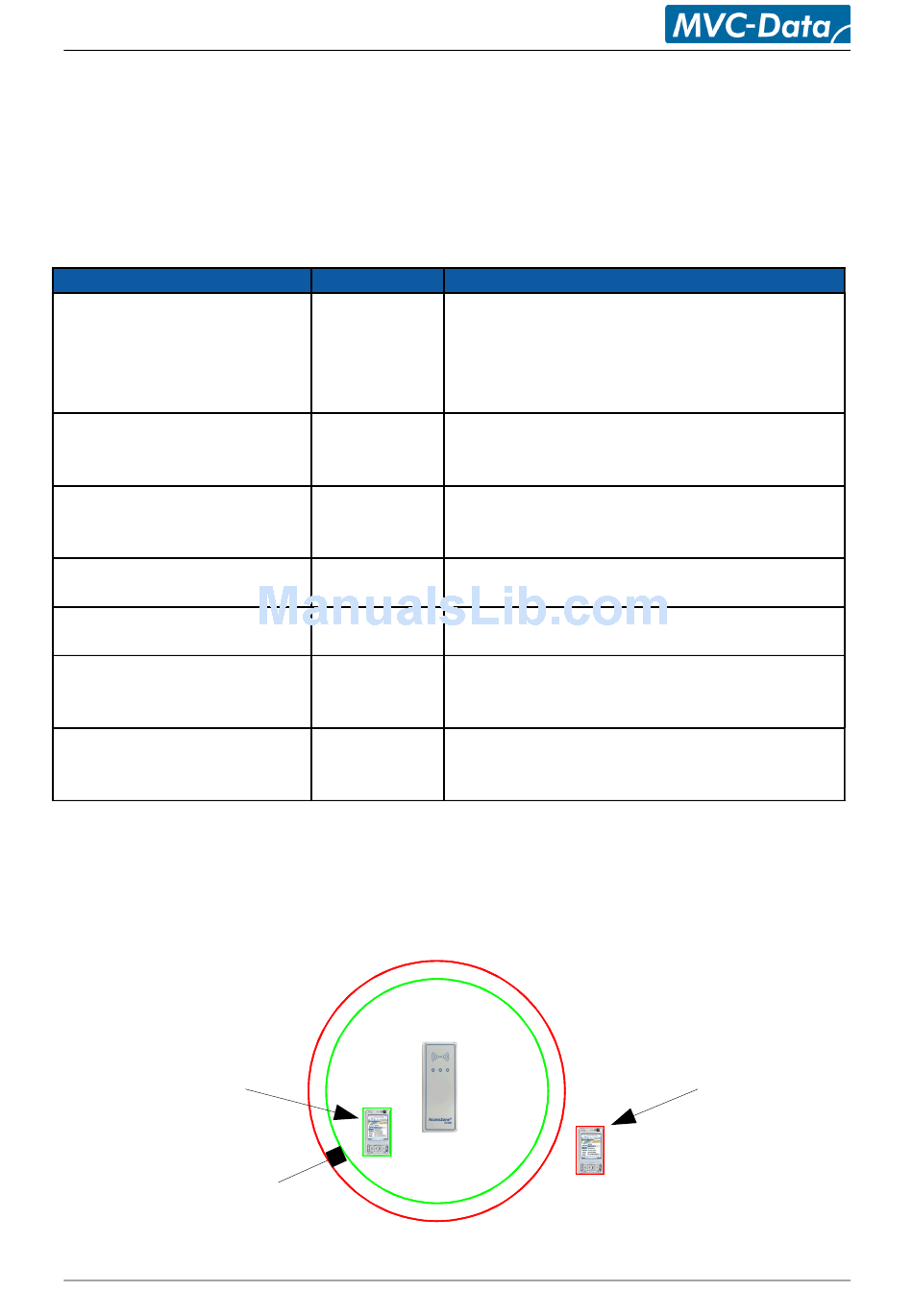

The figure show the relation between TX and RX. A mobile phone must be within the RX (green)
zone and TX should ideally be on RX or a little longer
Mobile phone is
granted access
A mobile phone between
TX and RX is detected but
no access
All information is subject to change without notice. All other products and brand names are registered trademarks of their respective companies
Copyright © 2005-2010 All rights reserved MVC-Data ApS Skalhuse 5 9240 Nibe Denmark Web
Values Description
Maximum transmit power range (TX)
'1' ≈ 0,1 m - 2 m
1 digit
'2' ≈ 0,5 m - 10 m
1-3
'3' ≈ 5 m - 100 m
Default: '1'
System transmit power (TX) level
1 digit
1≈0,1 m - 8≈ 10 m
1-8
Default: '3'
Device detection range (RX)
2 digits
"00"=shortest distance, "99" longest distance
00-99
Default: "40"
1 digit '0'=low active (GND), '1'=high active (open)
0 or 1 Default: '0'
1 digit '0'=low active (GND), '1'=high active (open)
0 or 1 Default: '0'
'0'=low active (GND), '1'=high active (12V DC)
1 digit
Default: '1' (Open collector output for
0 or 1
alarm/light)
'0'=low active (GND), '1'=high active (12V DC)
1 digit
Default: '1' (Open collector output for
0 or 1
gate/door)
RX RX
www.mvc-data.com
1)
TX TX
E-mail info@mvc-data.com Phone +45 25 12 84 02
1)
1)
Mobile phone is
NOT detected
2010-07-06 US 1.17
20/34
