AccessZone ® - GC500 Series – GC501-GC504 User Manual

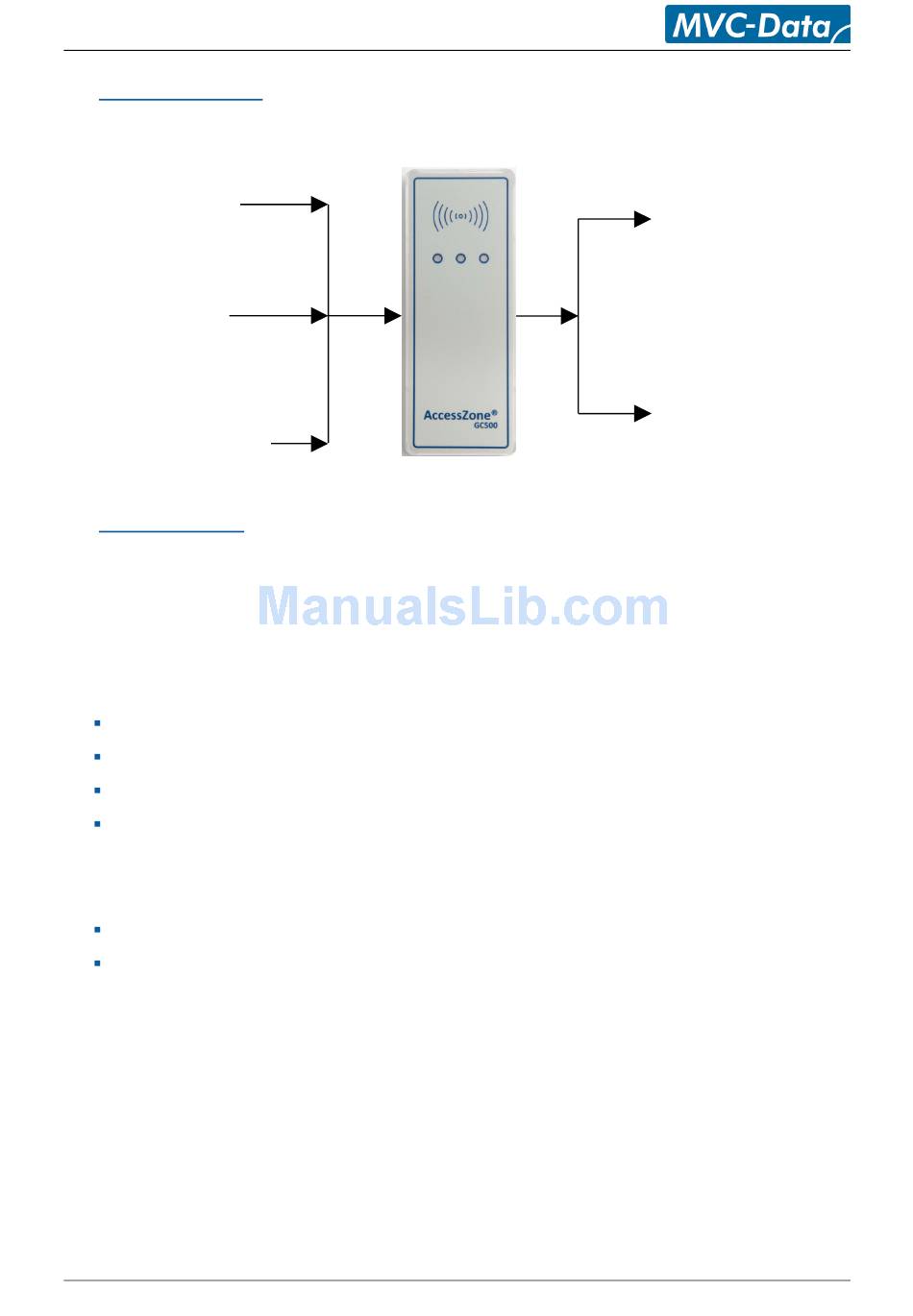

4 System Overview
This section presents a system overview with an I/O description:
Input 1 (IN1)
Block Operation
(Prevents any door/
gate activation)
Input 2 (IN2)
REX Button and
Alarm arm/
Alarm reject arming
Input 3/4 (IN3/IN4)
External Red LED (IN3)
External Green LED (IN4)
5 I/O Description
GC500 series have 4 inputs and 2 outputs.
The active levels (high '1'/low '0'), when an action is performed, can be configured (inverted).
Please refer to section 8.5 Change System Configuration Command 2 – Advanced settings for more
details.
5.1
Inputs
Input 1 (IN1) - Block Operation for preventing any door or gate activation
Input 2 (IN2) - REX Button for Exit and Alarm arming/disarming
Input 3 (IN3) - External control of Red (dual) LED
Input 4 (IN4) - External control of Green (dual) LED
5.2
Outputs
Open collector type (500mA):
Output 1 (OC1) - Alarm Arm and Disarm/Light Control Switch
Output 2 (OC2) - Door lock/Gate Control
Please see the GC500 series Installation Manual for instructions on how to install the system.
All information is subject to change without notice. All other products and brand names are registered trademarks of their respective companies
Copyright © 2005-2010 All rights reserved MVC-Data ApS Skalhuse 5 9240 Nibe Denmark Web
www.mvc-data.com
E-mail
info@mvc-data.com
Output 1 (OC1)
(Level/Latched)
Alarm Arm and Disarm/
Light Control Switch
Output 2 (OC2)
(Pulse/Level/Latched)
Door lock/gate control
2010-07-06 US 1.17
8/34
Phone +45 25 12 84 02
