Total length = 14 digits
Example:

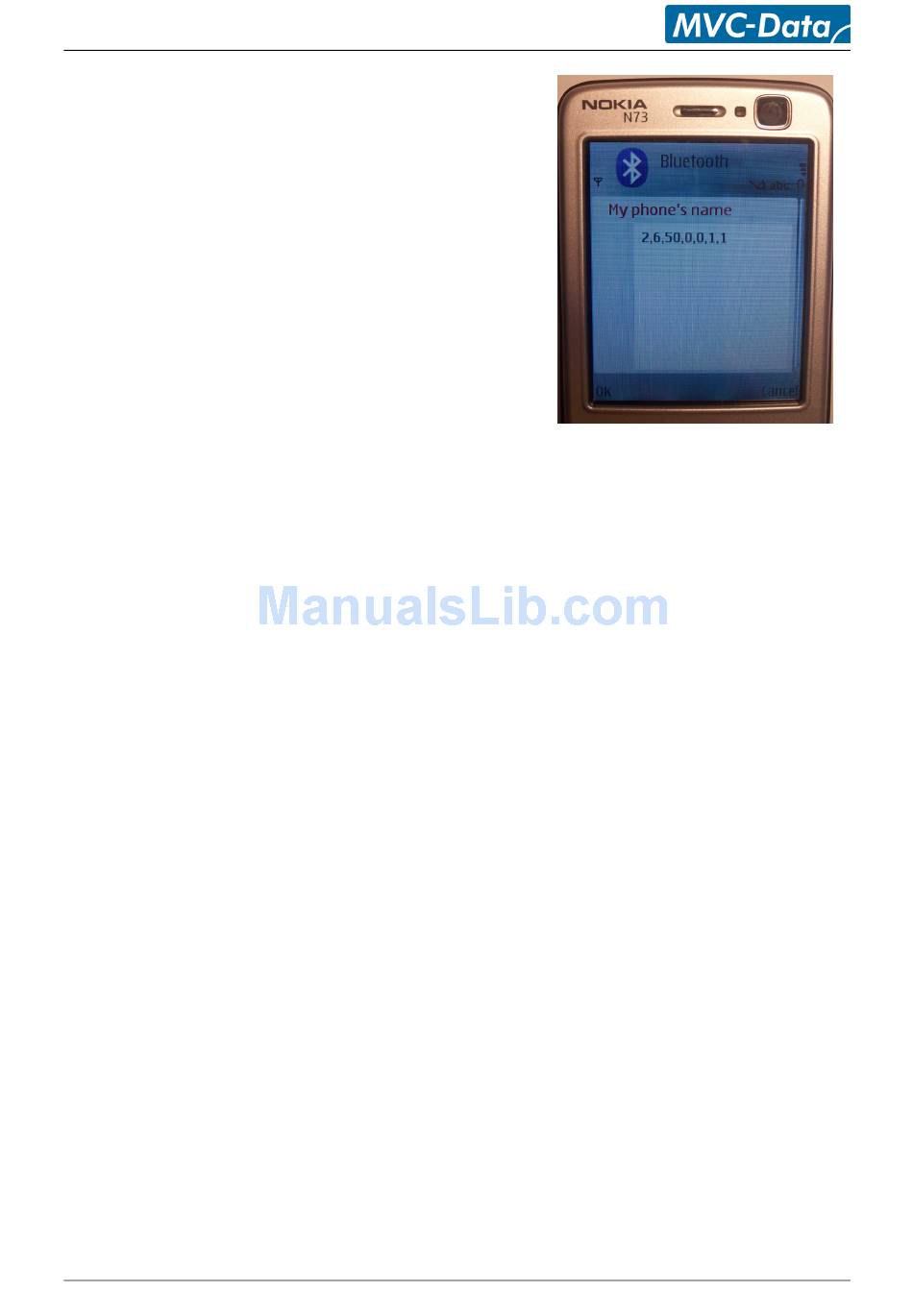

To select power range 2 (<10 m), and approximately 0,5 m
with input 1 and 2 active at low level (GND) and output 1
and 2 with high level enter: "2,6,50,0,0,1,1"
There is a close relation between parameters <power
range>, <TX power level> and <Detection range>. The
system detection range depends on selected <power
range>, <TX power level>.
Shortest detection range is with <power range>=1, <TX
power level>=1 and <Detection range>0
Longest detection range is with <power range>=3<TX
power level>=8 and <Detection range>99.
System must be power cycled for changes to take effect.
The System settings can be reset to factory value. Please
see section 15 Default Factory System Settings
Please see section 14 Access Detection Range for some typical values for <power range>, <TX
power level> and <Detection range> and how to adjust detection range.
System administrator should maintain a system log with System Settings 2 for Normal Operation
Mode. Please see 18 Appendix C – System Configuration Log Template
