US Water Systems 4 Stage RO/DI System
Installation and Maintenance Manual
Owners Manual
Models:
200-RODI4-XXX
US Water 4 Stage RO/DI System
REVISION 1.0, 5/12/2015
US Water Systems
1209 Country Club Road
Indianapolis, IN 46234
1-800-608-8792
www.uswatersystems.com
Advertisement
Table of Contents
Related Manuals for US Water Systems 200-RODI4 series
Summary of Contents for US Water Systems 200-RODI4 series
- Page 1 Visit us online at www.uswatersystems.com US Water Systems 4 Stage RO/DI System Installation and Maintenance Manual Owners Manual Models: US Water Systems 200-RODI4-XXX 1209 Country Club Road Indianapolis, IN 46234 US Water 4 Stage RO/DI System 1-800-608-8792 www.uswatersystems.com REVISION 1.0, 5/12/2015...
-
Page 2: Filter Module

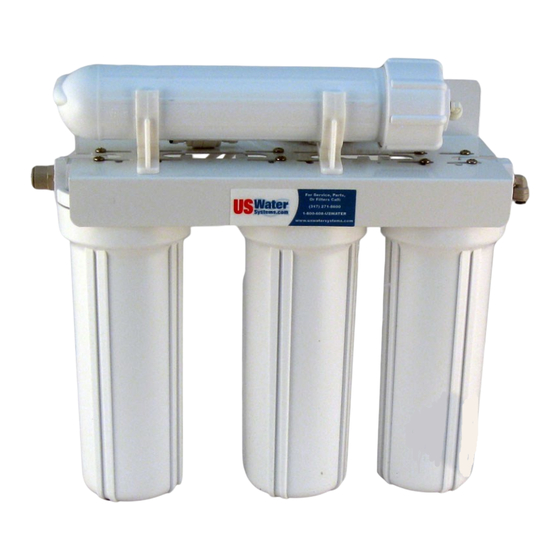

MEMBRANE PRE CARBON PRE SEDIMENT DI CARTRIDGE FILTER WRENCH FILTER MODULE COMPONENTS The following components make up the Reverse Osmosis Deionization System: FILTER MODULE holds the filter cartridges and provides system flow controls and automatic shutoff valve (ASO) PRE-FILTER (sediment filter) removes larger particles such as sand, silt, rust and scale, (activated carbon filters) re- move chlorine in the feed water to protect the reverse osmosis membrane. -
Page 3: Installation Steps
Installation Instructions Reverse Osmosis/Deionization Water System INSTALLATION STEPS Once the cap is removed be sure that the O-rings are in place. Unwrap the membrane and install it in the housing. Be sure NOTE: All plumbing must be completed in accordance with the membrane is fully seated in the housing. -
Page 4: System Start-Up
Installation Instructions Reverse Osmosis/Deionization Water System System Start-up Prior to start-up 1. Check all connections to be sure they are secure. 2. Turn on feed water valve and check for leaks. (Turn off and correct leaks if leaks occur.) 3. Close product water valve and wait five minutes and let the systems pressurize to see if leaks result. -
Page 5: Maintenance
Installation Instructions Reverse Osmosis/Deionization Water System Maintenance 7. Let system stand for approximately 30-60 minutes. The RO/DI system contains filters and membranes which must 8. After the minimum of 30 minutes perform the following be replaced periodically for proper operation. steps;... - Page 6 Installation Instructions Reverse Osmosis/Deionization Water System Water pressure and temperature Water production Product water quality and volume of a RO system is PRODUCT WATER RATE dependent on pressure and temperature. Typically, RO Usable water production from an RO system is designated membranes are tested at standard conditions of 77°F (25°C) product water rate, produced on a daily basis.
- Page 7 Installation Instructions Reverse Osmosis/Deionization Water System 3. Push up to the tube stop Push the tube into the fitting to the tube stop. The collet (gripper) has stainless steel teeth which hold the tube firmly in position while the O-ring provides a permanent leak proof seal.
- Page 8 Installation Instructions Reverse Osmosis/Deionization Water System Page 8...
- Page 9 Installation Instructions Reverse Osmosis/Deionization Water System Page 9...
- Page 10 Installation Instructions Reverse Osmosis/Deionization Water System Page 10...
- Page 11 US Water Systems 4-Stage RO/DI System For three (1) year to the original purchaser, at the original residential place of installation of this US Water Systems 4-Stage RO/DI System Water Purification System, US WATER SYSTEMS, INC. warrants the following: ONE YEAR COVERAGE...
