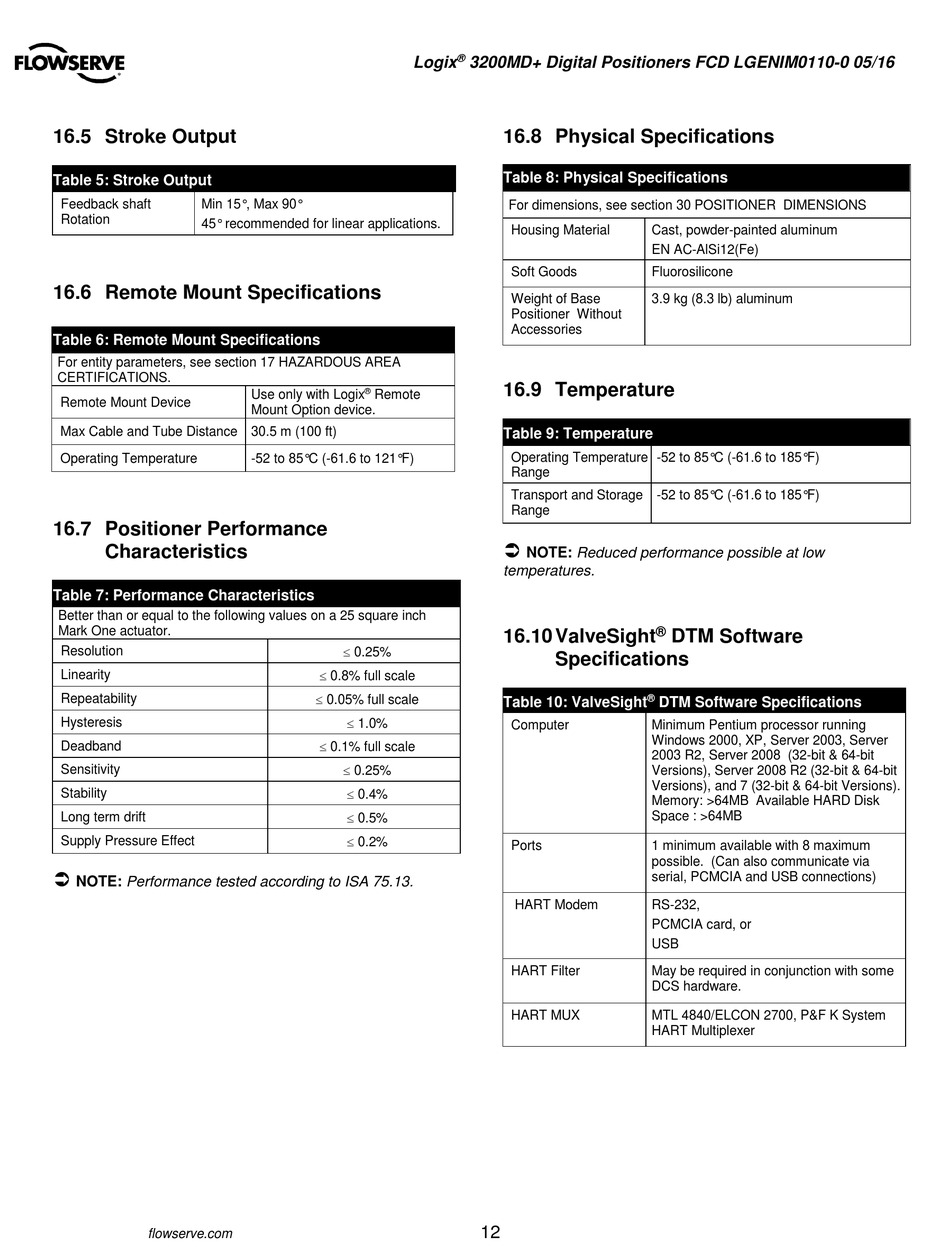

16.5 Stroke Output

Table 5: Stroke Output
Feedback shaft Min 15°, Max 90°
Rotation
45° recommended for linear applications.

16.6 Remote Mount Specifications

Table 6: Remote Mount Specifications
For entity parameters, see section 17 HAZARDOUS AREA
CERTIFICATIONS.
Remote Mount Device
Max Cable and Tube Distance 30.5 m (100 ft)
Operating Temperature
16.7 Positioner Performance
Characteristics
Table 7: Performance Characteristics
Better than or equal to the following values on a 25 square inch
Mark One actuator.
Resolution
Linearity
Repeatability
Hysteresis
Deadband
Sensitivity
Stability
Long term drift
Supply Pressure Effect

NOTE: Performance tested according to ISA 75.13.
flowserve.com
Logix
®
Use only with Logix Remote
Mount Option device.
-52 to 85°C (-61.6 to 121°F)
 0.25%
 0.8% full scale
 0.05% full scale
 1.0%
 0.1% full scale
 0.25%
 0.4%
 0.5%
 0.2%
®
3200MD+ Digital Positioners FCD LGENIM0110-0 05/16

16.8 Physical Specifications

Table 8: Physical Specifications
For dimensions, see section 30 POSITIONER DIMENSIONS
Housing Material
Soft Goods
Weight of Base
Positioner Without
Accessories

16.9 Temperature

Table 9: Temperature
Operating Temperature
Range
Transport and Storage
Range

NOTE: Reduced performance possible at low
temperatures.
16.10 ValveSight

Specifications

Table 10: ValveSight
Computer
Ports
HART Modem
HART Filter
HART MUX
12
Cast, powder-painted aluminum
EN AC-AlSi12(Fe)
Fluorosilicone
3.9 kg (8.3 lb) aluminum
-52 to 85°C (-61.6 to 185°F)
-52 to 85°C (-61.6 to 185°F)
®
DTM Software
®
DTM Software Specifications
Minimum Pentium processor running
Windows 2000, XP, Server 2003, Server
2003 R2, Server 2008 (32-bit & 64-bit
Versions), Server 2008 R2 (32-bit & 64-bit
Versions), and 7 (32-bit & 64-bit Versions).
Memory: >64MB Available HARD Disk
Space : >64MB
1 minimum available with 8 maximum
possible. (Can also communicate via
serial, PCMCIA and USB connections)
RS-232,
PCMCIA card, or
USB
May be required in conjunction with some
DCS hardware.
MTL 4840/ELCON 2700, P&F K System
HART Multiplexer
