1 SCOPE OF MANUAL

The following user information covers the Logix 3200MD+
digital positioner:

Powder Painted Aluminum Housing

M20 or ½" Conduit Threads

Comes with or without Multifunctional (MFC) card

Comes with or without Remote Mount Feedback

2 INTENDED USE

CAUTION: Digital Positioners are pressurized devices
designed and rated for specific application conditions.
Before installation, check the hazardous certification label
and model code labels to ensure that the positioner being
installed is correct for the intended application. Do not use
the positioner outside its rated design limits. Exceeding the
design limits may cause hazardous conditions including
equipment or environmental damage or serious personal
injury or death.
The specific product design data can be found on the
positioner's certification and model code labels, data sheet
and calculation sheet (in acc. to the IEC 60534-7:2010)
The Logix 3200MD+ can be used with the following supply
gasses: Air, sweet natural gas, nitrogen and CO2. Sour
natural gas is not acceptable. For Type nA and Type tb
installation only air or inert gas may be connected to the air
supply inlet. The air supply must be free from moisture, oil
and dust by conforming to the ISA 7.0.01 standard. (A dew
point at least 18 degrees Fahrenheit below ambient
temperature, particle size below five microns—one micron
recommended—and oil content not to exceed one part per
million).
The Logix 3200MD+ is designed for use in MODERATE
and WORLD-WIDE environmental conditions, ambient
temperature range -52 to 85°C (-61.6 to 185°F) and supply
pressure of up to 10.3 Bar (150 PSI).
The product offering may include optional ancillary
equipment, such as air-filter regulators, solenoid valves, or
boosters. Refer to the relevant manufacturer's user
instructions for information regarding other ancillary
equipment.

3 PRODUCT IDENTIFICATION

Verify that the labels match the intended application.
 NOTE:
Mark checkbox next to hazardous area
information for protection method Logix
installed to.
flowserve.com
®
Logix 3200MD+ Digital Positioners FCD LGENIM0110-0 05/16
®
3200MD+ is
5

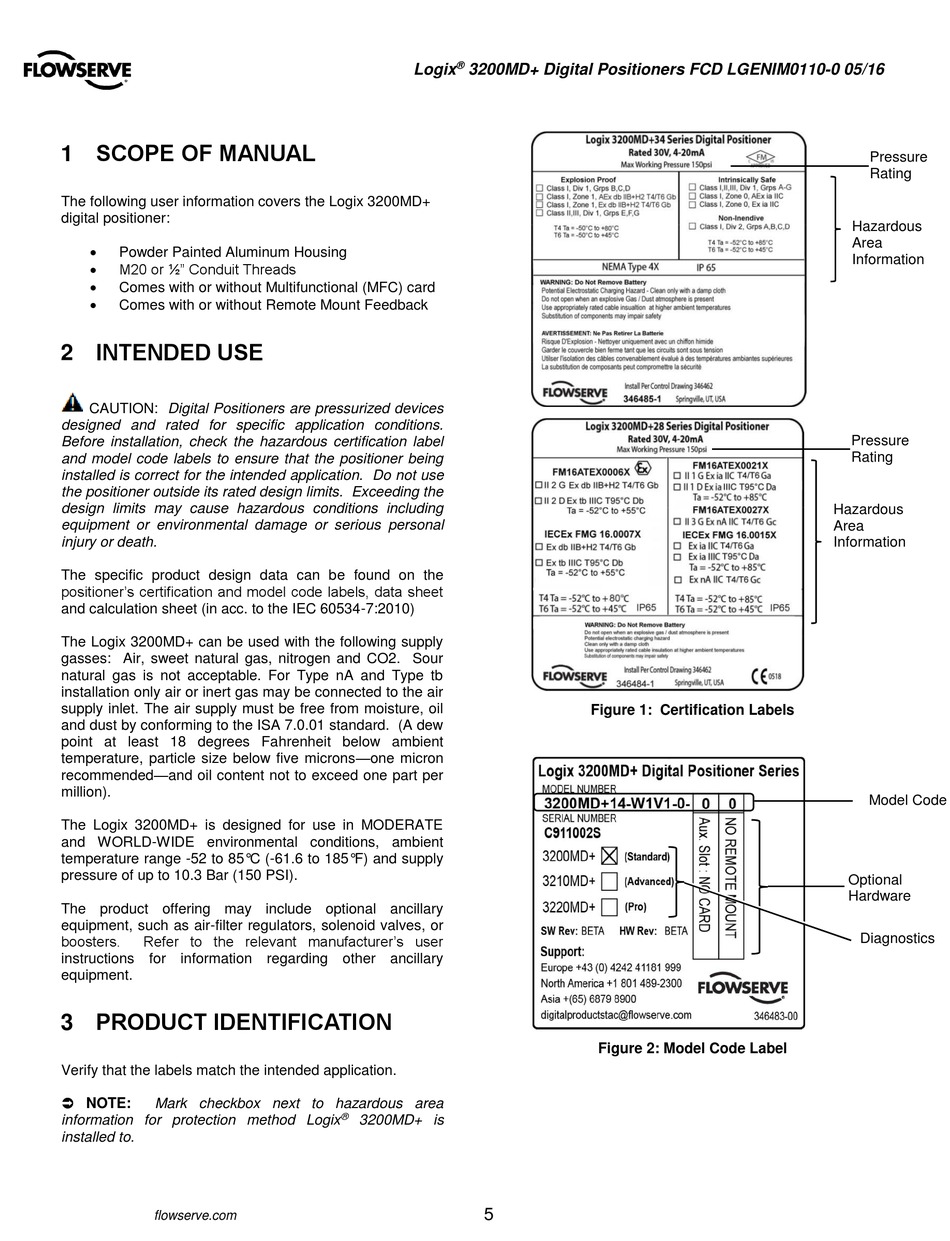

Figure 1: Certification Labels
Figure 2: Model Code Label
Pressure
Rating
Hazardous
Area
Information
Pressure
Rating
Hazardous
Area
Information
Model Code
Optional
Hardware
Diagnostics
