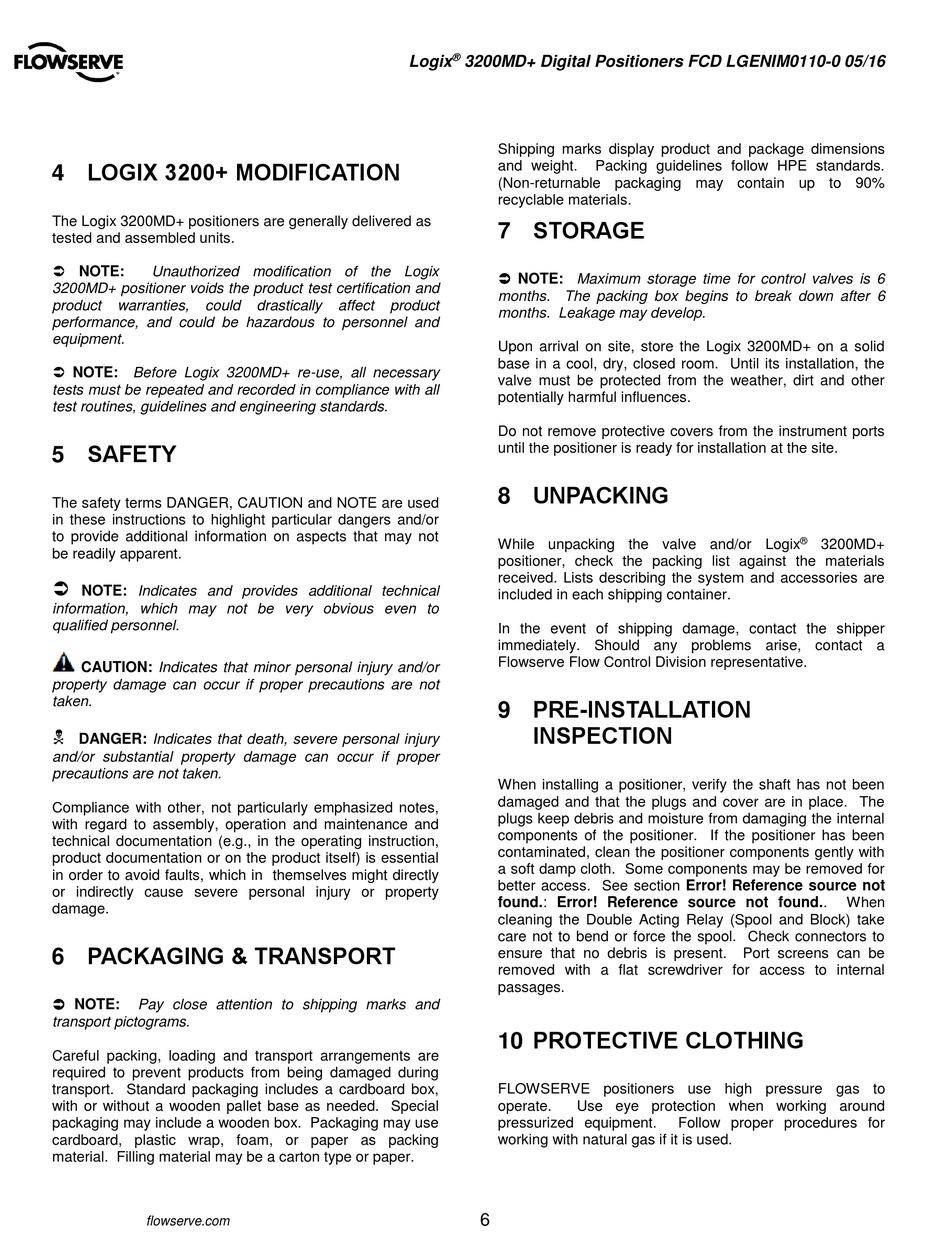

4 LOGIX 3200+ MODIFICATION

The Logix 3200MD+ positioners are generally delivered as
tested and assembled units.
 NOTE:
Unauthorized modification of the Logix
3200MD+ positioner voids the product test certification and
product warranties, could
performance, and could be hazardous to personnel and
equipment.
 NOTE: Before Logix 3200MD+ re-use, all necessary
tests must be repeated and recorded in compliance with all
test routines, guidelines and engineering standards.

5 SAFETY

The safety terms DANGER, CAUTION and NOTE are used
in these instructions to highlight particular dangers and/or
to provide additional information on aspects that may not
be readily apparent.

NOTE: Indicates and provides additional technical
information, which may not be very obvious even to
qualified personnel.
CAUTION: Indicates that minor personal injury and/or
property damage can occur if proper precautions are not
taken.

DANGER: Indicates that death, severe personal injury
and/or substantial property damage can occur if proper
precautions are not taken.
Compliance with other, not particularly emphasized notes,
with regard to assembly, operation and maintenance and
technical documentation (e.g., in the operating instruction,
product documentation or on the product itself) is essential
in order to avoid faults, which in themselves might directly
or indirectly cause severe personal injury or property
damage.
6 PACKAGING & TRANSPORT
 NOTE:
Pay close attention to shipping marks and
transport pictograms.
Careful packing, loading and transport arrangements are
required to prevent products from being damaged during
transport. Standard packaging includes a cardboard box,
with or without a wooden pallet base as needed. Special
packaging may include a wooden box. Packaging may use
cardboard, plastic wrap, foam, or paper as packing
material. Filling material may be a carton type or paper.
flowserve.com
Logix
drastically affect product
®
3200MD+ Digital Positioners FCD LGENIM0110-0 05/16
Shipping marks display product and package dimensions
and weight. Packing guidelines follow HPE standards.
(Non-returnable packaging may contain up to 90%
recyclable materials.

7 STORAGE

 NOTE: Maximum storage time for control valves is 6
months. The packing box begins to break down after 6
months. Leakage may develop.
Upon arrival on site, store the Logix 3200MD+ on a solid
base in a cool, dry, closed room. Until its installation, the
valve must be protected from the weather, dirt and other
potentially harmful influences.
Do not remove protective covers from the instrument ports
until the positioner is ready for installation at the site.

8 UNPACKING

While unpacking the valve and/or Logix
positioner, check the packing list against the materials
received. Lists describing the system and accessories are
included in each shipping container.
In the event of shipping damage, contact the shipper
immediately. Should any problems arise, contact a
Flowserve Flow Control Division representative.
9 PRE-INSTALLATION
INSPECTION
When installing a positioner, verify the shaft has not been
damaged and that the plugs and cover are in place. The
plugs keep debris and moisture from damaging the internal
components of the positioner. If the positioner has been
contaminated, clean the positioner components gently with
a soft damp cloth. Some components may be removed for
better access. See section Error! Reference source not
found.: Error! Reference source not found..
cleaning the Double Acting Relay (Spool and Block) take
care not to bend or force the spool. Check connectors to
ensure that no debris is present.
removed with a flat screwdriver for access to internal
passages.

10 PROTECTIVE CLOTHING

FLOWSERVE positioners use high pressure gas to
operate. Use eye protection when working around
pressurized equipment.
working with natural gas if it is used.
6
®
3200MD+
When
Port screens can be
Follow proper procedures for
