13 Handling the camera

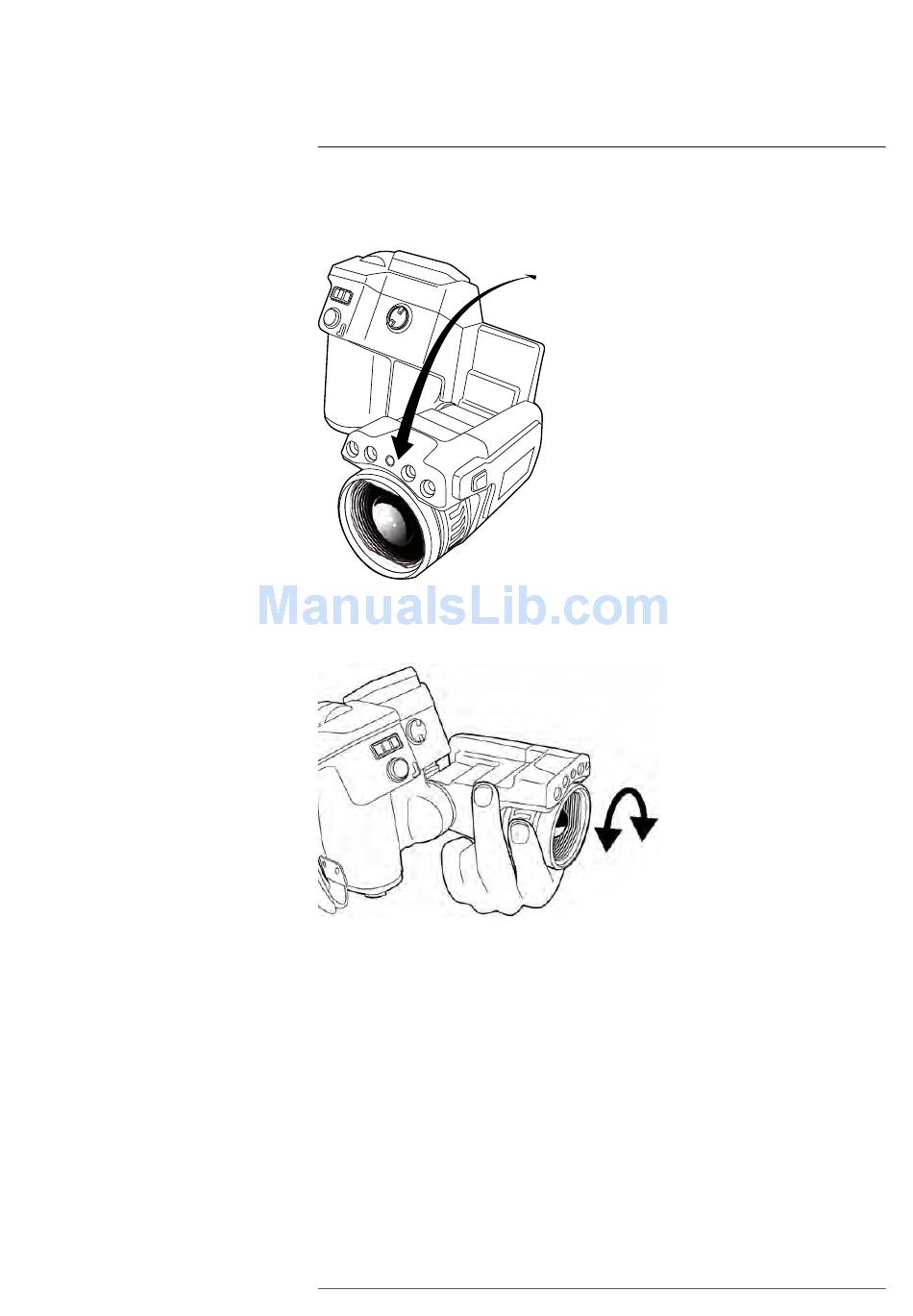

13.5 Adjusting the angle of the lens

13.5.1 Figure

13.6 Adjusting the infrared camera focus manually

13.6.1 Figure

13.6.2 Procedure

Follow this procedure:
1. Do one of the following:
• For far focus, rotate the focus ring clockwise (looking at the touch-screen LCD
side).
• For near focus, rotate the focus ring counter-clockwise (looking at the touch-
screen LCD side).
Note
• Do not touch the lens surface when you adjust the infrared camera focus manually. If
this happens, clean the lens according to the instructions in 27.2 Infrared lens, page
455.
• The focus ring can be rotated infinitely, but only a certain amount of rotation is needed
when focusing.
