KanexPro EXT-HDBASE70E Manual

4k uhd hdbaset 70 meter - hdmi extender
Hide thumbs Also See for EXT-HDBASE70E:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
EXT-HDBASE70E
4K UHD HDBaseT™ 70 Meter - HDMI® Extender
All Rights Reserved
Version: EXT-HDBASE70E_2016V1.2

Advertisement

Table of Contents
loading

Related Manuals for KanexPro EXT-HDBASE70E

Summary of Contents for KanexPro EXT-HDBASE70E

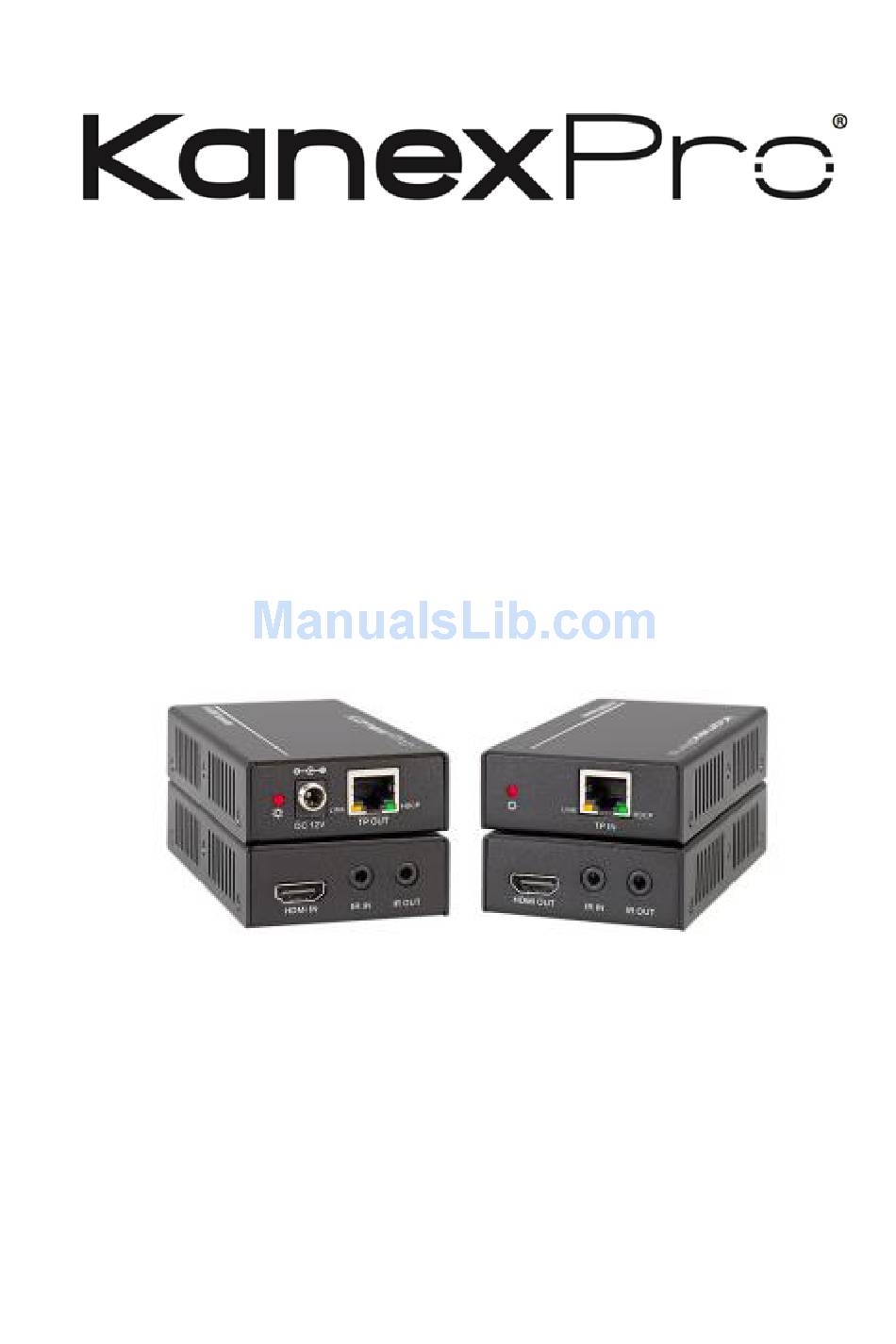

  • Page 1 EXT-HDBASE70E 4K UHD HDBaseT™ 70 Meter - HDMI® Extender All Rights Reserved Version: EXT-HDBASE70E_2016V1.2...

  • Page 2: Fcc Statement

    KANEXPRO EXT-HDBASE70E Preface Read this user manual carefully before using this product. Pictures displayed in this manual are for reference only. Different models and specifications are subject to the actual product. This manual is only for operational instruction, not for any maintenance usage. The functions described in this version are updated till Dec 2017.

  • Page 3: Safety Precautions

    KANEXPRO EXT-HDBASE70E SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference.  Unpack the equipment carefully and save the original box and packing material for potential future shipment.

  • Page 4: Table Of Contents

    KANEXPRO EXT-HDBASE70E Contents 1. Introduction ........................1 1.1 Introduction to HDBaseT Extender Set .............. 1 1.2 Features ......................1 1.3 Package List ....................... 1 2. Introduction of Product Appearance ................3 2.1 Appearance of HDBaseT Transmitter ..............3 2.2 Appearance of HDBaseT Receiver ..............4 3.

  • Page 5: Introduction

    1. Introduction 1.1 Introduction to HDBaseT Extender Set The KanexPro EXT-HDBASE70E is a 4K ready transmitter-receiver set made to extend Ultra HD 4K, digital audio, wide-band IR and power over Ethernet (PoE) over a cost effective cat6 cable. Supports computer resolutions up to 1920x1200, HD1080P/60 with Deep Color.
  • Page 6 KANEXPRO EXT-HDBASE70E  4 x detachable mounting ears  4 x screws  8 x plastic cushions  1 x power adapter (DC 12V 1A) 1 x user manual  Notes: Please confirm if the product and the accessories are all included, if not,...

  • Page 7: Introduction Of Product Appearance

    KANEXPRO EXT-HDBASE70E 2. Introduction of Product Appearance 2.1 Appearance of HDBaseT Transmitter HDMI IN: Connect to HDMI source. IR IN: Connect to an IR receiver, the IR signal received from this port can only send out via HDBaseT Receiver. IR OUT: Connect with IR emitter, the sent IR signals are received by HDBaseT Receiver.

  • Page 8: Appearance Of Hdbaset Receiver

    KANEXPRO EXT-HDBASE70E 2.2 Appearance of HDBaseT Receiver HDMI Out: Connect to HDMI display. IR IN: Connect to an IR receiver, the IR signal received from this port can only send out via HDBaseT Transmitter. IR OUT: Connect with IR emitter, the sent IR signals are received by HDBaseT Transmitter.

  • Page 9: System Connection

    KANEXPRO EXT-HDBASE70E 3. System Connection 3.1 Usage Precautions 1) System should be installed in a clean environment and has a prop temperature and humidity. 2) All of the power switches, plugs, sockets and power cords should be insulated and safety.

  • Page 10: Application

    KANEXPRO EXT-HDBASE70E 3.4 Application HDBaseT Extender Set has a good application in various occasions, such as computer realm, monitoring, big screen displaying, meeting room, education and bank & securities institution etc. 3.5 Twisted Pair Cable Connection The Cat5e/Cat6 terminations for HDBaseT devices should be a straight thru TIA/EIAT568B standard.

  • Page 11: Specification

    KANEXPRO EXT-HDBASE70E 4. Specification Model HDBaseT Transmitter HDBaseT Receiver Spec Input Input Signal 1 HDMI,1 IR 1 IR, 1 RJ-45 HDMI female 3.5mm mini jack Input Connector 3.5mm mini jack RJ-45 Video Signal HDMI1.4 HDMI1.4 Digital audio, transmit Digital audio, transmit...

  • Page 12: Supported Resolution

    KANEXPRO EXT-HDBASE70E 4.1 Supported Resolution Format Resolution HDMI 480I, 480P, 576I, 576P, 720P, 1080I, 1080P, 4Kx2K, 1080P 3D 640x480@60Hz, 640x480@72Hz, 640x480@75Hz, 800x600@60Hz, 800x600@72Hz, 800x600@75Hz, 1024x768@60Hz, 1024x768@70Hz, 1024x768@75Hz, 1280x720@60 Hz, 1280x1024@60Hz, 1280x1024@75Hz, 1600x1200@60Hz, 1920x1080@60Hz, 1920x1200@60Hz Note: HDBaseT Extender Set supports 4k&1080p 3D HDMI signal, please adopt...

  • Page 13: Panel Drawing

    KANEXPRO EXT-HDBASE70E 5. Panel Drawing 61.60 mm LINK HDCP DC 12V TP OUT 24.00 mm 7.21 mm 12.50 mm HDMI IN IR IN IR OUT HDBaseT Transmitter 61.60 mm LINK HDCP TP IN 24.00 mm 7.21 mm 12.50 mm HDMI OUT...

  • Page 14: Troubleshooting & Maintenance

    KANEXPRO EXT-HDBASE70E 6. Troubleshooting & Maintenance  No image on display:  Ensure that the display device has been set to the correct input.  Ensure that the HDMI cables used for both the source/transmitter and the receiver/display are properly connected and are working. Test the HDMI cables directly from a source to display and ensure their operation.

  • Page 15: After-Sales Service

    KANEXPRO EXT-HDBASE70E 7. After-sales Service If problems arise when operating the device, please refer to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: We warrant that products will be free from defects in materials and workmanship for three years, which starts from the first day the product exits warehouse.

  • Page 16: Warranty

    KanexPro has been advised of the possibility of such damages.
  • Page 17 KANEXPRO EXT-HDBASE70E 1405 pioneer street Brea, CA 92821...
