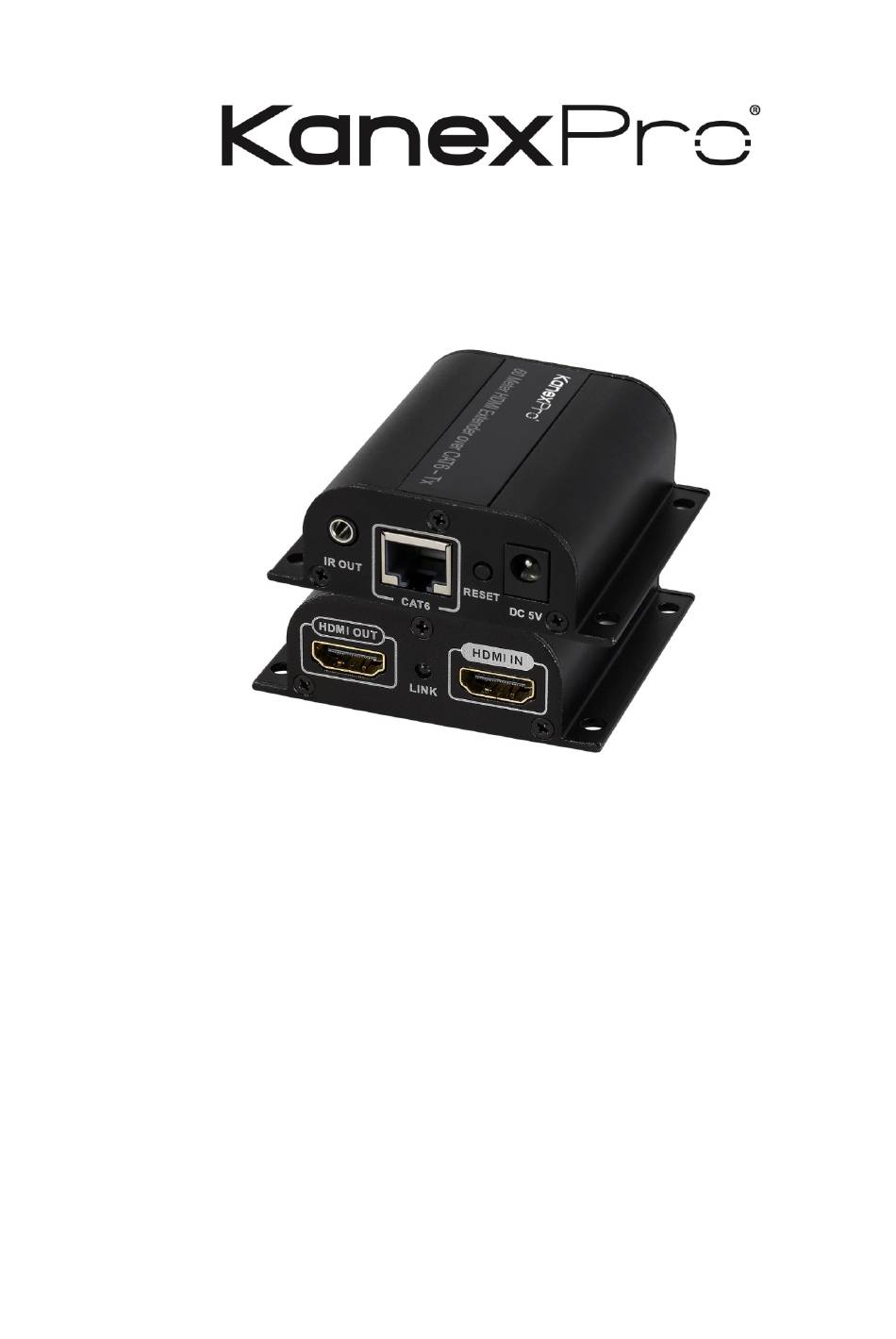

- Page 1 EXT-HD60M HDMI Extender over CAT6/6a up to 196ft(60M) USER MANUAL...
-
Page 2: Table Of Contents
KANEXPRO EXT-HD60M 1) Introduction ..................... 2 2) Applications: ..................... 2 3) Features: ....................2 4) Safety Precautions ..................3 5) Package Includes ..................3 6) Installation Requirements ................3 7) Panel Description ..................4 8) Installation Procedures ................5 9) Specification ..........Error! Bookmark not defined. -
Page 3: L 1) Introduction
KANEXPRO EXT-HD60M l 1) Introduction The KanexPro EXT-HD60M is a compact HDMI Extender with local HDMI output designed to carry DVI/ HDMI signals over distances beyond the capability of standard HDMI/ DVI cable. It extends video and audio over a single CAT6 cable up to 196ft. -
Page 4: L 4) Safety Precautions
KANEXPRO EXT-HD60M l 4) Safety Precautions 1. Do not mix up HDMI to RJ45 Transmitter and RJ45 to HDMI Receiver before installation. 2. Do not hot plug when it is working. 3. Use DC5V power supply only. Make sure specification matches if using Adapters not supplied by the factory. -
Page 5: L 7) Panel Description
KANEXPRO EXT-HD60M l 7) Panel Description Transmitter Receiver P a g e... -
Page 6: L 8) Installation Procedures
KANEXPRO EXT-HD60M l 8) Installation Procedures 1. Cat6 network cable Follow the standard of IEEE-568B: 1- Orange/white 5- Blue/white 2- Orange 6- Green 3- Green/white 7- Brown/white 4- Blue 8- Brown 2. Connection Diagram 3. Connection instruction: 1) Connect HDMI source to the Tx HDMI Input 2) Connect cat6 cable between Tx and Rx 3) Connect RX HDMI output with HDTV HDMI input. -
Page 7: L 10) Troubleshooting
KANEXPRO EXT-HD60M l 9) Specification Items Specifications HDMI signal Compatible with HDCP 1.4 Support resolutions 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz Network cable Low resistance and consumption oxygen-free Copper core (CAT6, CAT6A, CAT7) Transmission length CAT6: 60m at 1080p... -
Page 8: L 11) After-Sales Service
Product that does not meet this Limited Warranty and which is returned to KanexPro with a copy of customers’ receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. - Page 9 KanexPro has been advised of the possibility of such damages.
