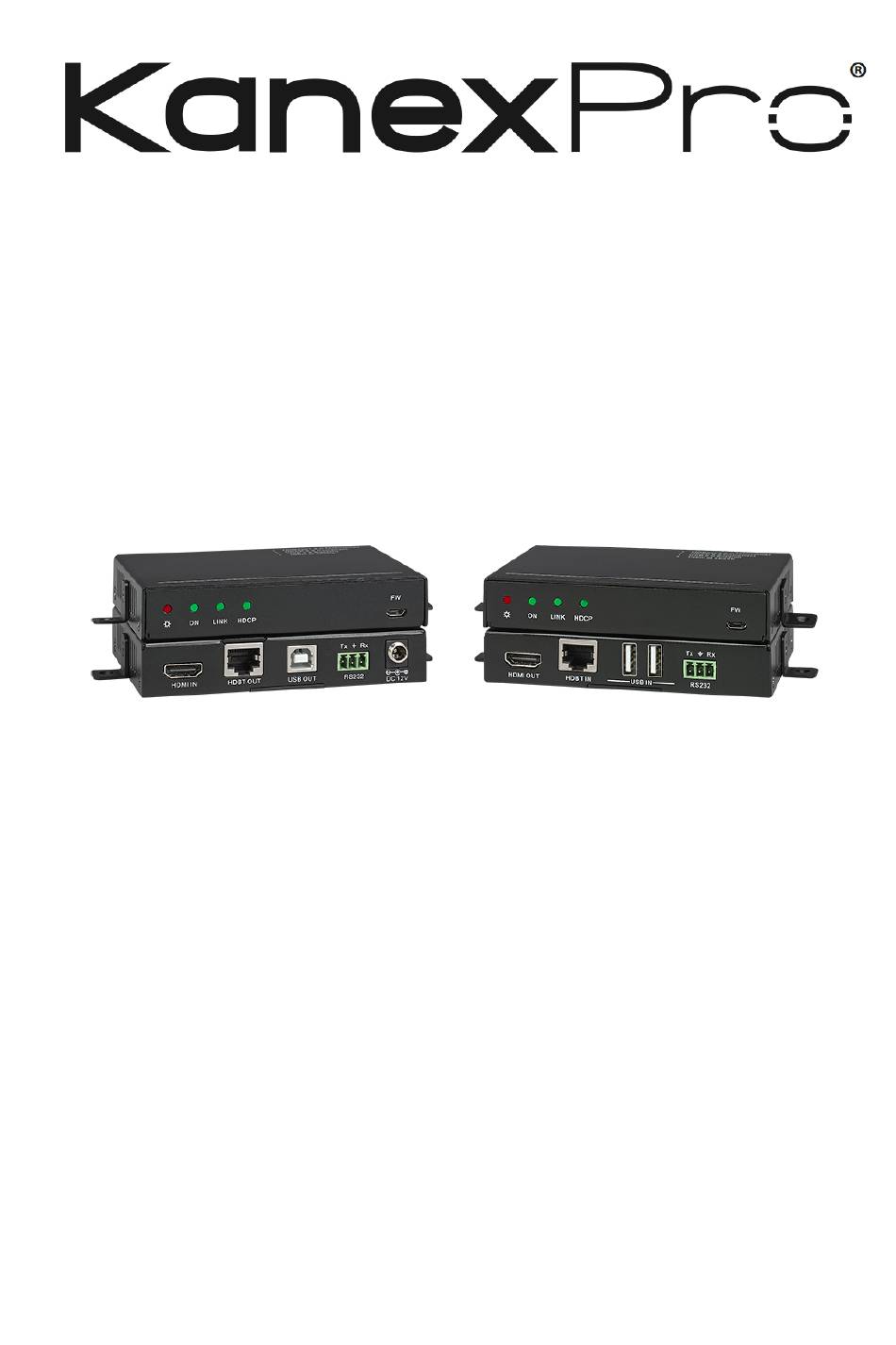

- Page 1 EXT-HDBTKVM100 4K HDBaseT 2.0™ Extender w/ HDMI® & USB 2.0 KVM support Extend HDMI, USB 2.0, and RS-232 & Power over HDBaseT up to 150 meters (492 feet) All Rights Reserved Version: EXT-HDBTKVM100_2016V1.0...
- Page 2 HDBaseT 2.0 KVM Extender Set Preface Read this user manual carefully before using this product. Pictures shown in this manual is for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage. The functions described in this version are updated till February 2016.
- Page 3 HDBaseT 2.0 KVM Extender Set SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. l Unpack the equipment carefully and save the original box and packing material for possible future shipment l...
-
Page 4: Table Of Contents
HDBaseT 2.0 KVM Extender Set Contents 1. Introduction ........................1 1.1 Introduction to EXT-HDBTKVM100 ..............1 1.2 Features ......................1 1.3 Packing List ......................1 2. Panel Description ......................1 2.1 Transmitter (EXT-HDBTKVM100T) ..............1 ... -
Page 5: Introduction
1. Introduction 1.1 Introduction to EXT-HDBTKVM100 Compliant with HDMI 2.0 & HDCP 2.2, The KanexPro EXT-HDBTKVM100 is a 4K HDMI Extender set developed with the latest HDBaseT™ 2.0 technology to extend uncompressed HDMI video, audio, USB 2.0, control signals and PoH over a single CAT5e/6 cable. -
Page 6: Panel Description
HDBaseT 2.0 KVM Extender Set 2. Panel Description 2.1 Transmitter (EXT-HDBTKVM100T) 100m / 150m Front LINK HDCP MODE Rear HDMI IN HDBT OUT USB OUT RS232 DC 12V Name Description Power: ü OFF: No power ü RED: DC power present ON: Working status indicator ü... -
Page 7: Receiver (Ext-Hdbtkvm100R)
HDBaseT 2.0 KVM Extender Set with our after-sales department for more details. ④ HDMI IN Connect with HDMI source Connect to the HDBT IN port on rear panel of the Receiver via ⑤ HDBT OUT CAT5e/ CAT6a cable, compliant with HDBT2.0 and support bi-directional PoH. - Page 8 HDBaseT 2.0 KVM Extender Set Ø GREEN: Traffic with HDCP Blinking GREEN: Traffic without HDCP Ø Activate 100m/ 150m-transmission mode. ü 100m mode: 4Kx2K@60Hz and 1080P signals can be transmitted up to 100m Transmission ü 150m modes: 1080P signal can be transmitted up to 150m, ②...
-
Page 9: System Connection
HDBaseT 2.0 KVM Extender Set 3. System Connection 3.1 Usage Precautions 1) System should be installed in a clean environment and should have optimal temperature and humidity. 2) All the power switches, plugs, sockets and power cords should be insulated for reliable transmission and safety. - Page 10 HDBT Transceiver receives RS232 control from devices with various baud rate (2400, 4800, 9600, 19200, 38400, 57600, 115200). HDBT ports can work with existing KanexPro HDBT products that have same power supply solution. Make sure the switchers on front panel are in the necessary status.
-
Page 11: Application
HDBaseT 2.0 KVM Extender Set 3.5 Application Ideal for applications such as Digital Signage where high-resolution video, audio and USB KVM function and data diagnostics can be sent back to the computer from the QSR display or vice versa. -
Page 12: Specification
HDBaseT 2.0 KVM Extender Set 4. Specifications Model EXT-HDBTKVM100T EXT-HDBTKVM100R Spec Audio& Video 1 HDBT (RJ45 female) Input 1 HDMI (19 pin Type-A male) 2 USB IN (Type-A) 1 HDBT (RJ45 female) Output 1 HDMI (19 pin Type-A male) 1 USB OUT (Type-B) Other 1 RS-232 (3-pin pluggable terminal block) Signal Standard... -
Page 13: Supported Resolution
HDBaseT 2.0 KVM Extender Set 4.1 Supported Resolution 4Kx2K 4096x2160@30Hz, 3840x2160 (30Hz/24Hz/25Hz/50Hz/60Hz) 1080P 3D, 1920x1080@60Hz, 1600x900@60Hz, 1366x768@60Hz, 16:9 1280x720@60Hz, 1024x576@60Hz 1920x1200@60Hz, 1680x1050@60Hz, 1440x900@60Hz, 16:10 1360x768@60Hz, 1280x800@60Hz 1600x1200@60Hz, 1400x1050@60Hz, 1280x1204@60Hz, 1024x768@60Hz, 800x600@60Hz, 640x480@60Hz 21:9 2560x1080 (30/60Hz) & HDBaseT Transceiver supports 4K &1080p 3D HDMI signal; please use quality HDMI cables compliant with HDMI2.0 for optimum range, resolution and performance. -
Page 14: Panel Drawing
HDBaseT 2.0 KVM Extender Set 5. Panel Drawing HDMI IN HDBT OUT USB OUT RS232 DC 12V 100m at 4Kx2K, 150m at 1080P HDBaseT 2.0 Technology HDCP 2.2 Compliant USB 2.0 Support Bi-directional PoC EXT-HDBTKVM100T HDBaseT 2.0 Transmitter with USB 116 mm 100m / 150m LINK...
