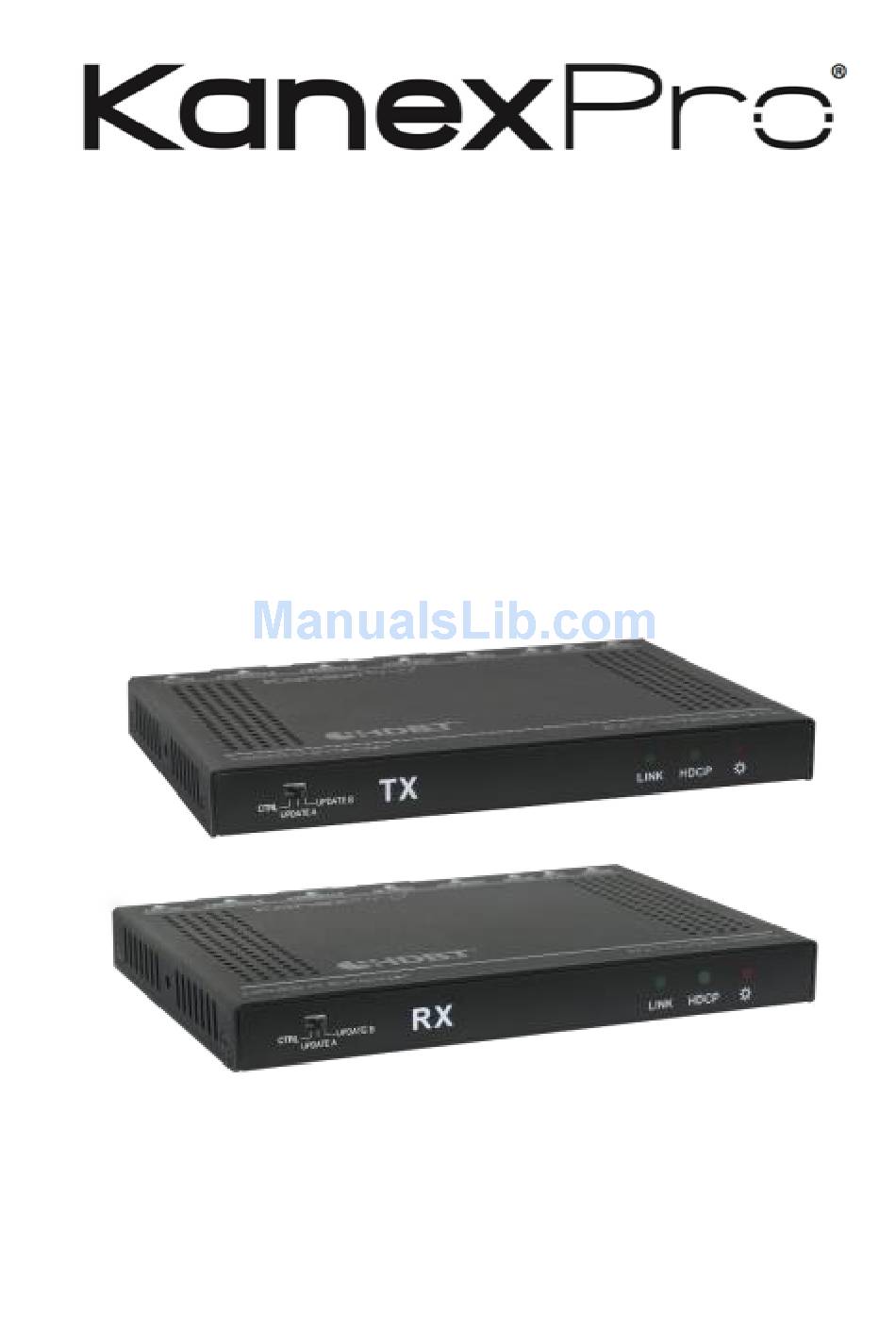

- Page 1 EXT-100SL18G UltraSlim 4K/60 HDMI® 2.0 Extender over HDBaseT™ up to 330ft. (100m) & PoH All Rights Reserved Version: EXT-100SL18G_2017V1.0...
- Page 2 (The purchase invoice shall prevail). Introduction The KanexPro EXT-100SL18G extender is an UltraSlim 4K /60Hz transmitter - receiver set designed to extend natural and uncompressed ultra HD 4K signals from your HDMI source device to a 4K display remotely located 230 feet away and full HD 1080p signals up to 330ft.(100m). It also supports PoH (power over HDBaseT) requiring you to power only from one side, either the sender or receiver.
- Page 3 Ultra Slim enclosure w/ separate mounting ears One locking power supply included Backed by KanexPro 3-year parts and labor warranty Note: Please use a CAT5e/6 cable with low impedance (Shielded twisted pair is recommended with proper grounding) for excellent transmission of AV signals.
-
Page 4: Panel Description
HDBaseT Extender Set Package List 1 x Transmitter 1 x Receiver 4 x Mounting ears & 4 x Screws 8 x Plastic Cushions 2 x RS232 Cables (3-pin to DB9) 1 x Power adaptor (24VDC,1.25A) ... -
Page 5: System Diagram
HDBaseT Extender Set internet access, and the others can relate to computers. If connect successfully and work normally, the yellow LED will keep blink and the green one will keep on. Support bi-directional PoH, one of ports should relate to DC24V DC 24V power ports ⑪...
