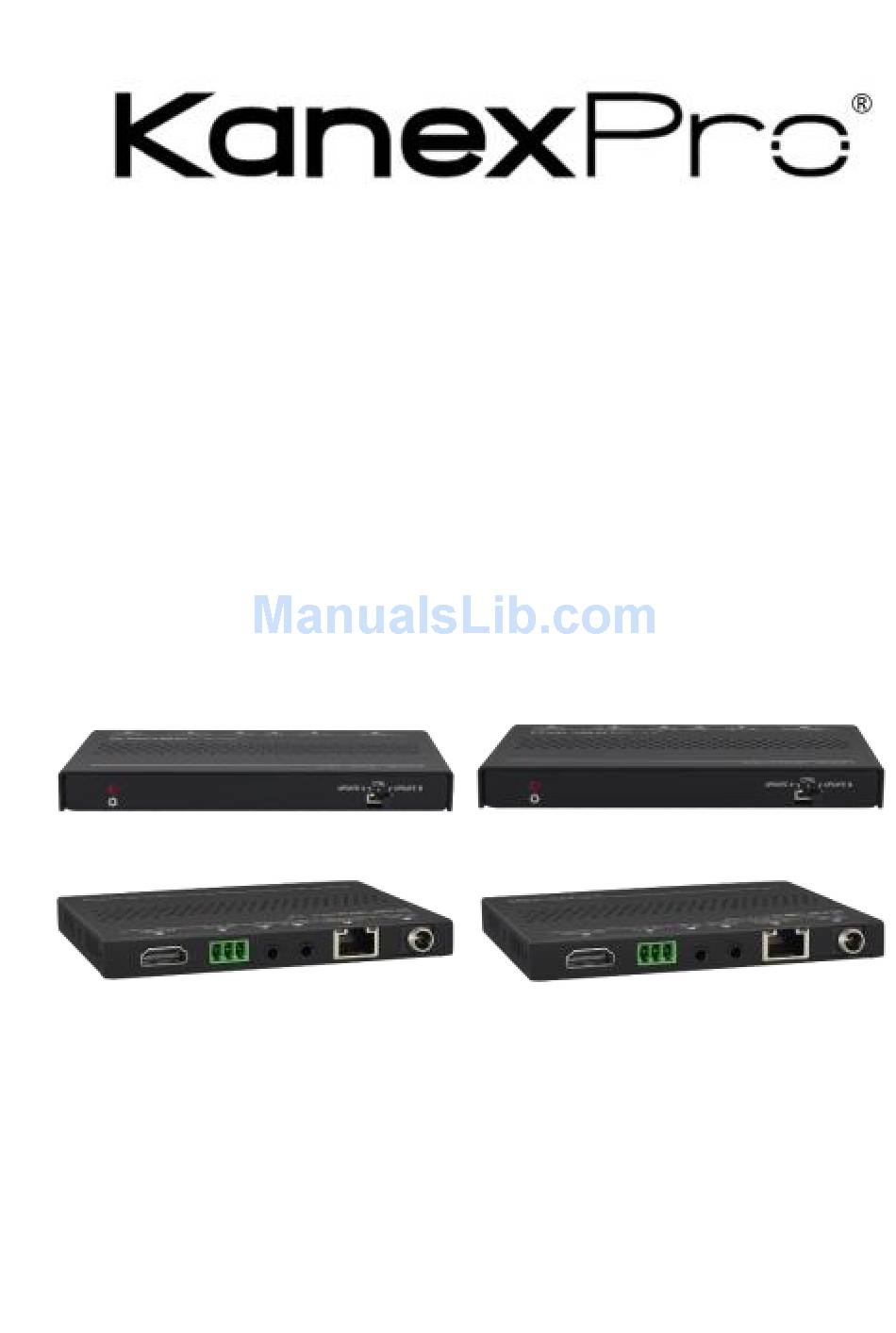

- Page 1 EXT-70SL18G Ultra-thin HDMI2.0 Extender 131ft/40m 4K UHD All Rights Reserved Version: EXT-70SL18G_2017V1.0...
-
Page 2: Safety Precaution

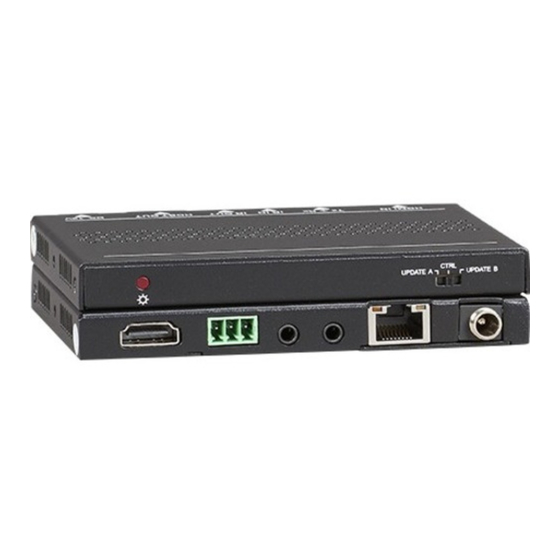

(The purchase invoice shall prevail). For any questions or problems, please try to get help from your local distributor, AV dealer or call us directly at 888-975-1368 or email us at: support@kanexpro.com. Introduction This product is an ultra-thin HDMI2.0 Extender consist of transmitter and receiver. It extends 1080p/4K HDMI signal over CAT5e/CAT6a cable up to 70m /40m (PoC), and enables IR and RS232 pass-through to control source or display device remotely. -
Page 3: Package List
Ultra-thin HDMI2.0 Extender Features Supports 4K/UHD/60Hz/4:4:4 Supports HDMI2.0 & HDCP2.2, and is backward compatible to the previous version. Maximum transmission distance is up to 40m for 4Kx2K, and 70m for 1080p. Supports CEC, IR and RS232 pass-through for long-distance control. ... -
Page 4: Specifications
Ultra-thin HDMI2.0 Extender Work with far-end IR IN port, connect with IR Emitter to send IR ⑥ IR OUT signal to control input source device from remote. HDBT Connect to the HDBT IN socket on Receiver via CAT5e/6a cable. ⑦ OUT(Transmitter) HDBT IN (Receiver) Connect to the HDBT OUT socket on Transmitter CAT5e/6a cable. -
Page 5: System Diagram
Ultra-thin HDMI2.0 Extender System Diagram 4K 40m,1080P 70m CATx: HDMI: RS232: Power: Transmitter Receiver IR Emitter IR Receiver IR Receiver IR Emitter TV Remote Blu-Ray Remote 4K Blu-Ray Laptop HDTV...
