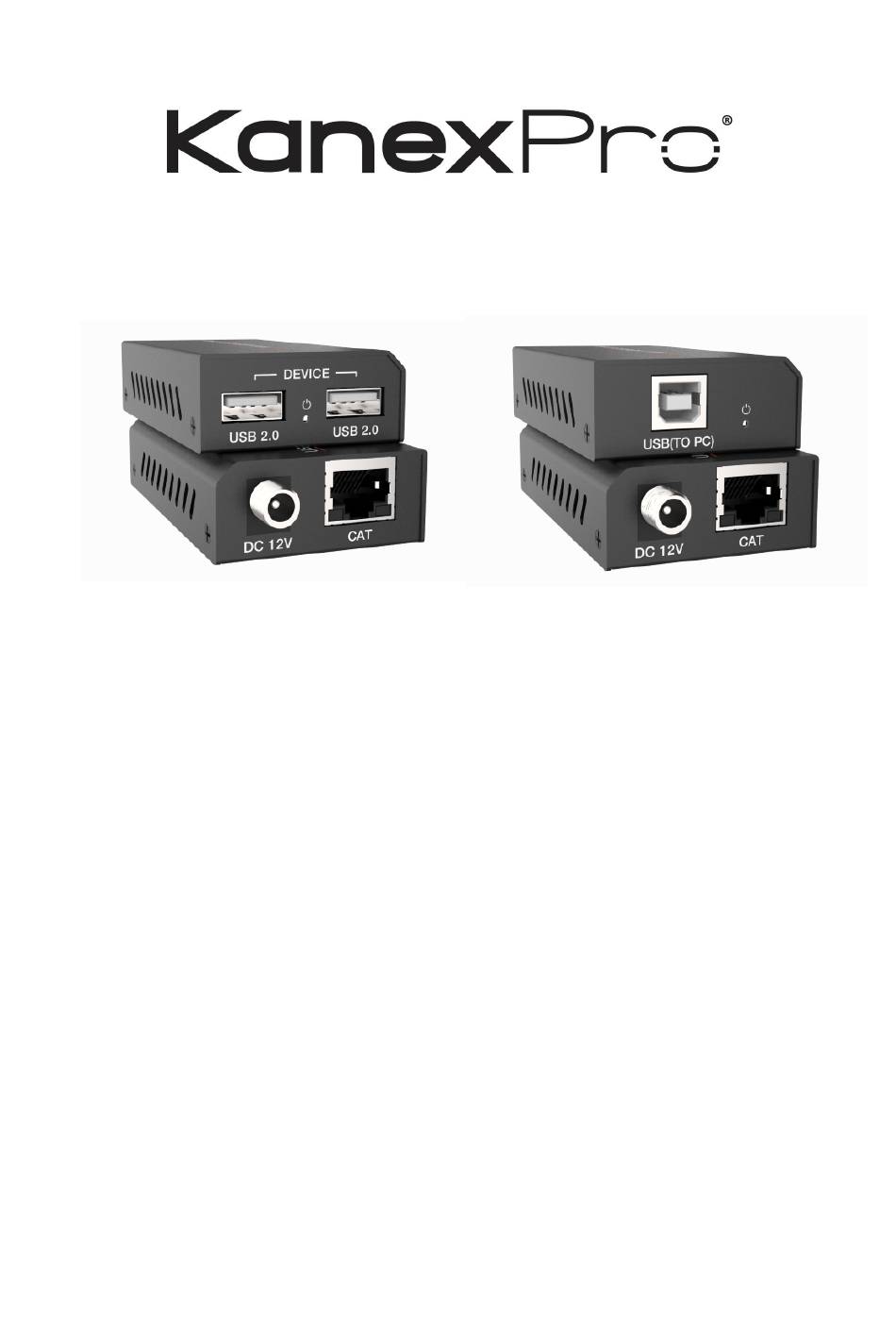

- Page 1 USB 2.0 Extender over Cat6 100 Meters All Right Reserved MPN: EXT-USB2100M VER 1.0...
-
Page 2: Table Of Contents
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 3: Introduction

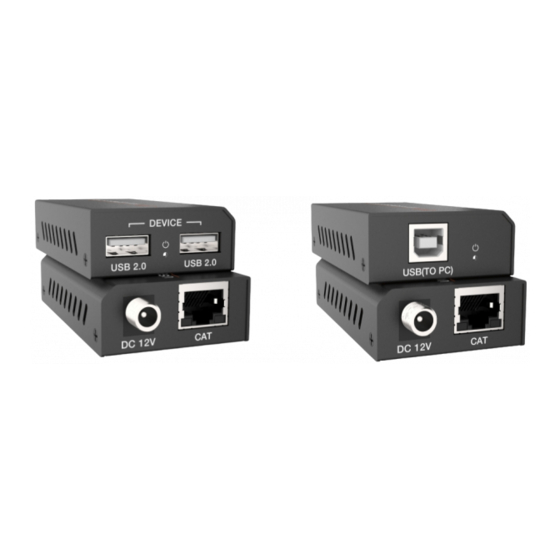

1. Introduction The KanexPro EXT-USB2100M extender is a compact USB 2.0 transmitter - receiver set designed to extend USB 2.0 (480Mbps) signals from a Printer, touch screen, USB hub, USB camera or Human Interface Device (HID) to a Host PC remotely located 328 feet away. -
Page 4: Specifications
⑤ 1× User Manual 4. Specifications Technical USB protocol USB 2.0 Transmission rate Up to 480Mbps Transmission distance 100M (328ft) ESD Protection Human-body Model：±8kV (Air-gap discharge) , ±4kV (Contact discharge) Connections Transmitter Input port: 1×USB [USB-B, female] Output port: 1×CAT [RJ45, female] Receiver Input port: 1×CAT [RJ45, female]... -
Page 5: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Front Panel Number Name Function description USB port Use USB-B male head to USB-A male head wire to connect USB port of a PC. Note: The PC can control USB ports’ device of the receiver. -
Page 6: Rear Panel
5.2 Rear Panel Number Name Function description USB 2.0 port Connect to a device with USB port such as printer or U disk, etc. POWER LED Power LED indicator. The green LED will illuminate when the receiver is connected power supply. DC 12V Plug 12V/1A DC power supply into the unit and connect the adapter to an AC outlet. -
Page 7: Connection Diagram
6. Connection diagram 7. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and ① Warranty conditions hereinafter. There terms and conditions may be changed without prior notice. The limited warranty period of the product is fixed 3 (three) years. ②... - Page 8 Remarks: For further assistance or solutions, please contact your local distributor, or email directly to us at support@kanexpro.com...
