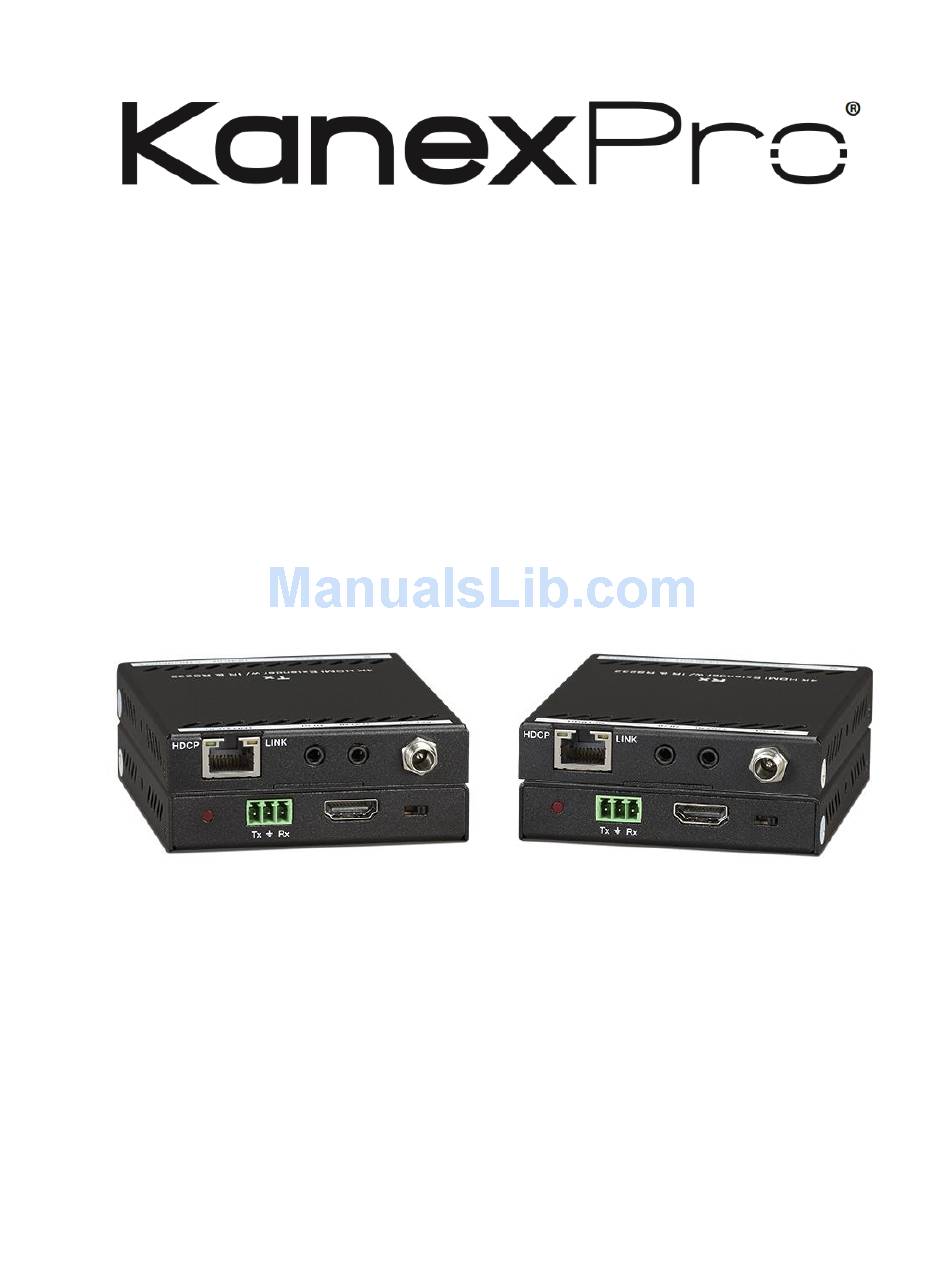

- Page 1 EXT-HDBT70C 4K/30 HDMI® Extender over HDBaseT™ All Rights Reserved MPN: EXT-HDBT70C...
-
Page 2: Safety Precaution

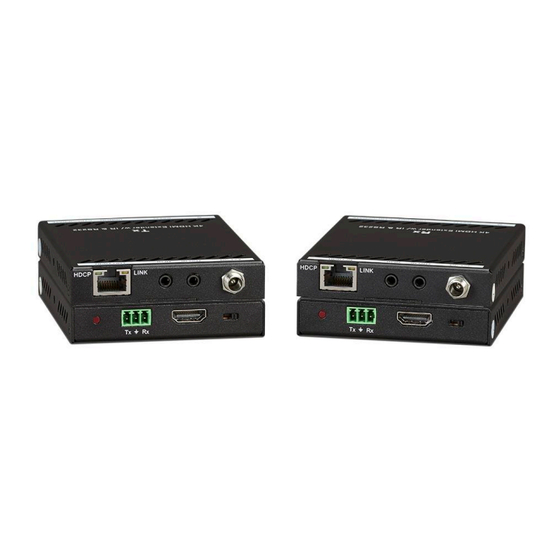

For more details, please contact your distributor. Introduction The KanexPro EXT-HDBT70C is an HDCP 2.2 compliant extender set consisting of a transmitter and receiver. It uses HDBaseT technology to transmit uncompressed, high- resolution 1080p/ 4K signals from transmitter to the receiver via a CAT5e/CAT6a cable... -
Page 3: Package List
EXT-HDBT70C Features Extend pristine 4K/30 with bi-directional PoC, IR & RS-232 up to 40m Extend full HD 1080p/60 with bi-directional PoC, IR & RS-232 up to 70m Control bi-directional 5V IR and RS232 pass-through for long-distance control Powered over Cable – only one power supply to power both devices Supports CEC, HDMI 1.4 &... -
Page 4: Specification
EXT-HDBT70C Specification Transmitter (TX) Input HDMI IN Output HDBT OUT Control IR IN, IR OUT, RS232 Receiver (RX) Input HDBT IN Output HDMI OUT Control IR IN, IR OUT, RS232 General Maximum Video Resolution 4K×2K@60Hz 4:2:0, including 1080p@60Hz Transmission Mode... -
Page 5: System Diagram
EXT-HDBT70C System Diagram HDMI: RS232: HDBaseT: 1080P 70m 4K@60Hz 4:2:0 40m Receiver Emitter Receiver Emitter Projector Laptop Blu-Ray DVD Projector Remote Blu-Ray Remote Note: This picture is for reference only, the specific scheme is subject to real devices. - Page 8 Brea, California www.kanexpro.com...
