- Page 1 100M Wireless HDMI Extender All Right Reserved MPN: EXT-18GHDMIWL VER 1.0...
- Page 2 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

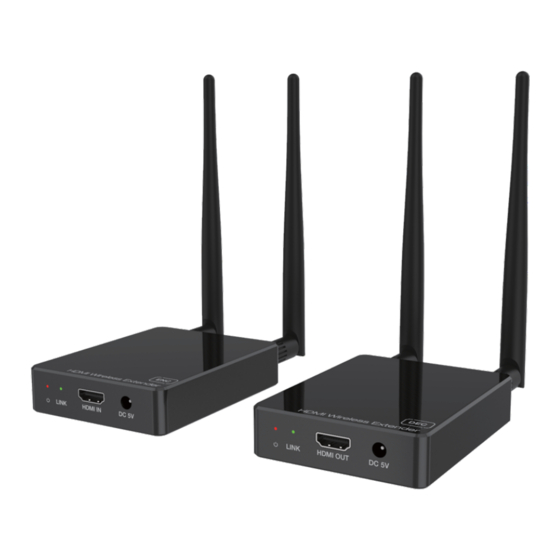

- Page 3 1. Introduction The KanexPro EXT-18GHDMIWL 100M Wireless extender is a compact HDMI transmitter - receiver set designed to extend HD (1080p) video signals from a source to a display which can be remotely located up to 328 feet away. This wireless system is based on powerful low-bandwidth H.265 compression reducing the latency and signal dropouts.
- Page 4 4. Specifications Technical HDMI Compliance HDMI 1.3 HDCP Compliance HDCP 1.4 Video Bandwidth 6.75Gbps 1080p, 1080i, 720p, 720i, 480p, 480i, the maximum up to 1920×1080@60Hz Video Resolution The PC resolution is up to 1920×1200@60Hz Color Space RGB/YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0 Color Depth 8/10/12-bit HDMI Audio Formats...
- Page 5 5. Operation Controls and Functions Transmitter Panel Name Function description Power LED Red LED indicates that the encoder is powered. Illuminate: Pair success. ■ LINK LED Flicker quickly: The encoder is pairing. ■ (Green) Flicker slowly: The encoder and decoder are transmitting ■...
- Page 6 5.3 Pairing Instruction Power on the transmitter and receiver then press simultaneously the PAIR button for three seconds, and the LINK LEDs will flicker quickly. If the LINK LEDs change from flicker quickly to indicate that means pair success. Then let go of your hands and the LINK LEDs are off. When the transmitter and receiver have signal transmission then the LINK LEDs will flicker slowly.
- Page 7 The following is IR system diagram about IR cable use method. Transmitter Receiver DVD remote 7. Application Example 100M. The transmission distance extends up to Transmitter Receiver DVD or Blu-ray Player...
- Page 8 7. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. ① Warranty The limited warranty period of the product is fixed 3 (three) years. ②...
