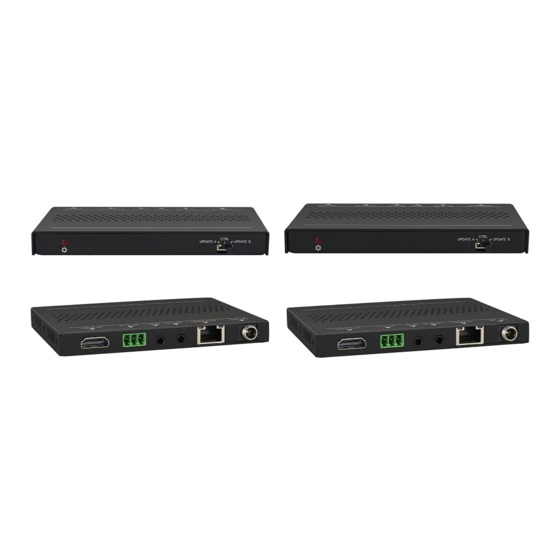

- Page 1 User Manual MPTP-T70S-H2 Ultra-thin HDMI2.0 Extender 131ft/40m 4K UHD All Rights Reserved Version: MPTP-T70S-H2_2017V1.0...
- Page 2 Ultra-thin HDMI2.0 Extender Statement Read this user manual carefully before using the product. Pictures shown in this manual is for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction only. The functions described in this version are updated till August 30, 2017.
- Page 3 Ultra-thin HDMI2.0 Extender Features Supports 4K/UHD/60Hz/4:4:4 Supports HDMI2.0 & HDCP2.2, and is backward compatible to the previous version. Maximum transmission distance is up to 40m for 4Kx2K, and 70m for 1080p. Supports CEC, IR and RS232 pass-through for long-distance control. ...
- Page 4 Ultra-thin HDMI2.0 Extender HDBT OUT(Transmitter) Connect to the HDBT IN socket on Receiver via CAT5e/6a cable. ⑦ HDBT IN (Receiver) Connect to the HDBT OUT socket on Transmitter CAT5e/6a cable. Support bi-directional PoC, one of ports should be connected with ⑧...
