Summary of Contents for KanexPro EXT-4KFIBERPRO

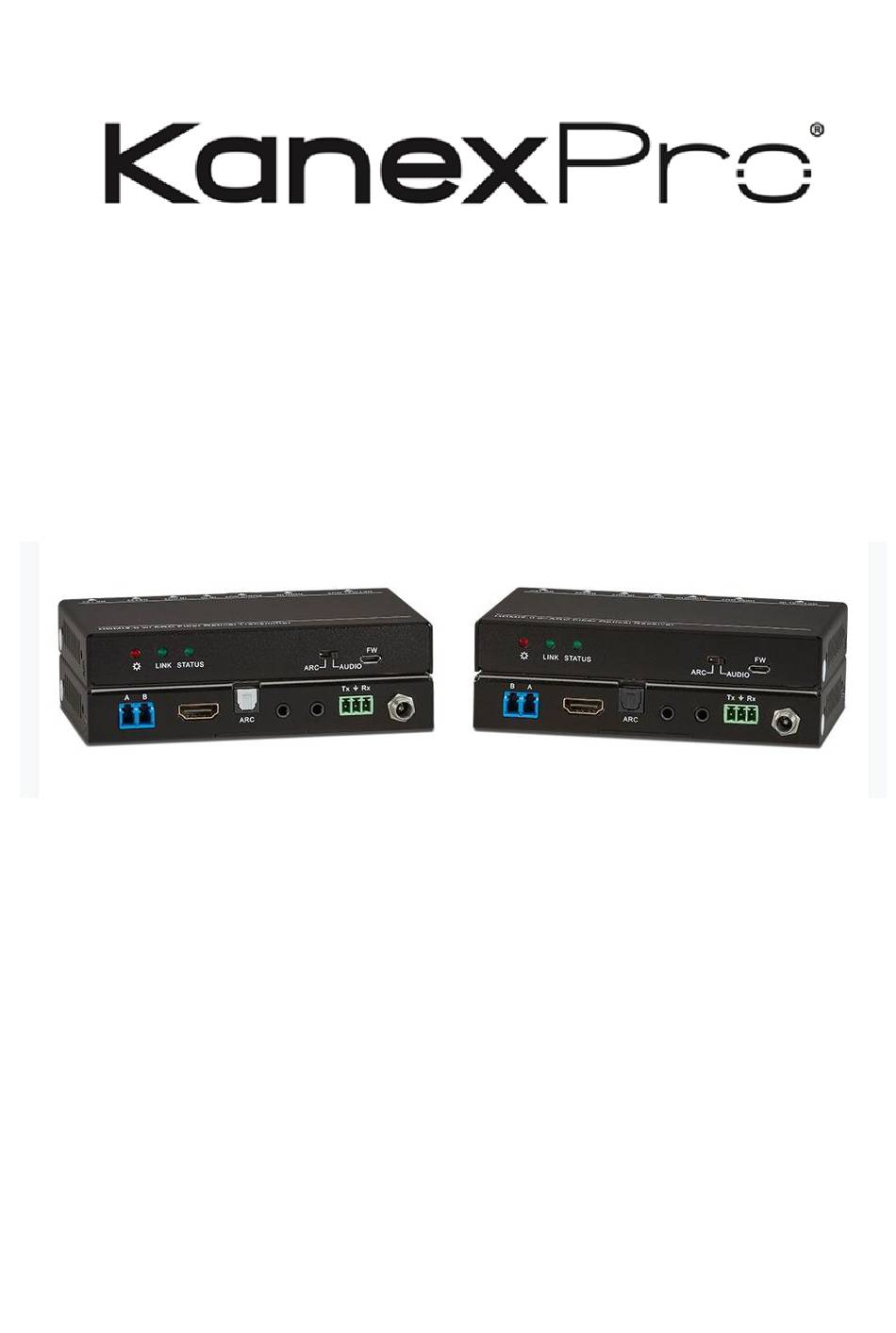

- Page 1 EXT-4KFIBERPRO HDMI® 2.0 Fiber Optic Extender with 4K/60 up to 300 meters Extend 4K Video, Audio & Control over Fiber up to 984ft. (300m) with HDR, Dolby Vision & ARC All Rights Reserved Version: EXT-4KFIBERPRO_2019V1.3...
-
Page 2: Fcc Statement
4K/60 Fiber Optical Extender Set Preface Read this user manual carefully before using the product. Pictures are shown in this manual for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance. -
Page 3: Safety Precautions
4K/60 Fiber Optical Extender Set SAFETY PRECAUTIONS To ensure the best performance from this product, please read all instructions carefully before using the device. Save this manual for future reference. Unpack the equipment carefully and save the original box and packing material for ⚫... -
Page 4: Table Of Contents
4K/60 Fiber Optical Extender Set Table of Contents 1. Product Introduction ....................1 2. Features ........................1 3. Package List ........................ 1 4. Specification ........................ 3 5. Panel Description ......................4 5.1 Transmitter ......................4 5.2 Receiver ......................5 6. System Connection ..................... 6 7. -
Page 5: Product Introduction
4K/60 Fiber Optical Extender Set 1. Product Introduction The KanexPro EXT- 4KFIBERPRO is an HDMI 2.0 extender set engineered to extend 4Kx2K@60Hz with 4:4:4 Chroma Sampling rate and HDR up to 984ft. (300m) at zero latency. Compliant with HDCP 2.2, the set includes one transmitter and one receiver via two- single mode optical fiber ports or two OM3/OM4 multi-mode fiber cables. - Page 6 4K/60 Fiber Optical Extender Set ▪ 4x Mounting Ears ▪ 16x Mounting Screws ▪ 8x Plastic Cushions ▪ 1x User Manual Note: Please contact your distributor immediately if any damage or defect in the components is found.
-
Page 7: Specification
4K/60 Fiber Optical Extender Set 4. Specification Transmitter Input 1 x HDMI IN Input Connector 1 x Type-A female HDMI Output 2 x OPTICAL OUT; 1 x AUDIO OUT Output Connector 2 x LC connector; 1 x Toslink connector Control 1 x IR IN;... -
Page 8: Panel Description
4K/60 Fiber Optical Extender Set 5. Panel Description 5.1 Transmitter LINK STATUS AUDIO Name Description ① Power LED Turns red when DC power present. Turns green when the transmitter and receiver link ② Link status LED successful. Turns green when the signal data is transmitted between ③... -
Page 9: Receiver
4K/60 Fiber Optical Extender Set 5.2 Receiver LINK STATUS AUDIO 1 2 3 Name Description ① Power LED Turns red when DC power present. Turns green when the transmitter and receiver link ② Link status LED successful. Turns green when the signal data is transmitted between ③... -
Page 10: System Connection
4K/60 Fiber Optical Extender Set 6. System Application Usage Precautions: Make sure all components and accessories included before installation. ⚫ System should be installed in a clean environment with proper temperature and ⚫ humidity. All of the power switches, plugs, sockets, and power cords should be insulated and ⚫... -
Page 11: Connection Procedure
4K/60 Fiber Optical Extender Set Mode ①: Transmitter: ARC; Receiver: ARC The audio signal is transmitted from the display back to HDMI IN and AUDIO OUT ports. 300m HDMI: Audio: Optical: Control: Transmitter : ARC Receiver: ARC TV Remote Speaker IR Emitter Blu-Ray DVD APMLIFIER... - Page 12 4K/60 Fiber Optical Extender Set Mode ②: Transmitter: ARC; Receiver: AUDIO The audio signal is transmitted from the AUDIO IN to HDMI IN and AUDIO OUT ports. 300m HDMI: Audio: Optical: Control: Transmitter: ARC Receiver:AUDIO TV Remote Speaker Speaker Blu-Ray DVD APMLIFIER TV Remote Display...
- Page 13 4K/60 Fiber Optical Extender Set Mode ④:Transmitter: AUDIO; Receiver: AUDIO The audio signal is transmitted from the AUDIO IN to the AUDIO OUT port. 300m HDMI: Audio: Optical: Control: Transmitter: AUDIO Receiver: AUDIO TV Remote Blu-Ray DVD Digital Radio Speaker TV Remote Display IR Emitter...
-
Page 14: Panel Drawing
4K/60 Fiber Optical Extender Set 7. Panel Drawing HDMI2.0 w/ ARC Fiber Optical Transmitter 130 mm LINK STATUS AUDIO 6-1 Transmitter HDMI2.0 w/ ARC Fiber Optical Receiver 130 mm LINK STATUS AUDIO 6-2 Receiver... -
Page 15: Troubleshooting & Maintenance
EDID data before using. Note: If your problem still persists after following the above troubleshooting steps, please contact your local dealer or distributor for further assistance. Or call us directly at (888) 975-1368 or email to support@kanexpro.com... -
Page 16: Customer Service
4K/60 Fiber Optical Extender Set 9. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. 1) Warranty The limited warranty period of the product is three years parts and labor from the date of purchase.
