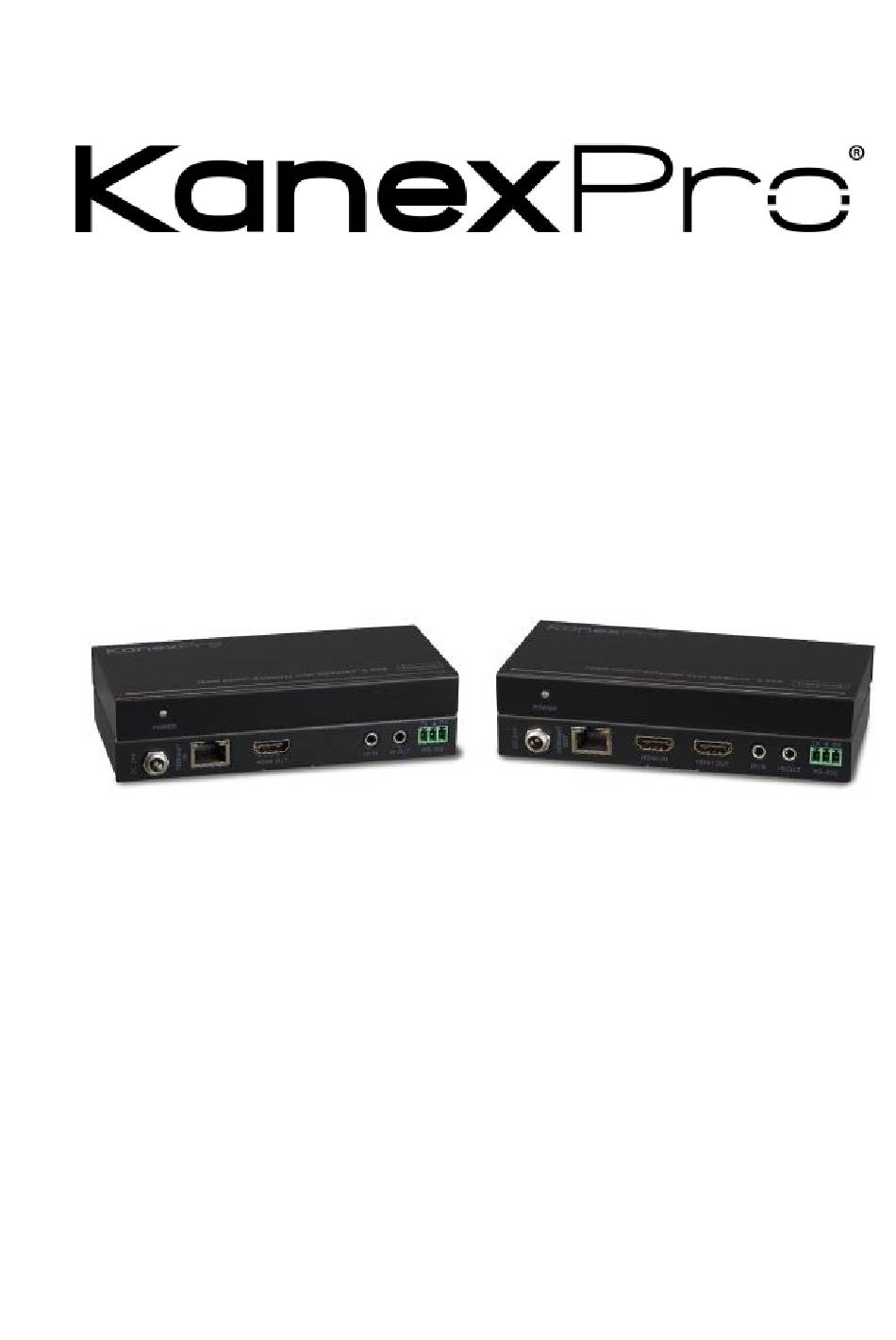

- Page 1 150 meter HDMI® Extender over HDBaseT™ w/POE, IR & RS-232C Version 1.1 All rights reserved by KanexPro and changes may be added without any notification to the customer. Please look out for the latest update on the product page. 1 / 13...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. - Page 3 Caution The extender needs to follow direct interconnection method CAT cable. We recommend use a solid CAT6a shielded or better for the longer run. The extender will go into protection mode automatically and no video out when using cross interconnection method CAT cable. 3 / 13...
-
Page 4: Introduction
1. Introduction The KanexPro EXT-HDBT150M is a transmitter - receiver set that enables you to route 1080P/60 HD signals up to 492 feet (150 meters) over single CAT6 cable using HDBaseT Technology. It supports the latest HDCP 2.2 with EDID pass-through. -
Page 5: Package Contents
• Bi-directional RS -232 protocol transmitted over CAT6 • Bi-directional IR control transmitter over CAT6 • Compact aluminum enclosure • External power supply (100V-240V AC, 50/60Hz) • Backed by KanexPro 3-Year Warranty 3. Package Contents 1 x HDMI Extender Transmitter 1 x HDMI Extender Receiver ... - Page 6 RGB, YUV4:4:4, YUV 4:2:2 Color Space Color Depth 8-bit HDMI Audio Formats LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby (Pass-through) True HD, DTS-HD Master Audio, Dolby Atmos, DTS:X Human body model — ±8kV (air-gap discharge) & ±4kV (contact ESD Protection discharge) Connections...
-
Page 7: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Transmitter 1. Power: System power indicator. 2.DC 24V: Connect 24V/1A adaptor to AC wall outlet for power supply. 3.HDBaseT Out: Standard HDBaseT output port. Connect HDBaseT receiver with a UTP cable following the standard of direct interconnection method. - Page 8 • Flashing: The Transmitter and Receiver are in poor connections status. • Dark: The Transmitter and Receiver are not connected. 10.Data Signal Indicator Lamp • Illuminate: HDMI signal with HDCP. • Flashing: HDMI signal without HDCP. • Dark: No HDMI signal. 5.2 Receiver 1.
- Page 9 6. IR Out: Channel 2 IR Transmitter. Connect to an IR emitter cable. 7. RS-232: Phoenix jack provide Serial port control signal from a. transmitter to receiver. 8. Connection Signal Indicator Lamp • Illuminate: The Transmitter and Receiver are in good connections status.
- Page 10 • Description 2 Bi-directional Infrared Control Application Example • Description 3 Bidirectional RS232 control Application Example 10 / 13...
-
Page 11: Connection Diagram
6. Simple Connection Diagram 11 / 13... -
Page 12: Warranty Information
B. CUSTOMER REMEDIES KanexPro’s entire liability and Customer’s exclusive remedy shall be, at KanexPro option, either return of the price paid for the product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to KanexPro with a copy of customers’ receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. - Page 13 1405 Pioneer Street Brea, CA 92821 www.kanexpro.com 13 / 13...
