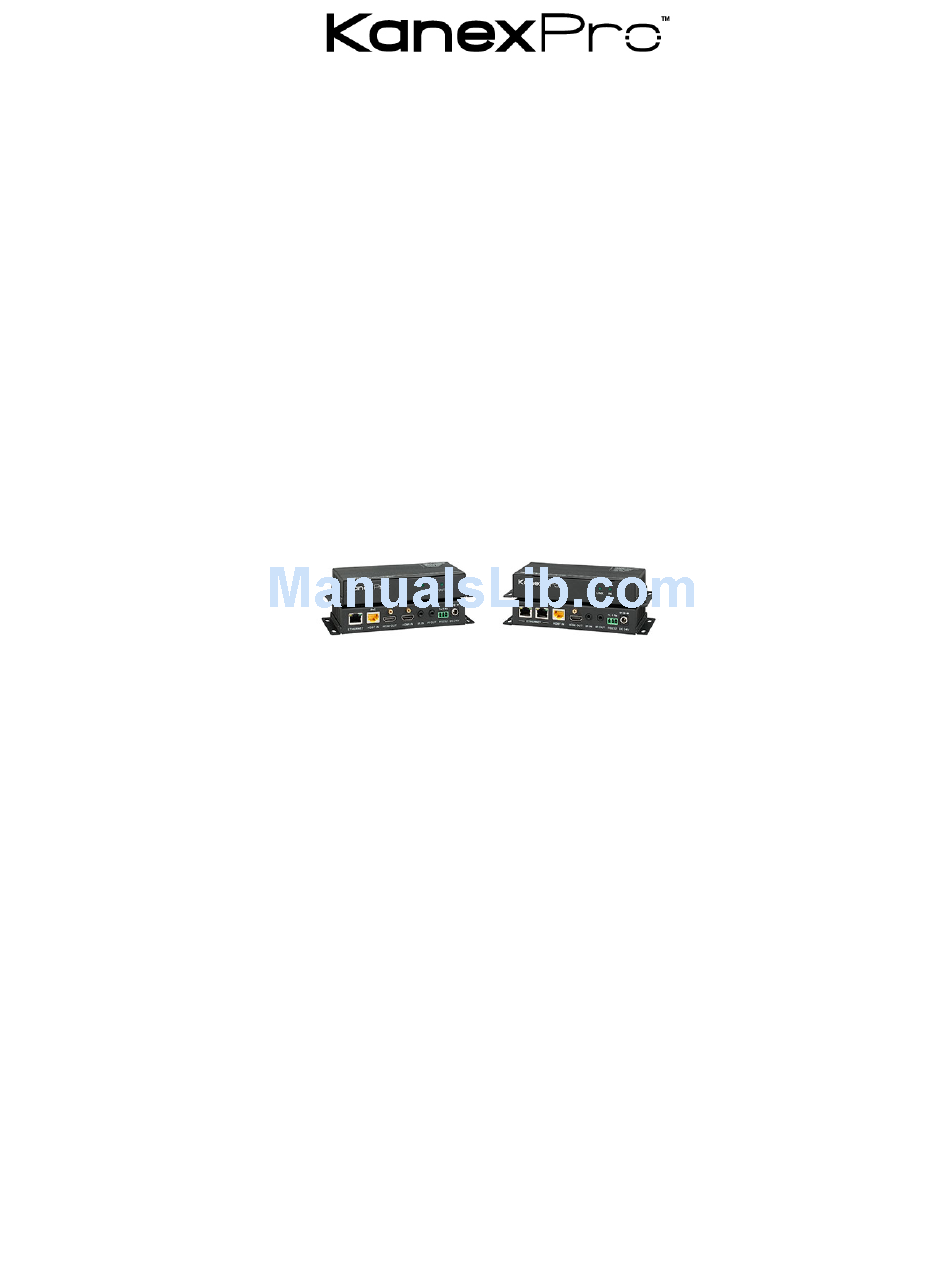

- Page 1 HDBaseT100 Meter - HDMI® Extender w/ Power over Ethernet HDMI/IR/RS232/Ethernet Twisted Pair Over Single Cable All Rights Reserved by KanexPro Version: HDBaseT Pro Extender_2014V2.0...
- Page 2 HDBASE100POEL Extender NOTICE: Please read this user manual carefully before using this product. This manual is only for operation instruction only, not for any maintenance usage. The functions described in this version are updated till April 2014. Any changes of functions and parameters since then will be informed separately.
-
Page 3: Table Of Contents
HDBASE100POEL Extender Table of Contents 1. Introduction ........................1 1.1 Introduction to HDBaseT Pro Extender .............. 1 1.2 Features ......................1 1.3 Package Contents ....................1 2. Introduction of Product Appearance ................3 2.1 Product Appearance of HDMI Pro Transmitter ........... 3 ... -
Page 4: Introduction

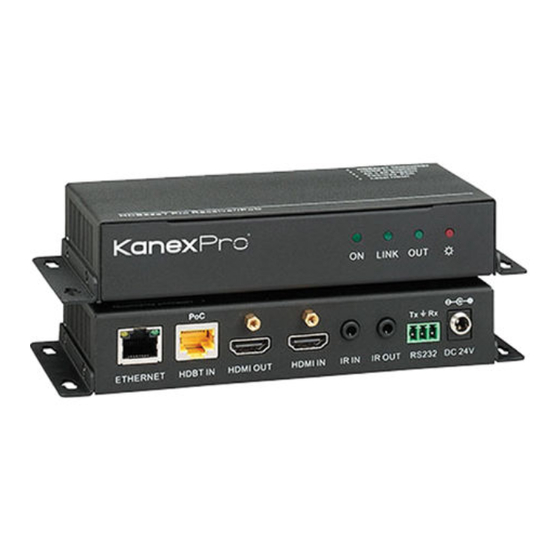

1. Introduction 1.1 Introduction to HDBaseT Pro Extender The KanexPro HDBASE100POEL is a transmitter - receiver set that enables you to routes ultra high – definition signals up to 330 feet (100 meters) over single CAT6 cable using HDBaseT Technology. This extender also features PoE – Power over Ethernet. - Page 5 HDBASE100POEL Extender Ø 2 x IR receiver (TSMP1138 Φ3.5mm plug, not included, buy it separately) Ø 2 x RS232 cable Ø 8 x Screws (3*6mm) Ø 1 x User manual Notes Please confirm if the product and the accessories are all included, if not, please...
-
Page 6: Introduction Of Product Appearance
HDBASE100POEL Extender 2. Introduction of Product Appearance 2.1 Product Appearance of HD Transmitter Figure 1 Interfaces of HDMI Pro Transmitter Name Description ü On: Used to show the working status, blinks when in normal working state, turns off when stop working. -
Page 7: Product Appearance Of Hdmi Pro Receiver
HDBASE100POEL Extender 2.2 Product Appearance of HD Receiver Figure 2 Interfaces of HDMI Pro Receiver Name Description ü Out: When connected with device, which supports HDCP and works normally, this LED will keep on. If the device does not support HDCP, the LED will blink. -
Page 8: Twisted Pair Cable Connection
HDBASE100POEL Extender 2.3 Twisted Pair Cable Connection The twisted pair used in HDBASE100POEL Extender MUST be a straight-through cable. The connectors can be T568A or T568B, but both sides must be the same. TIA/EIA T568B TIA/EIA T568A Cable color Cable color... -
Page 9: System Diagram
HDBASE100POEL Extender 3.2 System Diagram Figure 3 System Diagram 3.3 Connection Procedure Step1. Connect HDMI source (such as DVD player) to HDMI IN port of the transmitter with HDMI cable. Step2. Connect HDBT OUT port of HD Transmitter and HDBT IN port of HD Receiver, with single CAT5e cable. -
Page 10: System Applications
HDBASE100POEL Extender Receiver connecting with power adapter is enough with its POC function). 3.4 System Applications As its good performance in control and transmission, HDBaseT Extender can be widely used in computer realm, monitoring, large screen displaying, conference system, education and bank securities institutions etc. - Page 11 HDBASE100POEL Extender Bandwidth 10.2Gbps Return Lost -30dB@5KHz 0.005%@1KHz HDMI Standard Support HDMI1.4a and HDCP Min. Max. Level 0.3V ~ 1.45Vp-p Impedance 75Ω -20 ~ +70 Temperature 10% ~ 90% Humidity Power Consumption Power Supply Input: 100VAC~240VAC, 50/60Hz; Output: 24VDC 1.25A Dimension (W*H*D) W 5.9"...
-
Page 12: Panel Drawing
HDBASE100POEL Extender 5. Panel Drawing Figure 4 Panel Drawing of HD Transmitter Figure 5 Panel Drawing of HD Receiver... -
Page 13: Troubleshooting & Maintenance
HDBASE100POEL Extender 6. Troubleshooting & Maintenance 1) When there is a color losing or no video signal output, maybe the cables have already broken or haven’t been connected well. 2) When user cannot control the extender by computer through its COM port, please check the COM port number in the software, and make sure the COM port is in good condition and the communication protocol is correct. -
Page 14: Safety Operation Guide
HDBASE100POEL Extender 7. Safety Operation Guide In order to guarantee the reliable operation of the equipment’s and safety of the staff, please abide by the following proceeding in installation, using and maintenance: 1) The system must be earthed properly. Do not use two blades plugs and ensure the alternating power supply ranged from 100v to 240v and from 50Hz to 60Hz. -
Page 15: After-Sales Service
HDBASE100POEL Extender 8. After-sales Service 1) If there appear some problems when running HDBaseT Pro Extender, please check and deal with the problems reference to this user manual. Any transport costs are borne by the users during the warranty. 2) You can email to our after-sales department or make a call, please tell us the following information about your cases. - Page 16 B. CUSTOMER REMEDIES KanexPro’s entire liability and Customer’s exclusive remedy shall be, at KanexPro option, either return of the price paid for the product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to KanexPro with a copy of customers’...
- Page 17 Brea, California KanexPro.com MPN: HDBASE100POEL HDMI & HDBaseT are trademarks or registered trademarks of HDMI Licensing LLC & HDBaseT alliance in the United States and other countries. KanexPro is a registered trademark of Apogee Inc., registered in the U.S.
