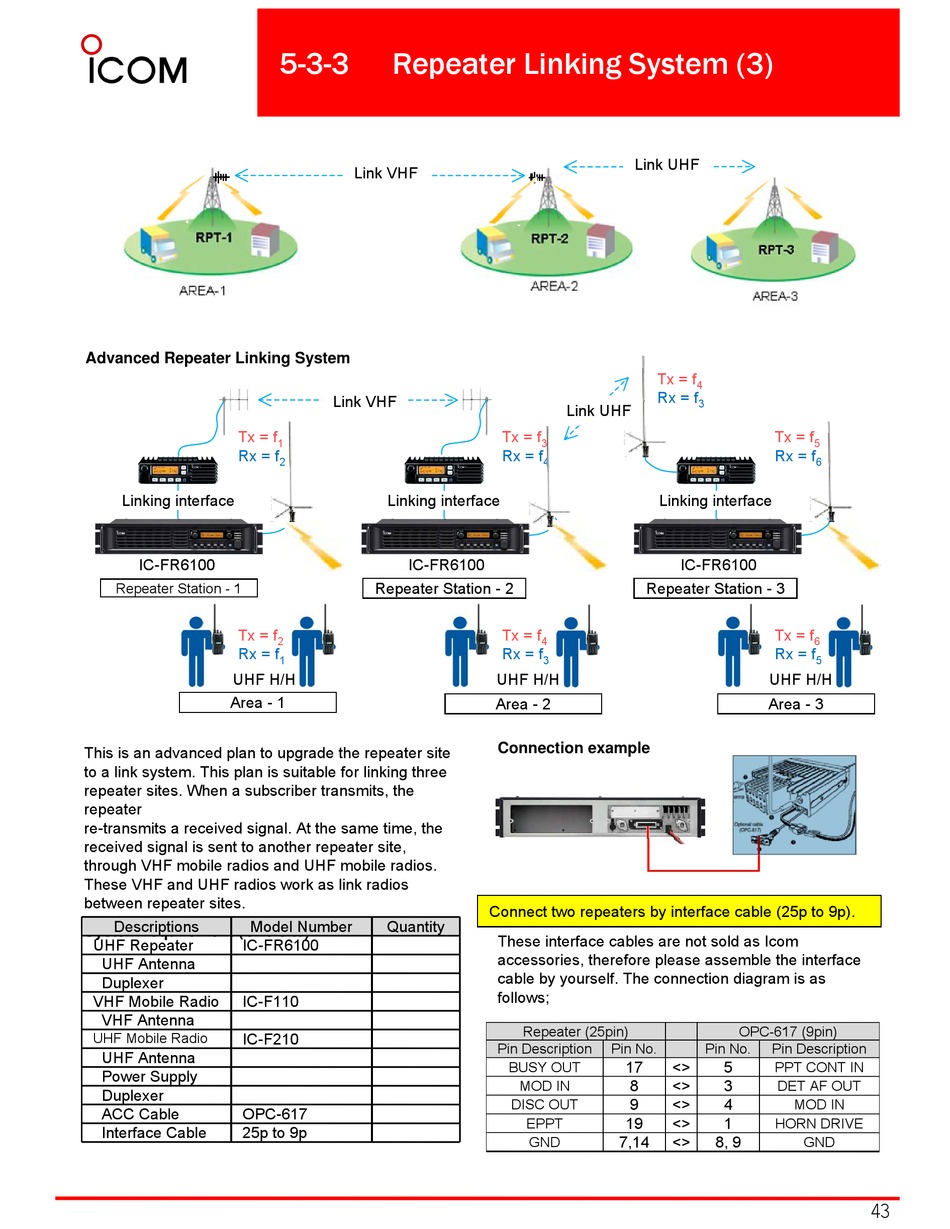

Icom IC-FR5100 Series Handbook page 43

Advanced Repeater Linking System
Tx = f
Rx = f
Linking interface
IC-FR6100
Repeater Station - 1
Tx = f
Rx = f
UHF H/H
Area - 1
This is an advanced plan to upgrade the repeater site
to a link system. This plan is suitable for linking three
repeater sites. When a subscriber transmits, the
repeater
re-transmits a received signal. At the same time, the
received signal is sent to another repeater site,
through VHF mobile radios and UHF mobile radios.
These VHF and UHF radios work as link radios
between repeater sites.
Descriptions Model Number
System requirement (One site)
UHF Repeater IC-FR6100
UHF Antenna
Duplexer
VHF Mobile Radio IC-F110
VHF Antenna
UHF Mobile Radio IC-F210
UHF Antenna
Power Supply
Duplexer
ACC Cable OPC-617
Interface Cable 25p to 9p
5-3-3 Repeater Linking System (3)
Link VHF
Link VHF
1
2
Linking interface
IC-FR6100
Repeater Station - 2
2
1
Quantity
Link UHF
Tx = f
Rx = f
Link UHF
Tx = f
3
Rx = f
4
Linking interface
Repeater Station - 3
Tx = f
4
Rx = f
3
UHF H/H
Area - 2
Connection example
Connect two repeaters by interface cable (25p to 9p).
These interface cables are not sold as Icom
accessories, therefore please assemble the interface
cable by yourself. The connection diagram is as
follows;
Repeater (25pin)
Pin Description Pin No.
17
BUSY OUT
8
MOD IN
9
DISC OUT
19
EPPT
7,14
GND
4
3
Tx = f
5
Rx = f
6
IC-FR6100
Tx = f
6
Rx = f
5
UHF H/H
Area - 3
OPC-617 (9pin)
Pin No. Pin Description
<> 5
PPT CONT IN
<> 3
DET AF OUT
<> 4
MOD IN
<> 1
HORN DRIVE
<> 8, 9
GND
