Fig. 13 Connecting The Electronics Box - Funkwerk EGO FLASH Operating Manual

[3] The electronics box line-out must be connected to the car audio line-in. Depending on the car audio line-in
confi guration, one of the following cables is required:
→ Connection cable 0.14 in stereo jack to 0.14 in stereo jack (l = 4.92 ft)
→ Connection cable 0.14 in stereo jack to RCA plug (l = 4.92 ft)
→ Connection cable 0.14 in stereo jack to Mini-ISO (l = 4.92 ft)
[4] The control unit with display must be connected to one of these two ports.
[5] The 14-pin plug of the ISO connecting cable must be connected with the electronics box.
[6] The base plate for the charging cradle may also be connected to the "charger" output socket.

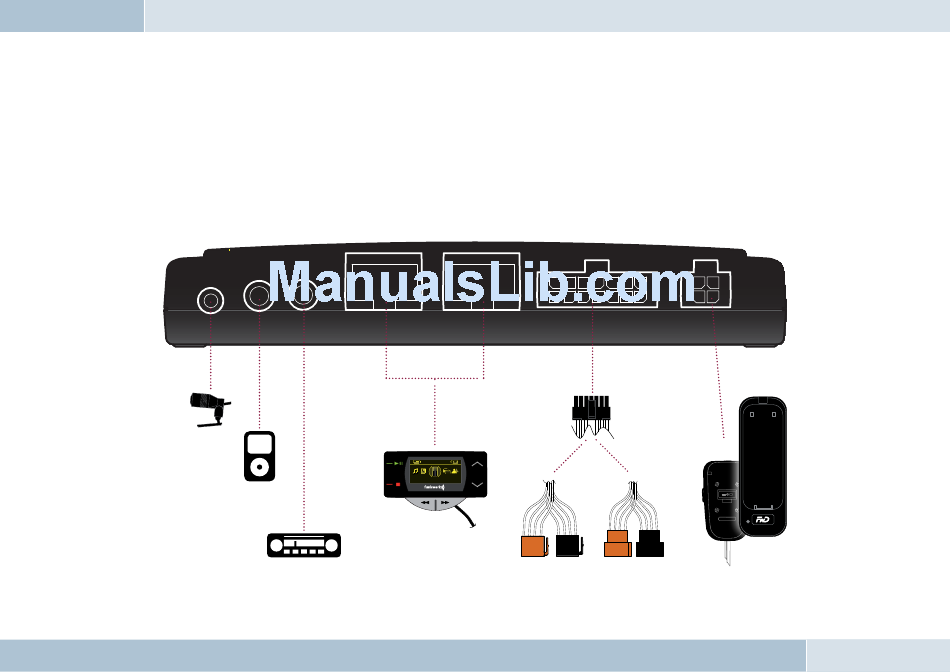

Fig. 13:
Electronics box
connection
[1]
[2]
FWD
Phone book
[4]
[3]
[6]
[5]
|
20 21
