For information on the phone connection options of your car audio
system, please consult the manufacturer's user manual.
q
NOTE: If your car audio system has different phone connection options
from those mentioned here, please consult a qualifi ed professional for
installation of the system. Furthermore, please read the section with
information on connecting the mute lead of the ISO connection cable,
"6.5.1 Checking the mute input".
EGO FLASH

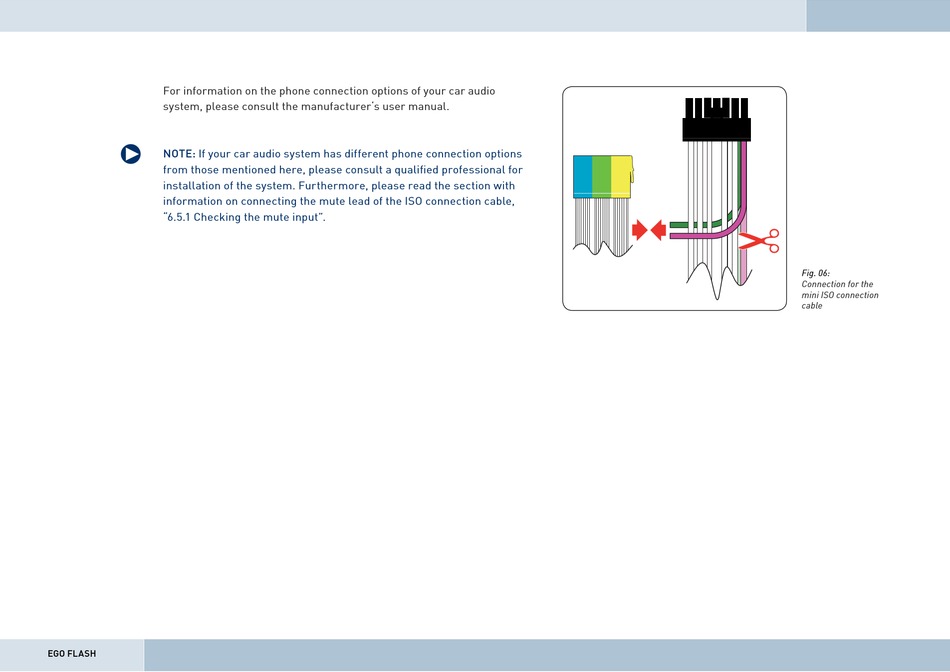

Fig. 06:
Connection for the
mini ISO connection
cable
