Fig. 08 Type-Dependent Pin Allocation; Fig. 09 Plug Wiring Scheme; Fig. 10 Connection System - Funkwerk EGO FLASH Operating Manual

Hide thumbs Also See for EGO FLASH:
Table of Contents

Advertisement

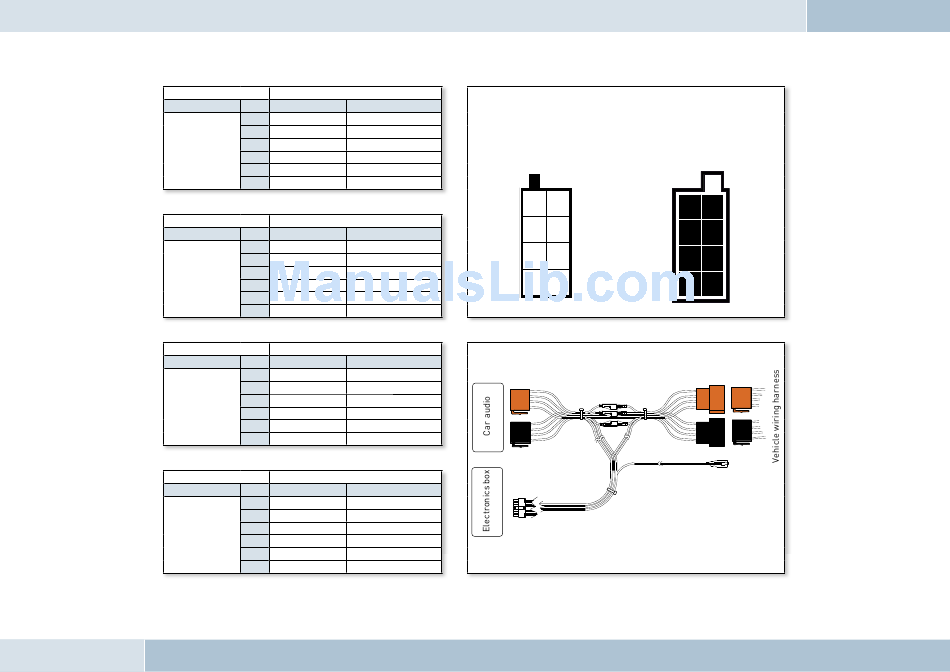

Fig. 08:
Type-
Radio model
dependent
pin allocation
Audi,
Volkswagen,
Grundig
Radio model
Ford,
Mercedes,
Porsche,
Becker
Radio model
Blaupunkt
Radio model
Philips
EGO FLASH
Socket contact housing
Pin
Wire colour
Function
1
2
Mute
3
4
blue
Ignition (15)
7
red
Permanent positive (30)
8
brown
Ground (31)
Socket contact housing
Pin
Wire colour
Function
1
2
3
Mute
4
red
Permanent positive (30)
7
blue
Ignition (15)
8
brown
Ground (31)
Socket contact housing
Pin
Wire colour
Function
1
2
Mute
3
4
red
Permanent positive (30)
7
blue
Ignition (15)
8
brown
Ground (31)
Socket contact housing
Pin
Wire colour
Function
1
Mute
2
3
4
red
Permanent positive (30)
7
blue
Ignition (15)
8
brown
Ground (31)
Wiring of power supply connectors
Socket wiring from
Plug wiring from
the rear (see table)
2 1
4 3
6 5
8 7
the rear
1 2
3 4
5 6
7 8
Fig. 09:
Plug wiring scheme
Fig. 10:
Connection system
