gofanco HDMIExtSplit Manual page 6

Reset

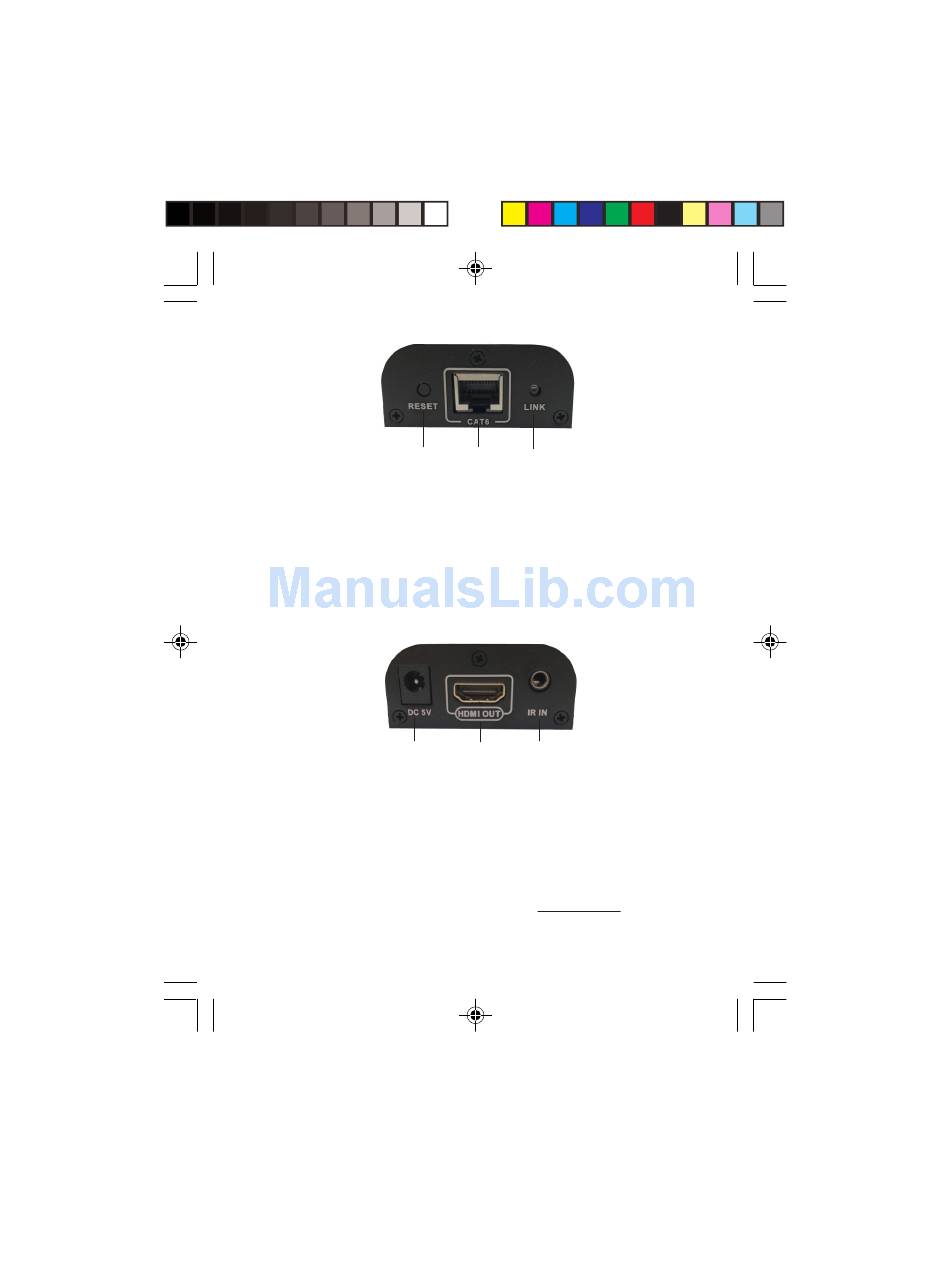

Figure 3: Receiver (RX) - RJ45 Input
• Reset: Press to reset if HDMI Extender doesn't work
properly
• RJ45: Link to the Transmitter's RJ45 via a Cat5e/6 cable
• Link LED: Blinks when powered on. ON when the Cat5e/
6 cable is connected/linked properly between the
Transmitter and Receiver
Power jack
Figure 4: Receiver (RX) - HDMI Display Output
• Power Jack: Connect the included 5V/1A DC power
adapter here
• HDMI Out: Connect your HDMI display here with an
HDMI cable (cable not included)
• IR In: Infrared 3.5mm socket. Plug IR Receiver extension
cable here. See instructions on page 7.
6
Link LED
RJ45
HDMI Out IR In
