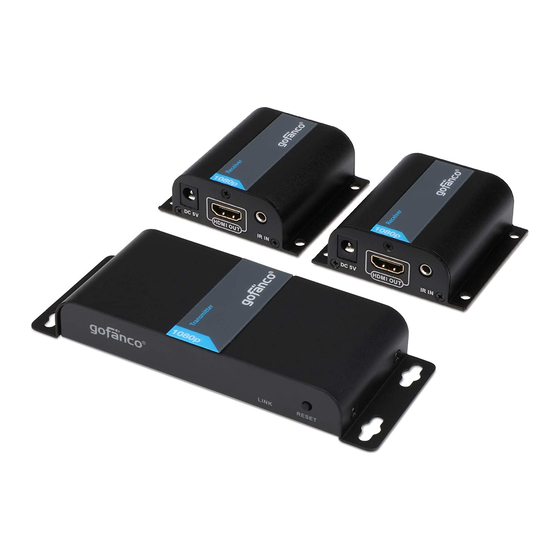

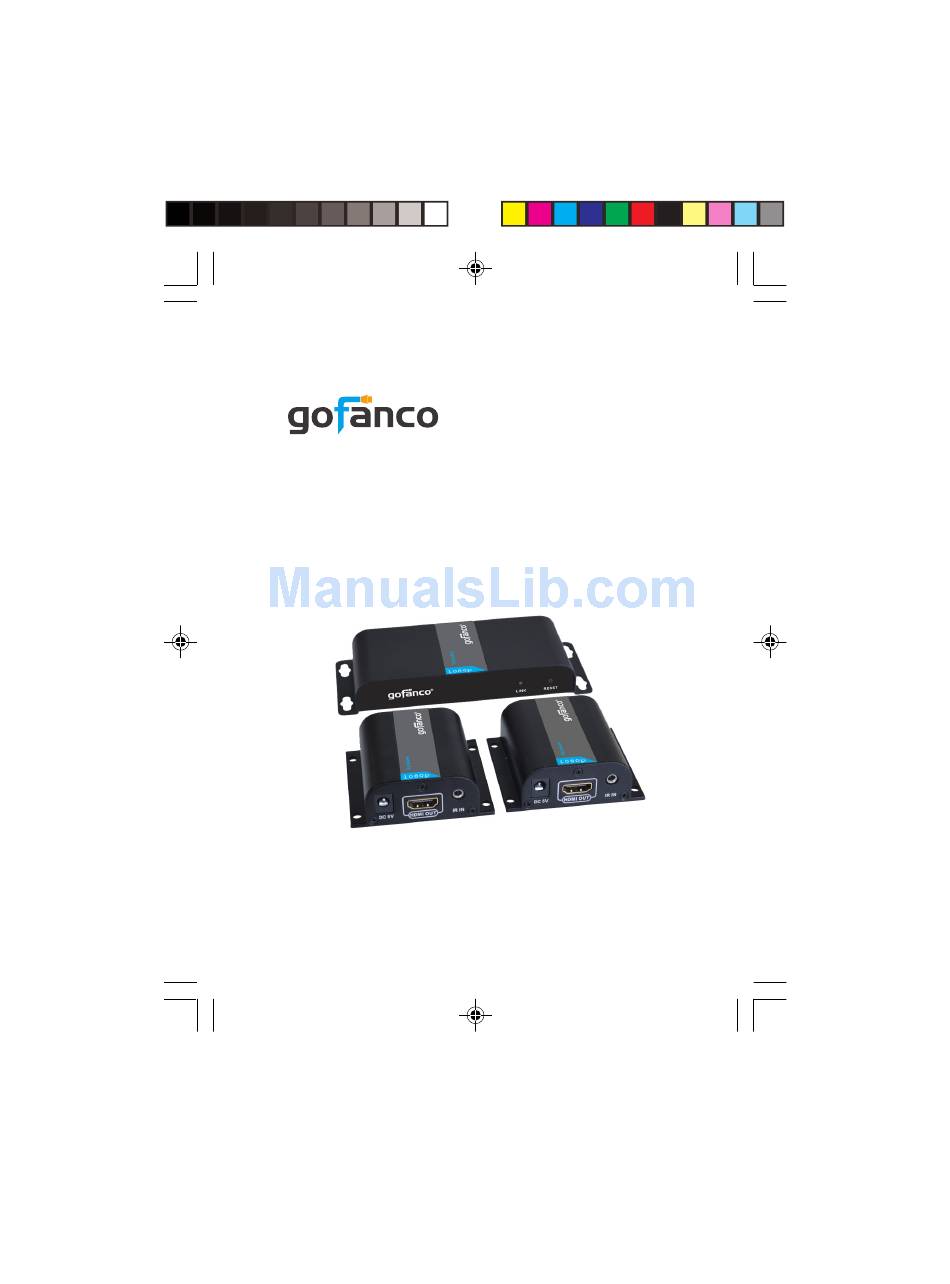

- Page 1 ® 2-Port HDMI Extender/Splitter over CAT5e/6 with IR - 40M P/N: HDMIExtSplit G4-0019A...
- Page 2 Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
-
Page 3: Specifications
Introduction gofanco 2-Port HDMI Extender/Splitter over CAT5e/6 with IR - 40M (part# HDMIExtSplit) extends HDMI signals to two monitors over Cat5e/6 up to 40m with 1080p. Specifications Output Signal HDMI Protocol HDbitT Resolution Up to 1080p Transmission Up to 40m (130ft) - Page 4 Layout RJ45 EDID RJ45 Power Jack HDMI In IR Out Figure 1: Transmitter (TX) • Power Jack: Connect the included 5V/1A DC power adapter here • EDID : The HDMI source device reads EDID information from the TX unit, and outputs it to the RXs. Please refer to the settings below.
- Page 5 • IR Out: Infrared 3.5mm socket. Plug IR Blaster extension cable here. See instructions on page 7. • RJ45 (1): Link to Receiver 1's RJ45 via a Cat5e/6 cable • HDMI In: Connect your HDMI source here with an HDMI cable (cable not included) •...
- Page 6 Reset Link LED RJ45 Figure 3: Receiver (RX) - RJ45 Input • Reset: Press to reset if HDMI Extender doesn't work properly • RJ45: Link to the Transmitter's RJ45 via a Cat5e/6 cable • Link LED: Blinks when powered on. ON when the Cat5e/ 6 cable is connected/linked properly between the Transmitter and Receiver Power jack...
- Page 7 IR Extenders Figure 6: IR Receiver Figure 5: IR Blaster (Connect to Receiver RX) (Connect to Transmitter TX) • IR Blaster: Plug into the Transmitter's IR 3.5 socket to emit IR signals. • IR Receiver: Plug into the Receiver's IR 3.5 socket to receive IR signals from a remote control (for the HDMI device connected to the Transmitter).
-
Page 8: Hardware Installation
Hardware Installation Note: To achieve optimal performance, a CAT6 cable is recommended. 1. Power off all devices including your HDMI source and display. 2. Connect your HDMI source to the Transmitter's HDMI IN connector. 3. Optional: Connect the IR Blaster extension cable to the Transmitter's IR Out. - Page 9 Application Easily extends HDMI signals such as DVD players or computers to two remote displays simultaneously . An ideal solution for exhibitions, video conferences, show centers, and etc.. HDMI IN CAT5e/6 cable CAT5e/6 cable HDMI Out HDMI Out Figure 7 * When using the remote control, please make sure its distance to the IR Receiver extension cable is within 5 meters (16.4 ft) and without obstructions.
- Page 10 FAQ & Solutions Q: There is no picture on the TVs: A: 1) Check whether the correct TV input is selected. 2) Check whether the "Link" LED on TX and RXs are on. If the RX's Link LED blinks, it means the RX doesn't receive signals from the TX.
- Page 11 Blank Page...
- Page 12 ® Thank you for choosing gofanco www.gofanco.com...
