gofanco HDExt50 User Manual

gofanco HDExt50 User Manual

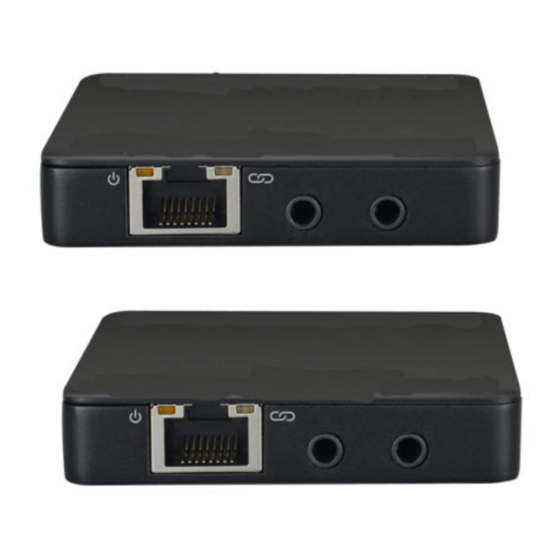

1080p hdmi cat extender with loopout - 50m

Advertisement

Quick Links

1080p HDMI CAT Extender
with Loopout - 50m
User's Guide
P/N: HDExt50
G4-0090A

Advertisement

loading
Need help?

Need help?

Do you have a question about the HDExt50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for gofanco HDExt50

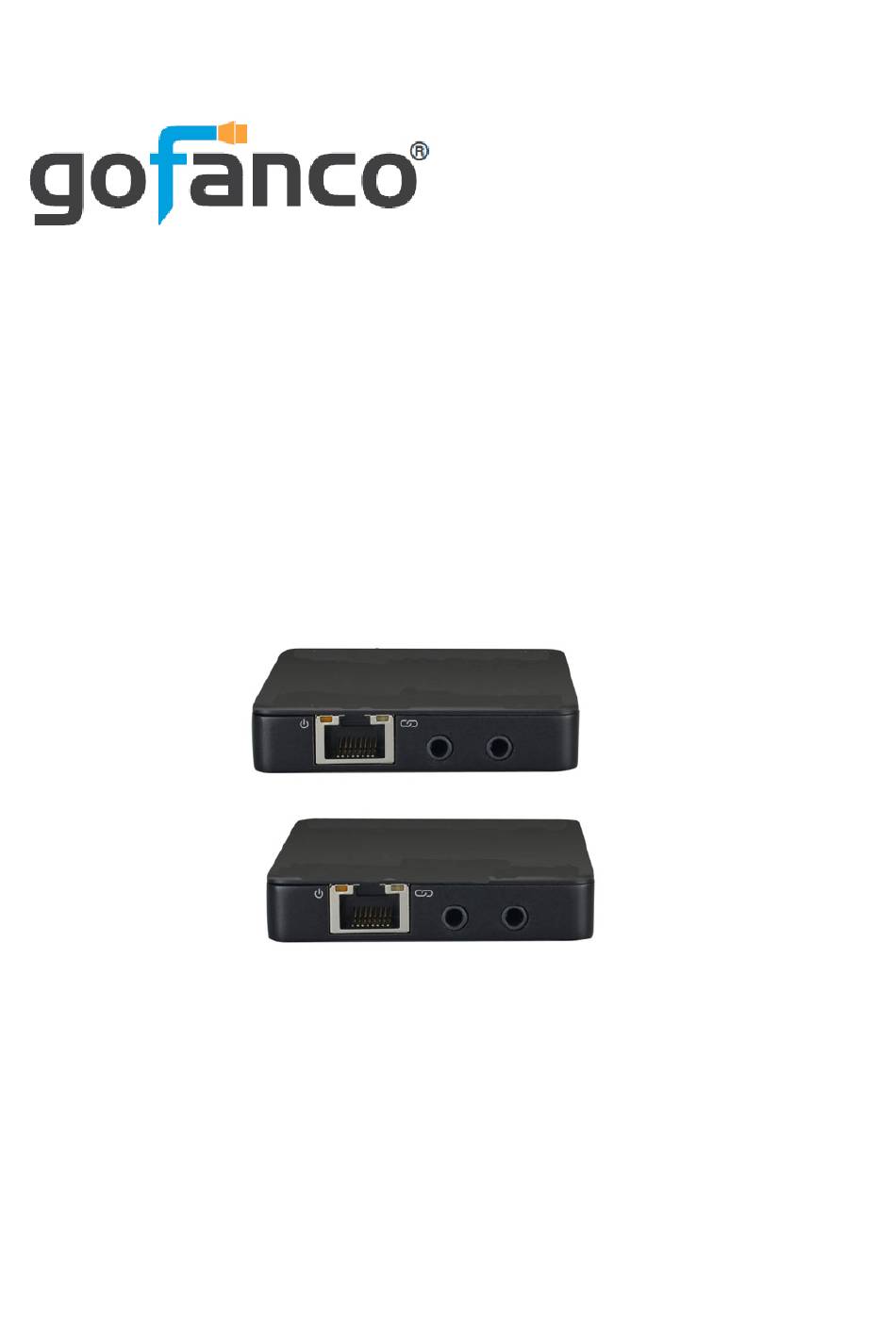

  • Page 1 1080p HDMI CAT Extender with Loopout - 50m User's Guide P/N: HDExt50 G4-0090A...
  • Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
  • Page 3 • Shut off power and make sure environment is safe before installation • Do not plug the HDMI cables and IR cables in/out when the device is in use to avoid cable damage. Make sure they are plugged into the correct ports •...
  • Page 4 Introduction The 1080p HDMI CAT Extender with Loopout - 50m extends high definition 1080p HDMI signals from a source device to a display device up to 164ft (50m) using an economical CAT cable. Features • Transmits 1080p HDMI signals up to 50 meters using economical CAT cabling •...
  • Page 5 Installation Requirements HDMI source device (computer, DVD player, XBOX, PS3, etc) HDMI display device (SDTV/Monitor, HDTV/Monitor, projector, etc.) UTP/STP CAT5e/6 cable following IEEE-568B wiring standard Product Layout Figure 1: Transmitter (TX) Layout RJ45 Out: Connects to the Receiver's RJ45 In using a CAT cable.
  • Page 6 Power Jack: Connects to the included power adapter Reset: Reset the Transmitter Figure 2: Receiver (RX) Layout RJ45 In: Connects to the Transmitter's RJ45 Out using a CAT cable. The green LED lights up when powered on. The yellow LED lights up when linked properly to the Transmitter IR In: Connects to the included IR Receiver cable...
  • Page 7 Hardware Installation Power off all devices including your HDMI source and HDMI display(s). Connect your HDMI source device to the Transmitter's HDMI In connector with an HDMI cable (HDMI cable not included). Optional: Connect a HDMI display to the Transmitter's HDMI Out connector with an HDMI cable (HDMI cable not included) for local monitoring of the HDMI signal.
  • Page 8 Plug the included power adapters into the Transmitter's and Receiver's power jacks, then plug both power adapters into a reliable power source. Power on all connected devices. The HDMI extender is ready for use. Connection Diagram...
  • Page 9 FAQ & Solutions There is no video output or audio and video display is not normal: 1) Press the Receiver's EQ button. 2) Use a shorter network cable. The Receiver's Link LED is flashing: 1) Make sure the network cable follows the IEEE-568B wiring standard.
  • Page 10: Specifications

    Specifications...
  • Page 11 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user’s guide. The pictures on the user’s guide are just for reference, and there may be some slight differences with the actual products.
  • Page 12 Thank you for choosing gofanco www.gofanco.com...
