  • Page 1 ® 8-Port HDMI Extender/ Splitter over CAT5e/6 with Loopout - 40m G4-0052C P/N: HDMIExt8P...
  • Page 2: Important Safety Notices

    Thank you for purchasing from gofanco. Our products aim to meet all our connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
  • Page 3: Table Of Contents

    Table of Contents 1. Introduction ............... 2. Features ................3. Installation Requirements ..........4. Package Contents .............. 5. Product Layout ..............6. Specifications ..............7. Hardware Installation ............. 8. Cat Cable Writing ............... 9. Connection Diagram ............10. IR Extenders ..............11.
  • Page 4: Introduction

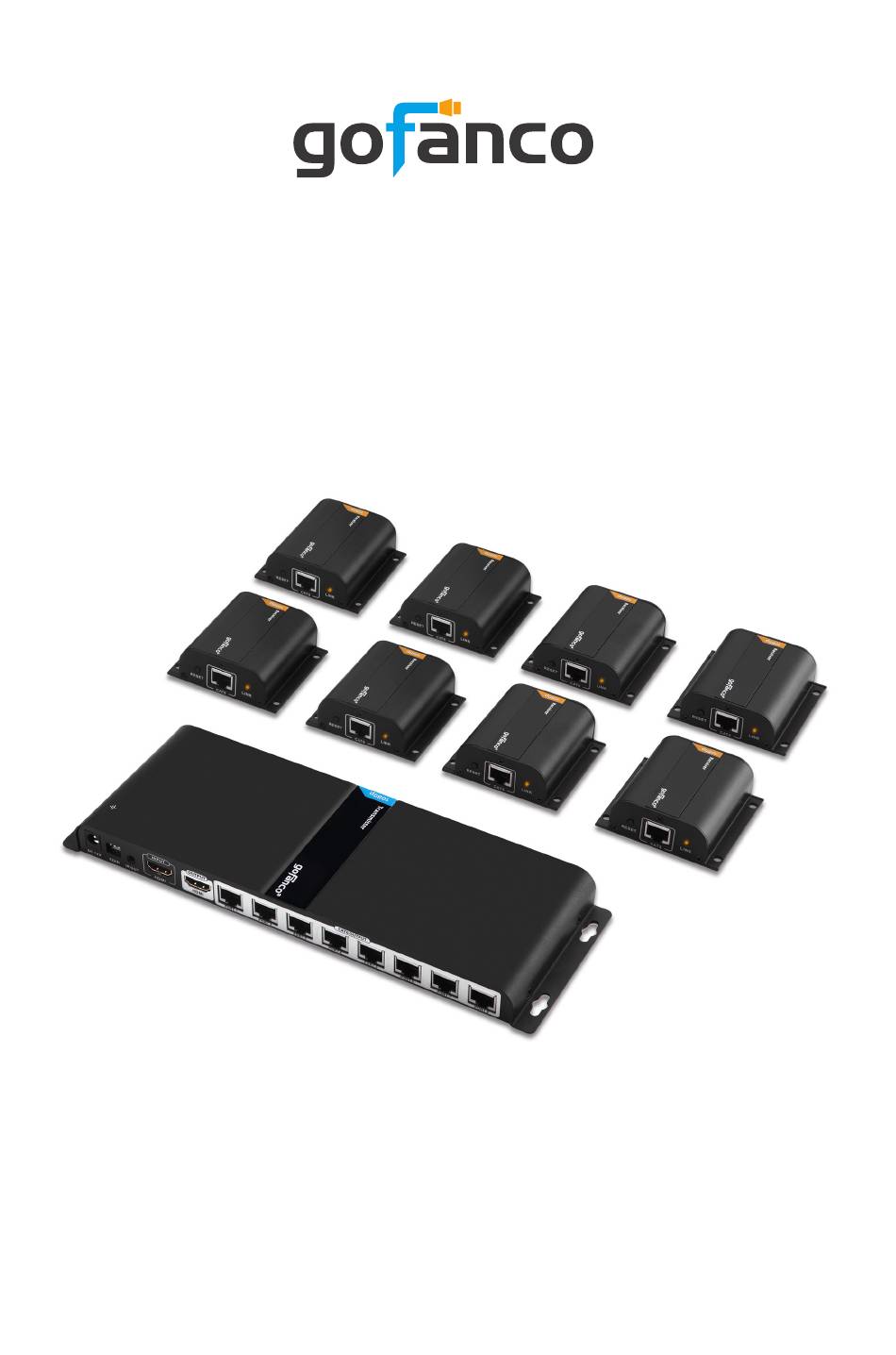

    1. Introduction gofanco 8-Port HDMI Extender/Splitter over CAT5e/6 with Loopout - 40M (part# HDMIExt8P) extends 1080p signals to eight monitors over Cat5e/6 up to 40m. 2. Features • Extends HDMI transmissions up to 40m (130ft) over CAT5e/6/7 • HDCP 1.2 compliant •...
  • Page 5: Product Layout

    5. Product Layout Figure 1: Transmitter (TX) Rear Panel Layout No. Name Function Description Connect the included 12V/2A DC power Power Jack adapter here The HDMI source device reads EDID information from the TX unit, and outputs EDID it to the RXs. Please refer to the settings on Page 6.
  • Page 6 5. Product Layout (Continued) Figure 2: Transmitter (TX) Rear Panel Layout No. Name Function Description Turns red when powered. Turns blue when Link LED there is an HDMI signal detected Press to reset if HDMI Extender doesn’t work Reset properly ®...
  • Page 7 5. Product Layout (Continued) Figure 3: Receiver (RX) - RJ45 Input Name Function Description Press to reset if HDMI Extender doesn’t Reset work properly Link to the Transmitter’s RJ45 Out via a RJ45 In Cat5e/6 cable Blinks when powered on. ON when the Cat5e/6 cable is connected/linked Link LED properly between the Transmitter and...
  • Page 8 5. Product Layout (Continued) Figure 4: Receiver (RX) - HDMI Display Output Name Function Description Connect the included 5V/1A DC power Power Jack adapter here Connect your HDMI display here with an HDMI Out HDMI cable (cable not included) Infrared 3.5mm socket. Plug IR Receiver IR In extension cable here.
  • Page 9: Specifications

    6. Specifications HDMI Signal HDMI 1.3, HDCP 1.2 Input 1x 19-pin HDMI (Female) Output 1x RJ45, 1x HDMI 480i@60Hz, 480p@60Hz, 576i@50Hz, Resolution 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz Transmission distance Up to 130 ft (40m) IR signal 20KHz - 60KHz Operating temperature 32°...
  • Page 10: Hardware Installation

    7. Hardware Installation Note: To achieve optimal performance, CAT6 cable is recommended. 1. Power off all devices including your HDMI source and display. 2. Connect your HDMI source to the Transmitter’s HDMI IN connector. 3. Optional: Connect the IR Blaster extension cable to the Transmitter’s IR Out.
  • Page 11: Cat Cable Writing

    8. Cat Cable Writing We suggest both RJ45 connectors be wired identically using T568B wiring standard for the best performance and compatibility. ® User’s Manual...
  • Page 12: Connection Diagram

    9. Connection Diagram Easily extends HDMI signals such as DVD players or computers to four remote displays simultaneously . An ideal solution for exhibitions, video conferences, show centers, and etc. Figure 5: Connection Diagram Note: When using the remote control, please make sure its distance to the IR Receiver extension cable is within 5 meters (16.4 ft) and without obstructions.
  • Page 13: Ir Extenders

    10. IR Extenders Figure 5: IR Blaster Figure 6: IR Receiver (Connect to Transmitter TX) (Connect to Receiver RX) • IR Blaster: Plug into the Transmitter’s IR 3.5 socket to emit IR signals. • IR Receiver: Plug into the Receiver’s IR 3.5 socket to receive IR signals from a remote control (for the HDMI device connected to the Transmitter).
  • Page 14: Faq & Solutions

    11. FAQ & Solutions Q: There is no picture on the TVs: A: 1. Check whether the correct TV input is selected. 2. Check whether the “Link” LED on TX and RXs are on. If the RX’s Link LED blinks, it means the RX doesn’t receive signals from the TX.
  • Page 15: Disclaimer

    12. Disclaimer The product name and brand name may be registered trade- marks of related manufacturers. TM and ® may be omitted on the user’s guide. The pictures on the user’s guide are just for reference, and there may be some slight differences with the actual products.
  • Page 16 ® Thank you for choosing gofanco www.gofanco.com...
