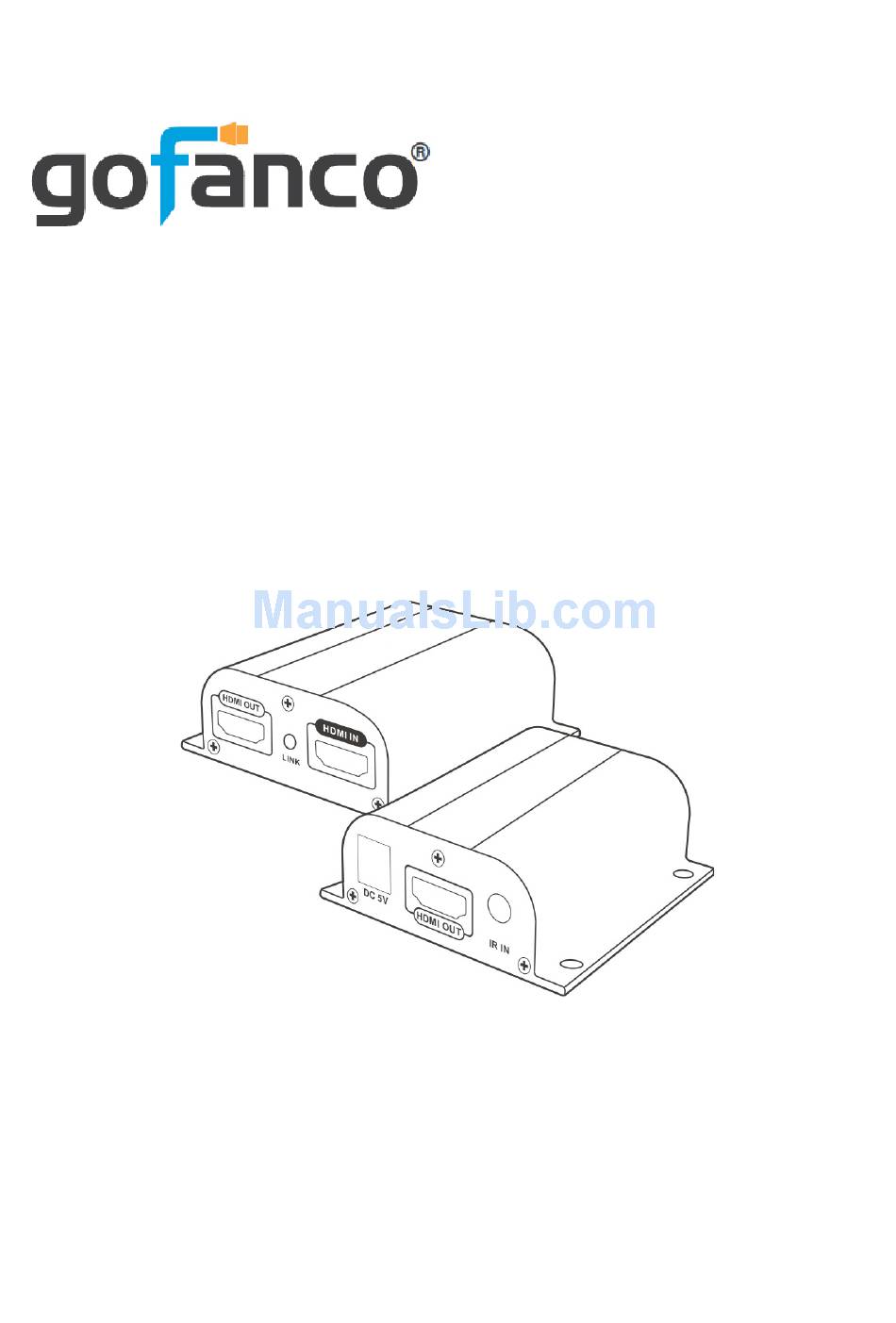

- Page 1 HDMI CAT5e/6 Extender with IR - 50m User's Guide P/N: HDMIExt2 G4-0034A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 • Shut off power and make sure environment is safe before installation • Do not plug the HDMI cables and IR cables in/out when the device is in use to avoid cable damage. Make sure they are plugged into the correct ports •...
-
Page 4: Package Contents

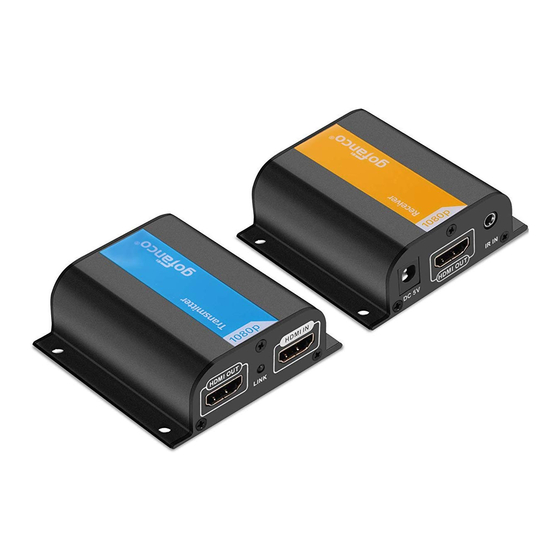

Introduction The HDMI CAT5e/6 Extender with IR - 50m extends high definition 1080p HDMI signals from a source device to a display device up to 50 meters using an economical CAT5e/6 cable. Features • Transmits HDMI signals from source device to display device up to 50 meters using economical CAT5e/6 cabling •... -
Page 5: Product Layout
Installation Requirements HDMI source device (computer, DVD player, XBOX, PS3, etc) HDMI display device (SDTV/Monitor, HDTV/Monitor, projector, etc.) UTP/STP CAT5e/6 cable following IEEE-568B wiring standard Product Layout Figure 1: Transmitter (TX) 1. HDMI Out Connects to a local HDMI display Lights up when HDMI input signal detected 2. -
Page 6: Hardware Installation
Figure 2: Receiver (RX) 1. Reset Button Push the button to reset the receiver Connects to the Transmitter's RJ45 Output 2. RJ45 Input port using a CAT5e/6 cable Lights up when RJ45 from TX detected 3. Link LED Flashes when RJ45 from TX not detected 4. - Page 7 Optional: Connect the IR Blaster Extension Cable to the Transmitter's IR output port. Face the eye towards your HDMI source device's IR window. This connection is needed only if you need to control your HDMI source from the remote location. Plug your CAT5e/6 cable between the Transmitter's RJ45 Output and Receiver's RJ45 Input.
- Page 8 Application IR Blaster HDMI In Extension Cable HDMI Out Transmitter (TX) Display CAT5e/6 Cable IR Receiver Extension Cable Receiver (RX) HDMI Out Display...
- Page 9 FAQ & Solutions There is no video output or audio and video display is not normal: 1) Press the Receiver's reset button to reset the unit. 2) Use a shorter network cable. The Receiver's Link LED is flashing: 1) Make sure the network cable follows the IEEE-568B wiring standard.
-
Page 10: Specifications
Specifications Item Specifications HDMI Compliance 1.4a HDCP Compliance 1.2a Video Bandwidth 225MHz (10.2Gbps) 480i@60Hz, 480p@60Hz, 576i@50Hz, Resolution 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz Audio Support PCM, AC3, DTS Input TMDS Signal 1.2Vp-p Loop-out on TX One HDMI loop-out on TX IR Passback IR Frequency Range 20KHz-60KHz Operating Temperature 32°... - Page 11 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user’s guide. The pictures on the user’s guide are just for reference, and there may be some slight differences with the actual products.
- Page 12 Thank you for choosing gofanco www.gofanco.com...
