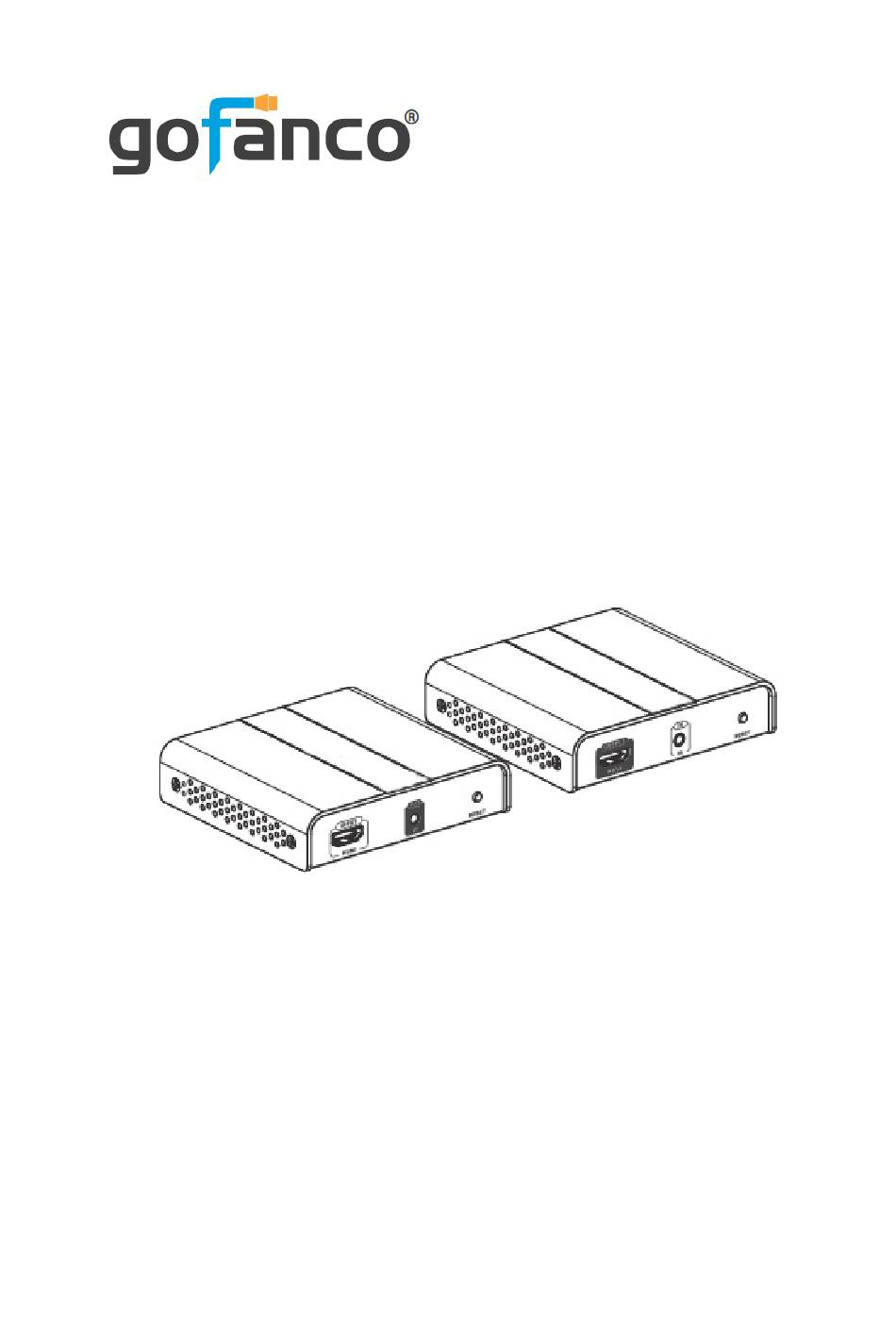

- Page 1 HDMI HDbitT CAT5e/6 Extender 4K - 120m User's Guide P/N:HDbitT4K G4-0053A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User's Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 Extends HDMI signal up to 120 meters over a single • Cat5e/6 cable Supports One-to-One, One-to-Many, and Cascade • configurations Additional Receivers (part # HDbitT4K-RX) sold • separately Supports IR remote control function to control the • source device from long distances...
- Page 4 Product Layout Figure 1: Transmitter (TX) HDMI In: Connect your HDMI source here with an HDMI cable (cable not included) IR Out: Infrared 3.5mm socket. Plug IR Blaster Extension Cable here. See instructions on page 6. Reset: Press to reset if HDMI Extender doesn't work properly Power LED: On when the Transmitter is powered Power Jack: Connect the included power adapter...

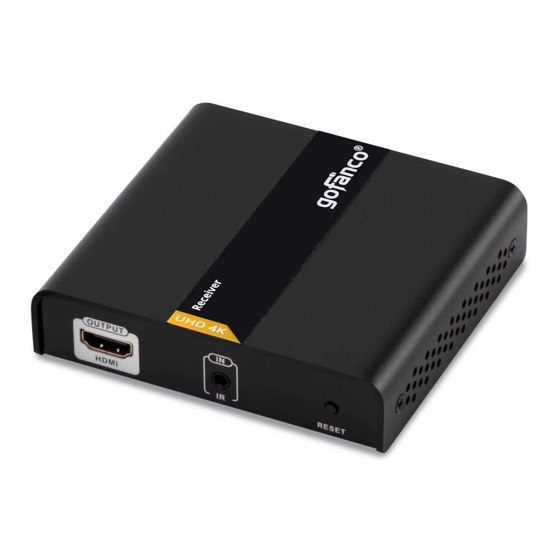

- Page 5 Figure 2: Receiver (RX) HDMI Out: Connect your HDMI display here with an HDMI cable (cable not included) IR In: Infrared 3.5mm socket. Plug IR Receiver Extension Cable here. See instructions on page 6. Reset: Press to reset if HDMI Extender doesn't work properly Power LED: On when the Receiver is powered Power Jack: Connect the included power adapter...
- Page 6 Hardware Installation To achieve optimal performance, Cat6 cable is recommended. Power off all devices including your HDMI source and HDMI display. Connect your HDMI source to the Transmitter's HDMI In connector. Optional: Connect the IR Blaster Extension Cable to the Transmitter's IR Out port. Face the eye towards your HDMI source device's IR window.
-
Page 7: Connection Diagram
One-to-One: Extends HDMI signals up to 120 meters over a single Cat5e/6 cable. Transmitter Receiver One-to-Many: Extend and split using dedicated network router/switch. - One Transmitter (TX) to several Receivers (RX). - Additional Receivers (part # HDbitT4K-RX) sold separately. Receiver Receiver Transmitter Receiver... - Page 8 Cascade: Unlimited extension with dedicated network router/switch.
- Page 9 FAQ & Solutions Q1: The TV displays "Waiting for connection..." on the bottom-right corner: 1. Check whether the power adapter of Transmitter (TX) and Receiver (RX) or Network Router/Switch (if used) is connected. 2. Make sure the network cable (Cat5e/6) is firmly connected between the TX and RX.
-
Page 10: Specifications
Specifications Item Specification Compliance HDMI 2.0, HDCP 2.2 Transmission protocol HDbitT Latency <200ms 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, HDMI input resolution 1080i@50/60Hz, 1080p@50/60Hz, 4Kx2K@24/25/30/60Hz HDMI output resolution 1080p@60Hz, 4Kx2K@30/60Hz Transmission distance Up to 120m (394ft) IR signal 20KHz - 60KHz Operating temperature 32 - 121 F (0 - 50 C) Power adapter... - Page 11 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user's guide. The pictures on the user's guide are just for reference, and there may be some slight differences with the acutal products.
- Page 12 Thank you for choosing gofanco www.gofanco.com...
